LM13700N

LM13700N Overview

Product belongs to the LM13700 series. This product is categorized as Transconductance Amplifiers Tube is the packaging method for this product Through Hole Mounting-Style Bipolar is the technology used. Number of channels: 2 Channel The amplifier is of Transconductance type. Power-off control: No Shutdown Power-off control: 570 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 2.6 mA is 92 nA. Maximum supply voltage of 36 V Minimum supply voltage is 10 V MDIP-16 Input bias current of 8 uA at +/- 15 V The 4 mV. The CMRR-Common-Mode-Rejection-Ratio is 80 dB.

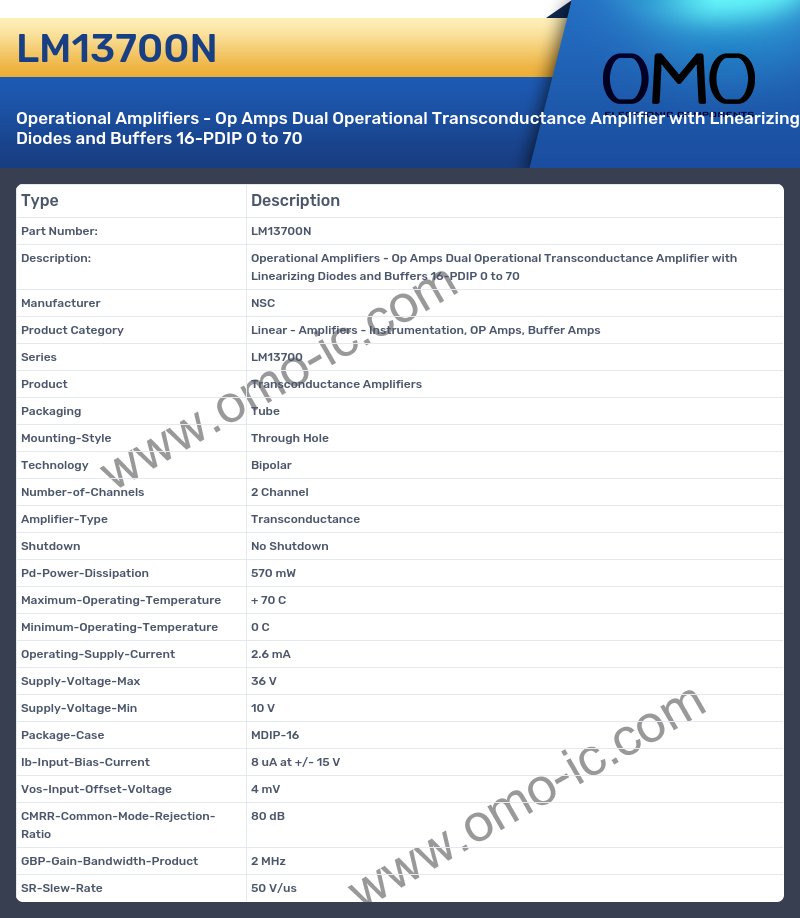

LM13700N Image

LM13700N Specifications

• Manufacturer NSC
• Product Category Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
• Series LM13700
• Product Transconductance Amplifiers
• Packaging Tube
• Mounting-Style Through Hole
• Technology Bipolar
• Number-of-Channels 2 Channel
• Amplifier-Type Transconductance
• Shutdown No Shutdown
• Pd-Power-Dissipation 570 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 2.6 mA
• Supply-Voltage-Max 36 V
• Supply-Voltage-Min 10 V
• Package-Case MDIP-16
• Ib-Input-Bias-Current 8 uA at +/- 15 V
• Vos-Input-Offset-Voltage 4 mV
• CMRR-Common-Mode-Rejection-Ratio 80 dB
• GBP-Gain-Bandwidth-Product 2 MHz
• SR-Slew-Rate 50 V/us
