LM139D

LM139D Overview

Product belongs to the LM139 series. This product is categorized as Analog Comparators Type: Differential Tube Alternate Packaging is the packaging method for this product Weight of 0.004515 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Output-Type: CMOS, MOS, Open-Collector, TTL Number of channels: 4 Channel Supplier device package: 14-SOIC Voltage supply range: 2 V ~ 30 V, ±1 V ~ 15 V 4 element 2mA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 300 ns response time Power-off control: No Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C 500 uA is 92 nA. Maximum supply voltage of 36 V Minimum supply voltage is 2 V Differential comparator type Input bias current of - 100 nA The 5 mV. The 100 nA. 6 mA

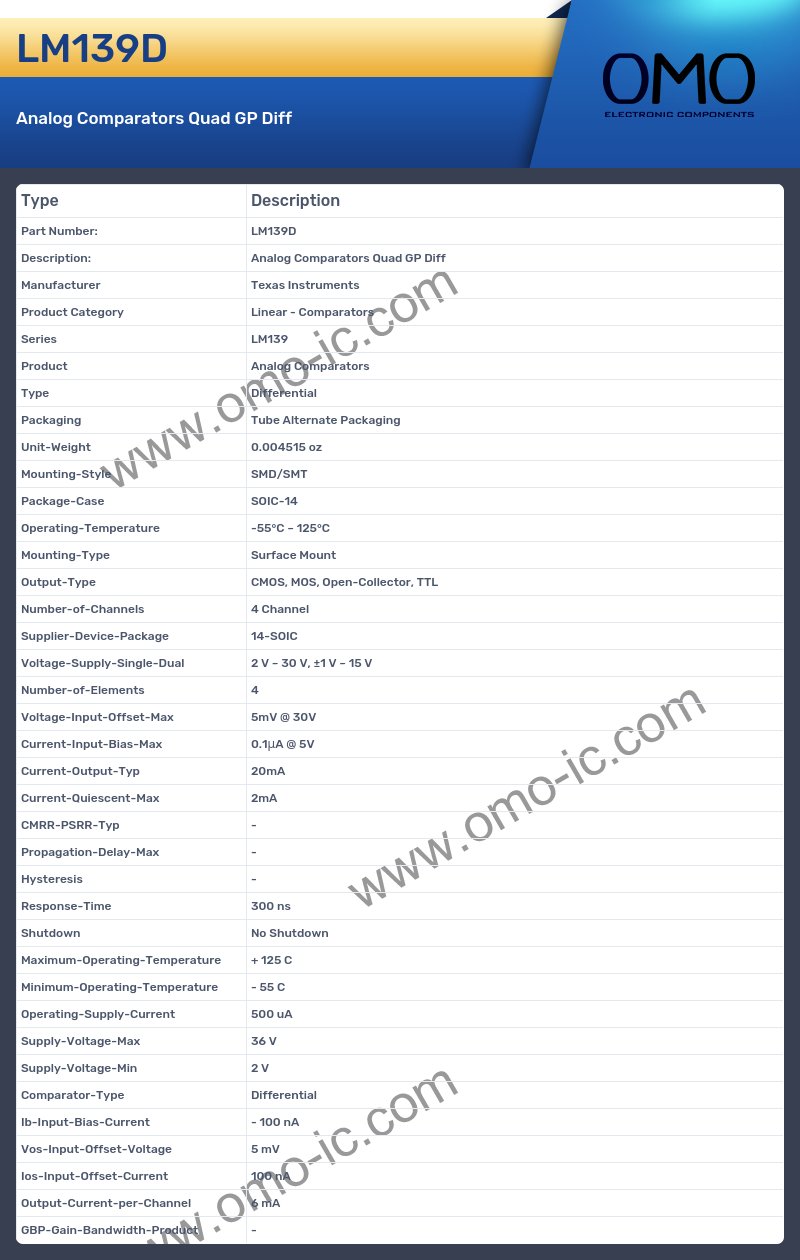

LM139D Image

LM139D Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Comparators
• Series LM139
• Product Analog Comparators
• Type Differential
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004515 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type CMOS, MOS, Open-Collector, TTL
• Number-of-Channels 4 Channel
• Supplier-Device-Package 14-SOIC
• Voltage-Supply-Single-Dual 2 V ~ 30 V, ±1 V ~ 15 V
• Number-of-Elements 4
• Voltage-Input-Offset-Max 5mV @ 30V
• Current-Input-Bias-Max 0.1μA @ 5V
• Current-Output-Typ 20mA
• Current-Quiescent-Max 2mA
• CMRR-PSRR-Typ -
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 300 ns
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Current 500 uA
• Supply-Voltage-Max 36 V
• Supply-Voltage-Min 2 V
• Comparator-Type Differential
• Ib-Input-Bias-Current - 100 nA
• Vos-Input-Offset-Voltage 5 mV
• Ios-Input-Offset-Current 100 nA
• Output-Current-per-Channel 6 mA
• GBP-Gain-Bandwidth-Product -
