LM2696EVAL

LM2696EVAL Overview

Product belongs to the - series. This product is categorized as Evaluation Modules Type: Voltage Regulators - Switching Regulators Bulk is the packaging method for this product The DC/DC, Step Down is the Main-Purpose. 6 V ~ 24 V voltage input This product features 'Frequency-Switching' at 250kHz for optimal performance. Output voltage: 2.5V Buck regulator topology - Included item: Board. IC package type: LM2696 Board type: Fully Populated. The product has 1, Non-Isolated outputs. Output voltage: 2.5 V This product is an 3 A constant on time buck regulator evaluation module. This tool is designed for the LM2696. Input Voltage Range: 6 V to 24 V Output current: 0 A to 3 A

LM2696EVAL Image

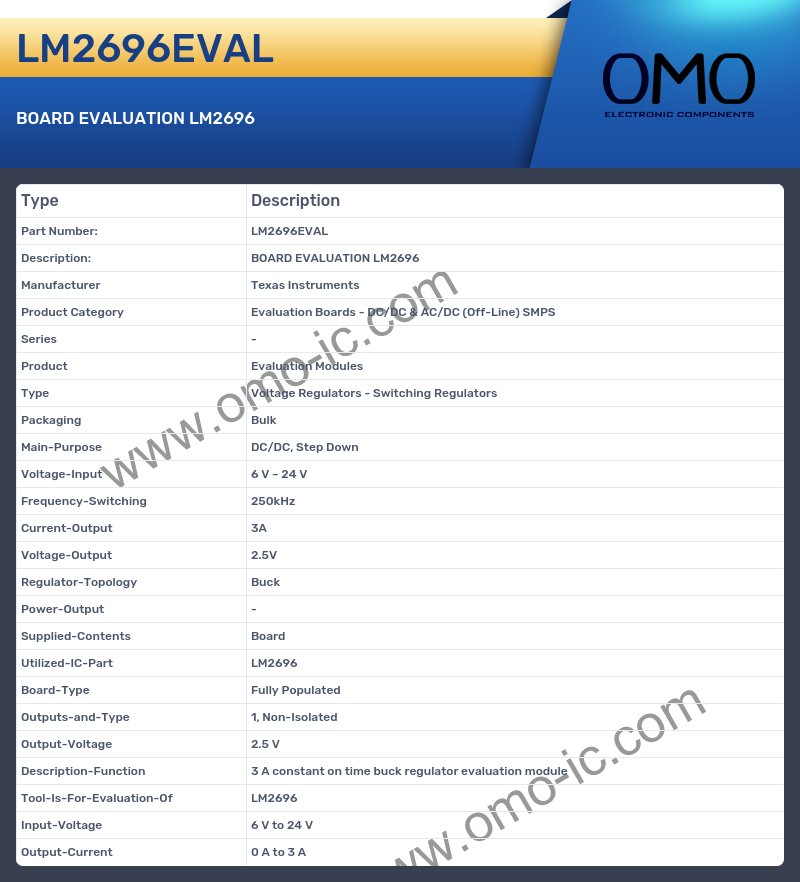

LM2696EVAL Specifications

• Manufacturer Texas Instruments
• Product Category Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
• Series -
• Product Evaluation Modules
• Type Voltage Regulators - Switching Regulators
• Packaging Bulk
• Main-Purpose DC/DC, Step Down
• Voltage-Input 6 V ~ 24 V
• Frequency-Switching 250kHz
• Current-Output 3A
• Voltage-Output 2.5V
• Regulator-Topology Buck
• Power-Output -
• Supplied-Contents Board
• Utilized-IC-Part LM2696
• Board-Type Fully Populated
• Outputs-and-Type 1, Non-Isolated
• Output-Voltage 2.5 V
• Description-Function 3 A constant on time buck regulator evaluation module
• Tool-Is-For-Evaluation-Of LM2696
• Input-Voltage 6 V to 24 V
• Output-Current 0 A to 3 A
