LM301AD

LM301AD Overview

Product belongs to the LM301 series. This product is categorized as Operational Amplifiers Tube is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style Bipolar is the technology used. Number of channels: 1 Channel The amplifier is of General Purpose Amplifier type. Power-off control: No Shutdown Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 3 mA is 92 nA. SO-8 Input bias current of 250 nA The 7.5 mV. 30 mA The CMRR-Common-Mode-Rejection-Ratio is 70 dB. The 25 nV/sqrt Hz of this product is 110 nV/sqrt Hz. Maximum dual supply voltage: +/- 22 V Minimum dual supply voltage of +/- 5 V

LM301AD Image

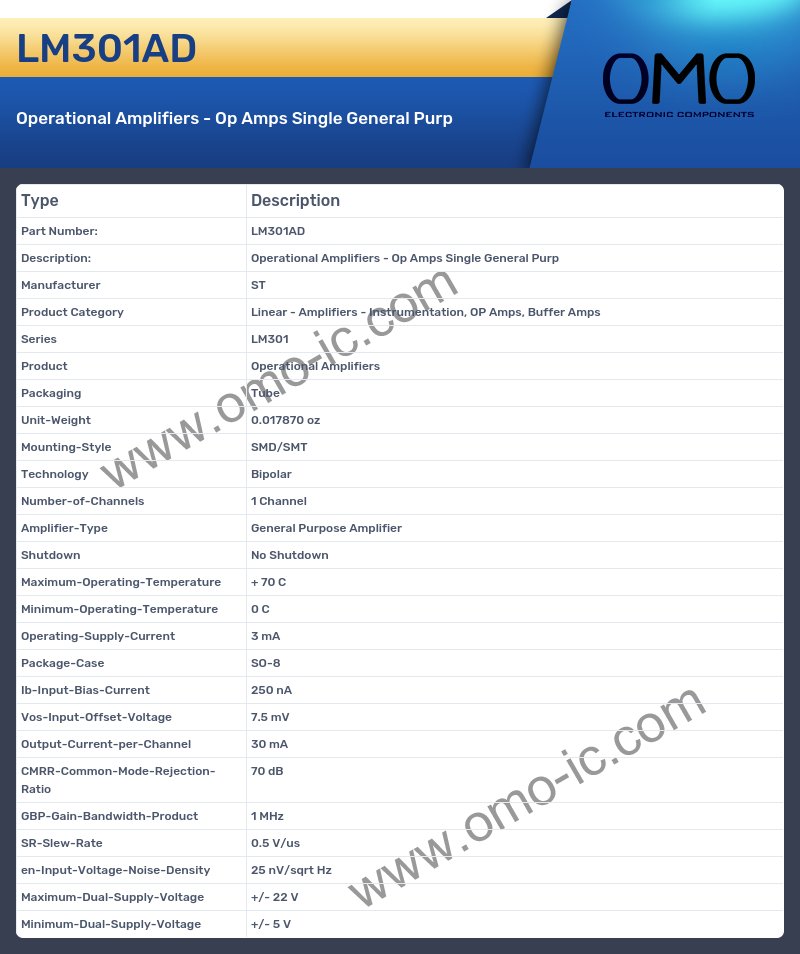

LM301AD Specifications

• Manufacturer ST
• Product Category Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
• Series LM301
• Product Operational Amplifiers
• Packaging Tube
• Unit-Weight 0.017870 oz
• Mounting-Style SMD/SMT
• Technology Bipolar
• Number-of-Channels 1 Channel
• Amplifier-Type General Purpose Amplifier
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 3 mA
• Package-Case SO-8
• Ib-Input-Bias-Current 250 nA
• Vos-Input-Offset-Voltage 7.5 mV
• Output-Current-per-Channel 30 mA
• CMRR-Common-Mode-Rejection-Ratio 70 dB
• GBP-Gain-Bandwidth-Product 1 MHz
• SR-Slew-Rate 0.5 V/us
• en-Input-Voltage-Noise-Density 25 nV/sqrt Hz
• Maximum-Dual-Supply-Voltage +/- 22 V
• Minimum-Dual-Supply-Voltage +/- 5 V
