LM3S1133-IBZ50-A2T Overview

Product belongs to the StellarisR ARMR CortexR-M3S 1000 series. This product is categorized as MCU Tape & Reel (TR) Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Trade name: Stelaris. nFBGA-108 Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: 108-BGA (10x10) This product has 44 I/O ports for versatile connectivity. Operating frequency: 50MHz Program memory type: FLASH I2C, IrDA, Microwire, SPI, SSI, UART/USART interface Supply Voltage: 2.25 V ~ 2.75 V 32-Bit architecture Internal oscillator type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2.5 V 3.3 V supply voltage for reliable performance. I2C SPI SSI UART interface type Processor Core: ARM Cortex M3 This product is powered by the Stellaris Processor-Series, providing high performance and efficiency. The 32 bit. Maximum supply voltage of 2.75 V 3.6 V Minimum supply voltage is 2.25 V 2.3 V 3 V Maximum clock frequency of 50 MHz Number of ADC Channels: 2 This product has 44 I/O connections. This product has a 16 kB data RAM size, providing ample storage for complex applications. This product features 6 Timer number of timers and counters. This product features a high-precision 10 bit, ensuring accurate data conversion.

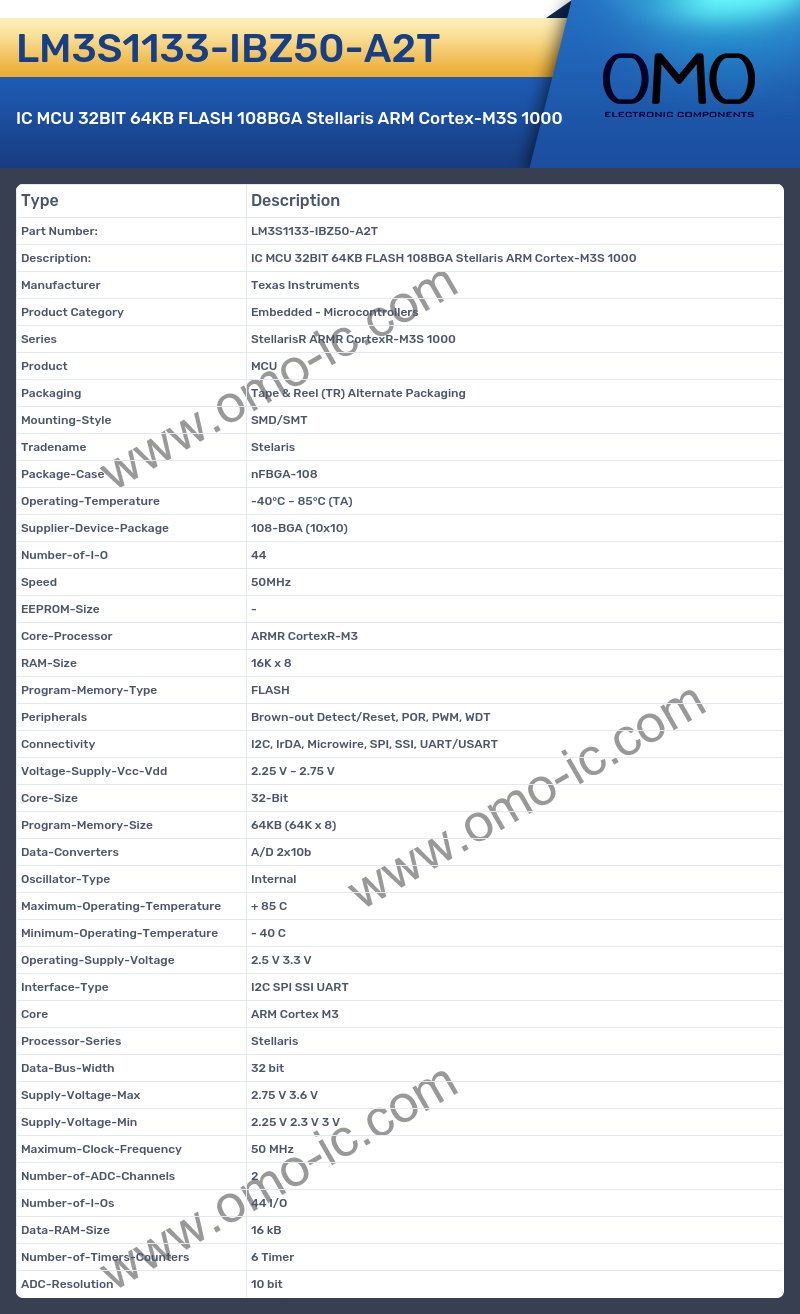

LM3S1133-IBZ50-A2T Image

LM3S1133-IBZ50-A2T Specifications

• Manufacturer Texas Instruments
• Product Category Embedded - Microcontrollers
• Series StellarisR ARMR CortexR-M3S 1000
• Product MCU
• Packaging Tape & Reel (TR) Alternate Packaging
• Mounting-Style SMD/SMT
• Tradename Stelaris
• Package-Case nFBGA-108
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package 108-BGA (10x10)
• Number-of-I-O 44
• Speed 50MHz
• EEPROM-Size -
• Core-Processor ARMR CortexR-M3
• RAM-Size 16K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity I2C, IrDA, Microwire, SPI, SSI, UART/USART
• Voltage-Supply-Vcc-Vdd 2.25 V ~ 2.75 V
• Core-Size 32-Bit
• Program-Memory-Size 64KB (64K x 8)
• Data-Converters A/D 2x10b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.5 V 3.3 V
• Interface-Type I2C SPI SSI UART
• Core ARM Cortex M3
• Processor-Series Stellaris
• Data-Bus-Width 32 bit
• Supply-Voltage-Max 2.75 V 3.6 V
• Supply-Voltage-Min 2.25 V 2.3 V 3 V
• Maximum-Clock-Frequency 50 MHz
• Number-of-ADC-Channels 2
• Number-of-I-Os 44 I/O
• Data-RAM-Size 16 kB
• Number-of-Timers-Counters 6 Timer
• ADC-Resolution 10 bit
