LM5000-3MTC

LM5000-3MTC Overview

Product belongs to the LM5000 series. Type: Step Up Tube Alternate Packaging is the packaging method for this product Weight of 0.006102 oz SMD/SMT Mounting-Style Wide - 40 C to + 125 C operating temperature range for diverse applications TSSOP-16 Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Up, Step-Up/Step-Down. Supplier device package: 16-TSSOP Number-of-Outputs: 1 Topology: Boost, Flyback, Forward Converter feedback This product features 'Frequency-Switching' at 300kHz, 700kHz for optimal performance. The Positive. Minimum fixed output voltage is 3.1V . The value of No is included as a product attribute. The minimum input voltage is 3.1V. The 40V. Power-off control: Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.295 V 5 mA is 92 nA. Input Voltage Range: 3.1 V to 40 V Maximum Input Voltage: 40 V Output current: 2 A Switching frequency is 300 kHz 700 kHz The product's 3.1 V is 5.1 V. The LM5000EVAL. Minimum supply voltage is 3.1 V

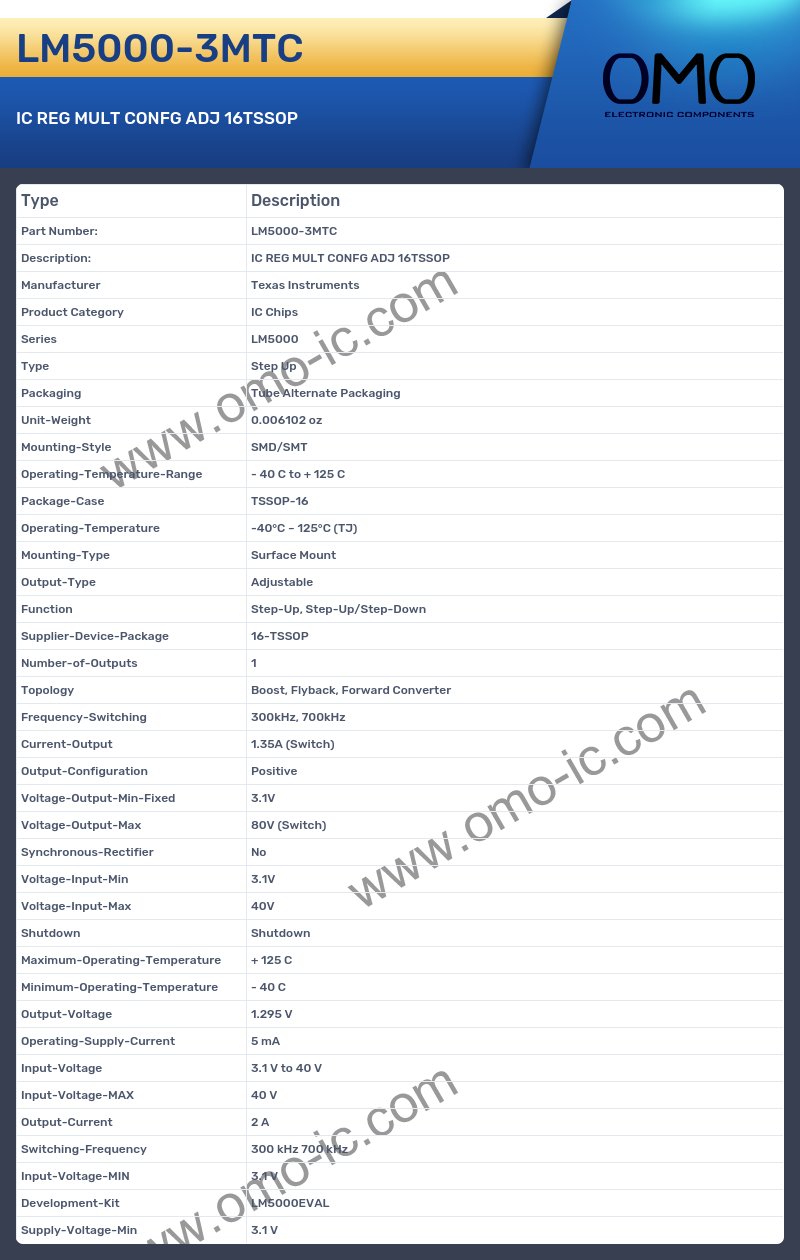

LM5000-3MTC Image

LM5000-3MTC Specifications

• Manufacturer Texas Instruments
• Product Category IC Chips
• Series LM5000
• Type Step Up
• Packaging Tube Alternate Packaging
• Unit-Weight 0.006102 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 125 C
• Package-Case TSSOP-16
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Up, Step-Up/Step-Down
• Supplier-Device-Package 16-TSSOP
• Number-of-Outputs 1
• Topology Boost, Flyback, Forward Converter
• Frequency-Switching 300kHz, 700kHz
• Current-Output 1.35A (Switch)
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 3.1V
• Voltage-Output-Max 80V (Switch)
• Synchronous-Rectifier No
• Voltage-Input-Min 3.1V
• Voltage-Input-Max 40V
• Shutdown Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.295 V
• Operating-Supply-Current 5 mA
• Input-Voltage 3.1 V to 40 V
• Input-Voltage-MAX 40 V
• Output-Current 2 A
• Switching-Frequency 300 kHz 700 kHz
• Input-Voltage-MIN 3.1 V
• Development-Kit LM5000EVAL
• Supply-Voltage-Min 3.1 V
