LM5574MT

LM5574MT Overview

Product belongs to the SIMPLE SWITCHERR series. Tube is the packaging method for this product Weight of 0.006102 oz SMD/SMT Mounting-Style Wide -40 C to +125 C operating temperature range for diverse applications TSSOP-16 Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 16-TSSOP Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 50kHz ~ 500kHz for optimal performance. The Positive. Minimum fixed output voltage is 1.225V . The value of No is included as a product attribute. The minimum input voltage is 6V. The 75V. Power-off control: Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.225 V to 70 V Maximum Input Voltage: 75 V Output current: 500 mA Switching frequency is 50 kHz to 500 kHz The product's 6 V is 5.1 V.

LM5574MT Image

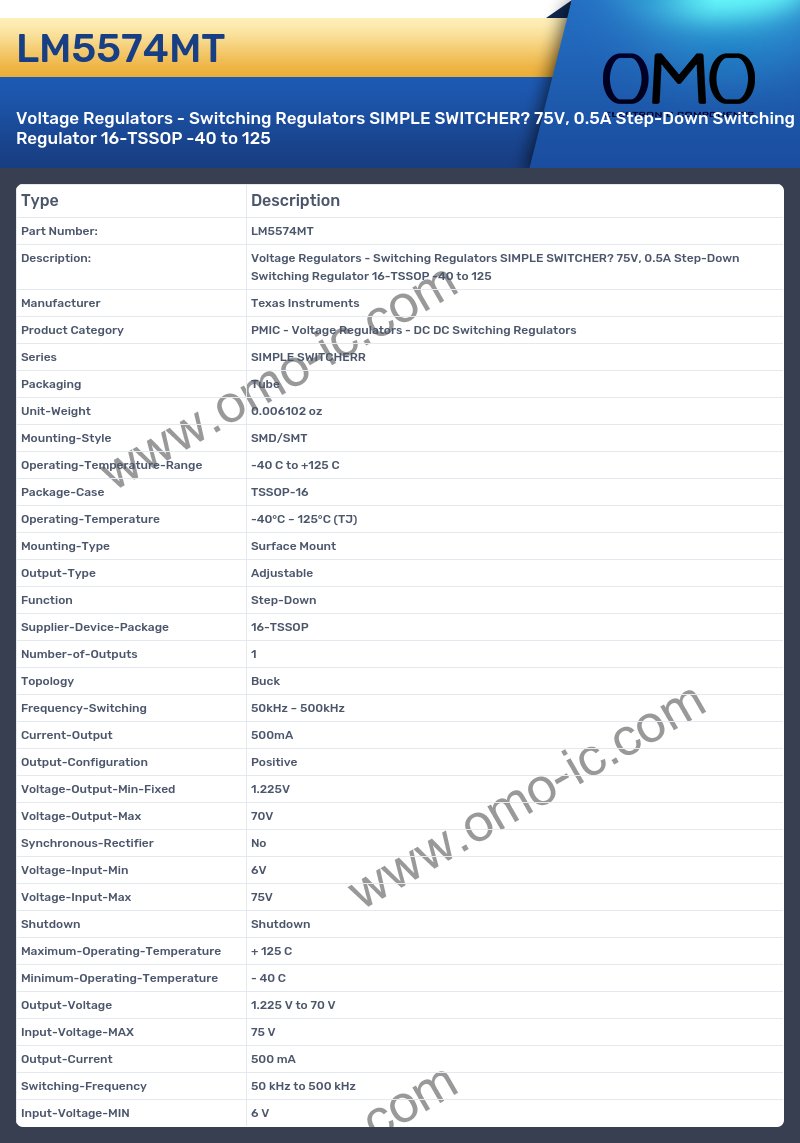

LM5574MT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series SIMPLE SWITCHERR
• Packaging Tube
• Unit-Weight 0.006102 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range -40 C to +125 C
• Package-Case TSSOP-16
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 16-TSSOP
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 50kHz ~ 500kHz
• Current-Output 500mA
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 1.225V
• Voltage-Output-Max 70V
• Synchronous-Rectifier No
• Voltage-Input-Min 6V
• Voltage-Input-Max 75V
• Shutdown Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.225 V to 70 V
• Input-Voltage-MAX 75 V
• Output-Current 500 mA
• Switching-Frequency 50 kHz to 500 kHz
• Input-Voltage-MIN 6 V
