LMV7271MF

LMV7271MF Overview

Product belongs to the LMV7271 series. This product is categorized as Analog Comparators Type: General Purpose Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.007090 oz SMD/SMT Mounting-Style Trade name: LMV. SOT-23 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: CMOS, Push-Pull, Rail-to-Rail Number of channels: 1 Channel Supplier device package: SOT-23-5 Voltage supply range: 1.8 V ~ 5.5 V, ±0.9 V ~ 2.75 V 1 element 14μA maximum quiescent current. Maximum propagation delay: 2.1μs Hysteresis value of - 1.8 us response time Power-off control: No Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 14 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 1.8 V General Purpose comparator type Input bias current of 10 nA The 4 mV. The 80 dB. The CMRR-Common-Mode-Rejection-Ratio is 78 dB.

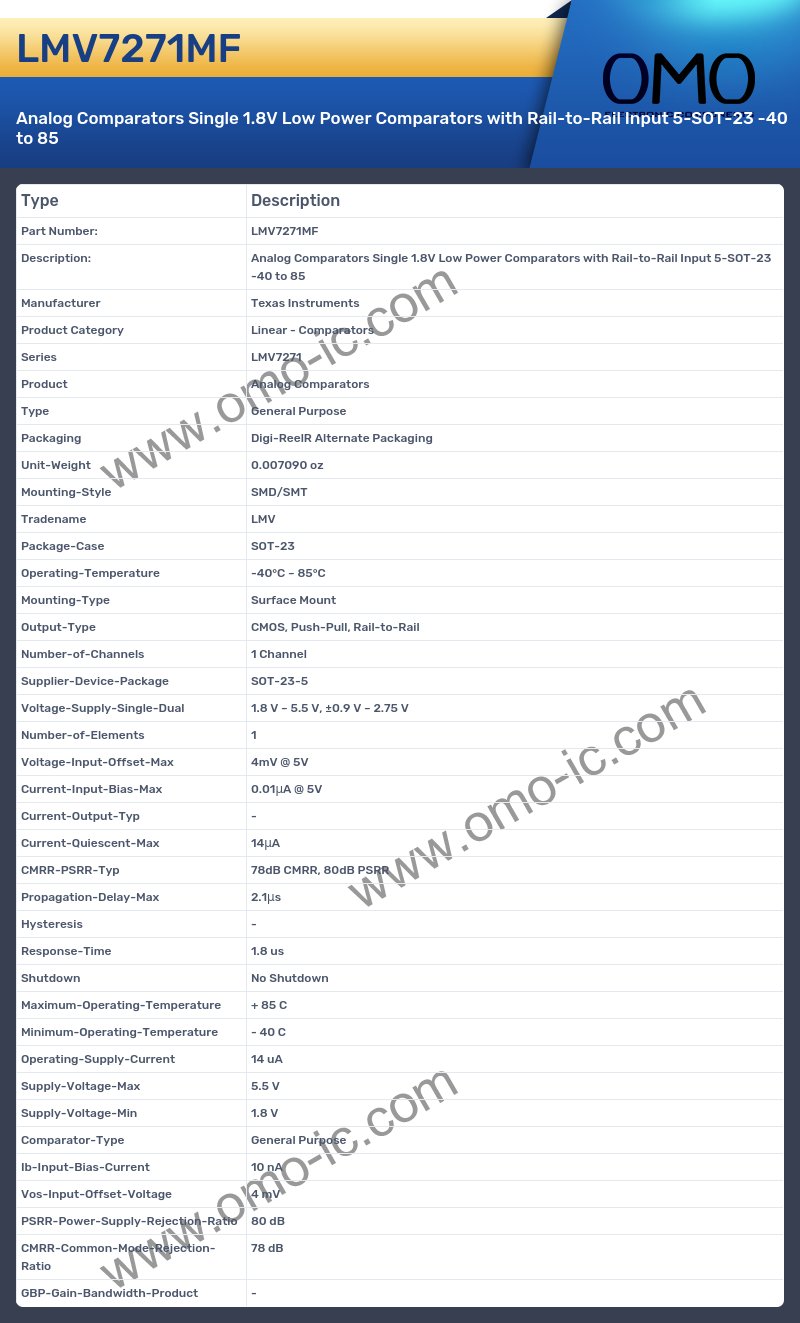

LMV7271MF Image

LMV7271MF Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Comparators
• Series LMV7271
• Product Analog Comparators
• Type General Purpose
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.007090 oz
• Mounting-Style SMD/SMT
• Tradename LMV
• Package-Case SOT-23
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type CMOS, Push-Pull, Rail-to-Rail
• Number-of-Channels 1 Channel
• Supplier-Device-Package SOT-23-5
• Voltage-Supply-Single-Dual 1.8 V ~ 5.5 V, ±0.9 V ~ 2.75 V
• Number-of-Elements 1
• Voltage-Input-Offset-Max 4mV @ 5V
• Current-Input-Bias-Max 0.01μA @ 5V
• Current-Output-Typ -
• Current-Quiescent-Max 14μA
• CMRR-PSRR-Typ 78dB CMRR, 80dB PSRR
• Propagation-Delay-Max 2.1μs
• Hysteresis -
• Response-Time 1.8 us
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 14 uA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.8 V
• Comparator-Type General Purpose
• Ib-Input-Bias-Current 10 nA
• Vos-Input-Offset-Voltage 4 mV
• PSRR-Power-Supply-Rejection-Ratio 80 dB
• CMRR-Common-Mode-Rejection-Ratio 78 dB
• GBP-Gain-Bandwidth-Product -
