LPC1765FBD100,551 Overview

Product belongs to the LPC17xx series. Tray is the packaging method for this product 100-LQFP Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: 100-LQFP (14x14) This product has 70 I/O ports for versatile connectivity. Operating frequency: 100MHz Program memory type: FLASH CAN, I2C, IrDA, Microwire, SPI, SSI, SSP, UART/USART, USB OTG interface Supply Voltage: 2.4 V ~ 3.6 V 32-Bit architecture Internal oscillator type

LPC1765FBD100,551 Image

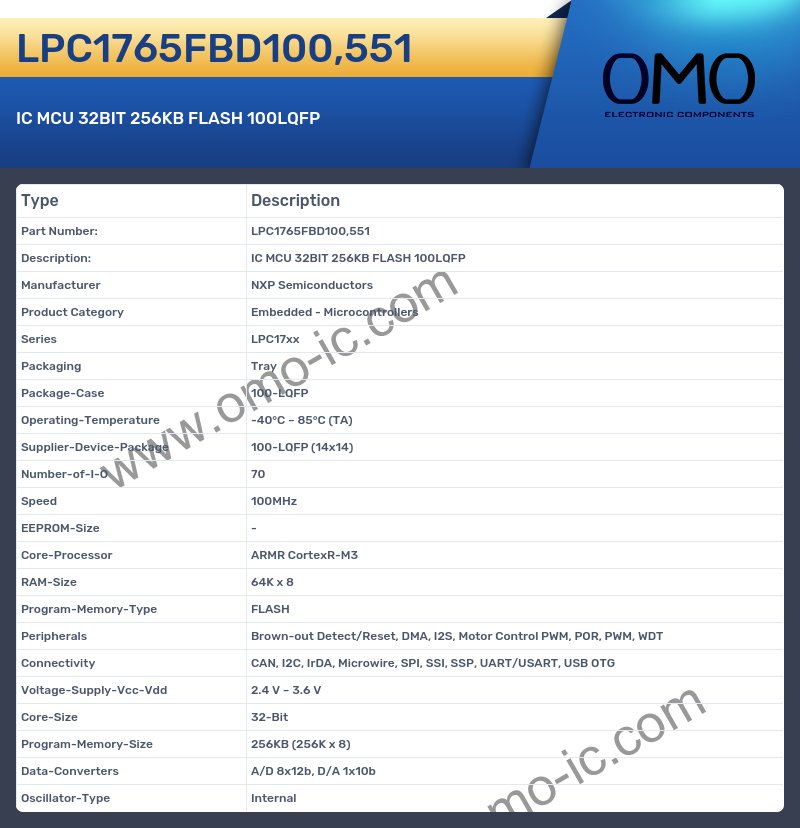

LPC1765FBD100,551 Specifications

• Manufacturer NXP Semiconductors
• Product Category Embedded - Microcontrollers
• Series LPC17xx
• Packaging Tray
• Package-Case 100-LQFP
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package 100-LQFP (14x14)
• Number-of-I-O 70
• Speed 100MHz
• EEPROM-Size -
• Core-Processor ARMR CortexR-M3
• RAM-Size 64K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, DMA, I2S, Motor Control PWM, POR, PWM, WDT
• Connectivity CAN, I2C, IrDA, Microwire, SPI, SSI, SSP, UART/USART, USB OTG
• Voltage-Supply-Vcc-Vdd 2.4 V ~ 3.6 V
• Core-Size 32-Bit
• Program-Memory-Size 256KB (256K x 8)
• Data-Converters A/D 8x12b, D/A 1x10b
• Oscillator-Type Internal
