MCP23S17T-E/SS

MCP23S17T-E/SS Overview

Product belongs to the MCP23S17 series. This product is categorized as I/O Expanders Type: I/O Expander Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.080001 oz SMD/SMT Mounting-Style SSOP-28 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Push-Pull Interface: SPI Voltage Supply Range: 1.8 V ~ 5.5 V Supplier device package: 28-SSOP This product has 16 I/O ports for versatile connectivity. The product features an Yes output. 10MHz is 26GHz. Power-off control: 700 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 1.8 V to 5.5 V supply voltage for reliable performance. 1 mA is 92 nA. Serial SPI interface type Output current: 25 mA MCP23X17 logic type Maximum clock frequency of 10 MHz This product has 16 I/O connections.

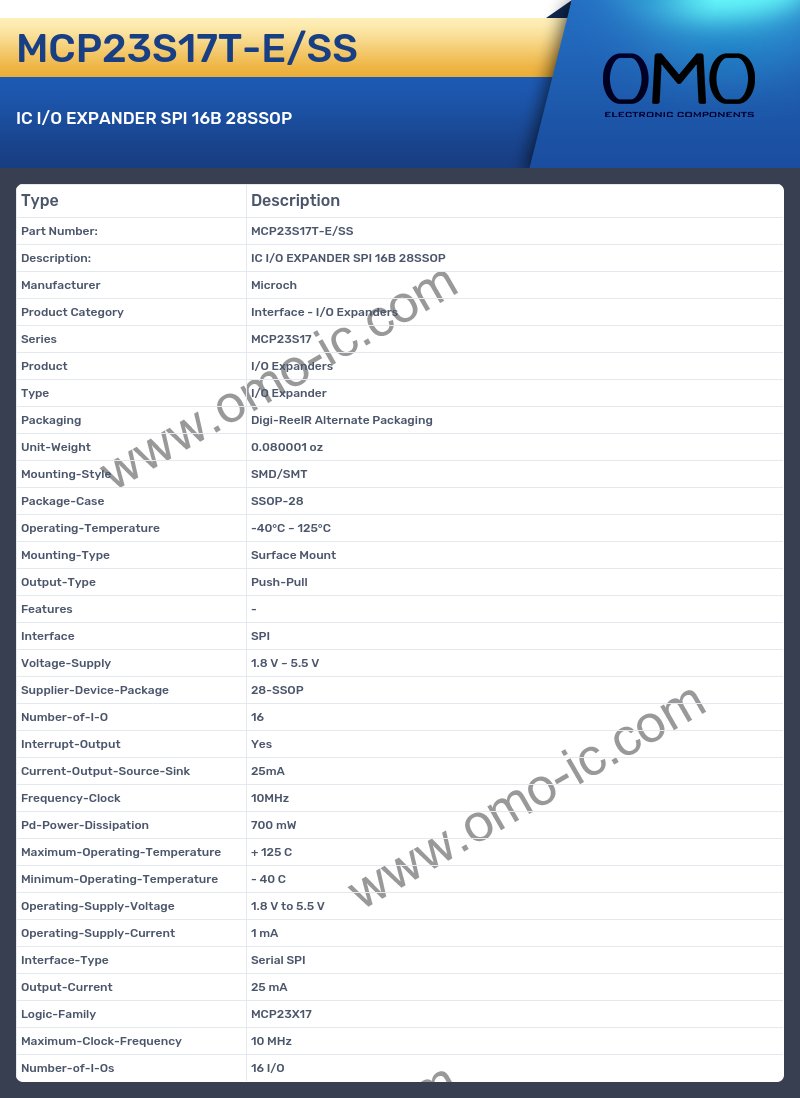

MCP23S17T-E/SS Image

MCP23S17T-E/SS Specifications

• Manufacturer Microch
• Product Category Interface - I/O Expanders
• Series MCP23S17
• Product I/O Expanders
• Type I/O Expander
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.080001 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-28
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Push-Pull
• Features -
• Interface SPI
• Voltage-Supply 1.8 V ~ 5.5 V
• Supplier-Device-Package 28-SSOP
• Number-of-I-O 16
• Interrupt-Output Yes
• Current-Output-Source-Sink 25mA
• Frequency-Clock 10MHz
• Pd-Power-Dissipation 700 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.8 V to 5.5 V
• Operating-Supply-Current 1 mA
• Interface-Type Serial SPI
• Output-Current 25 mA
• Logic-Family MCP23X17
• Maximum-Clock-Frequency 10 MHz
• Number-of-I-Os 16 I/O
