MCP3424-E/SL

MCP3424-E/SL Overview

Product belongs to the - series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.011923 oz SMD/SMT Mounting-Style SOIC-14 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C Number of channels: 4 Channel Supplier device package: 14-SOIC This product's 3.75. Data-Interface: I2C 18 bits The Voltage-Supply-Analog is 2.7 V ~ 5.5 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. Configuration MUX-PGA-ADC The architecture of this product is Sigma-Delta . Internal is the reference type. 1 units Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Serial I2C interface type Number-of-Converters: 1 Converter 3.75 S/s Sampling Rate Integral Nonlinearity: 35 ppm of FSR Reference voltage is 2.048 V .

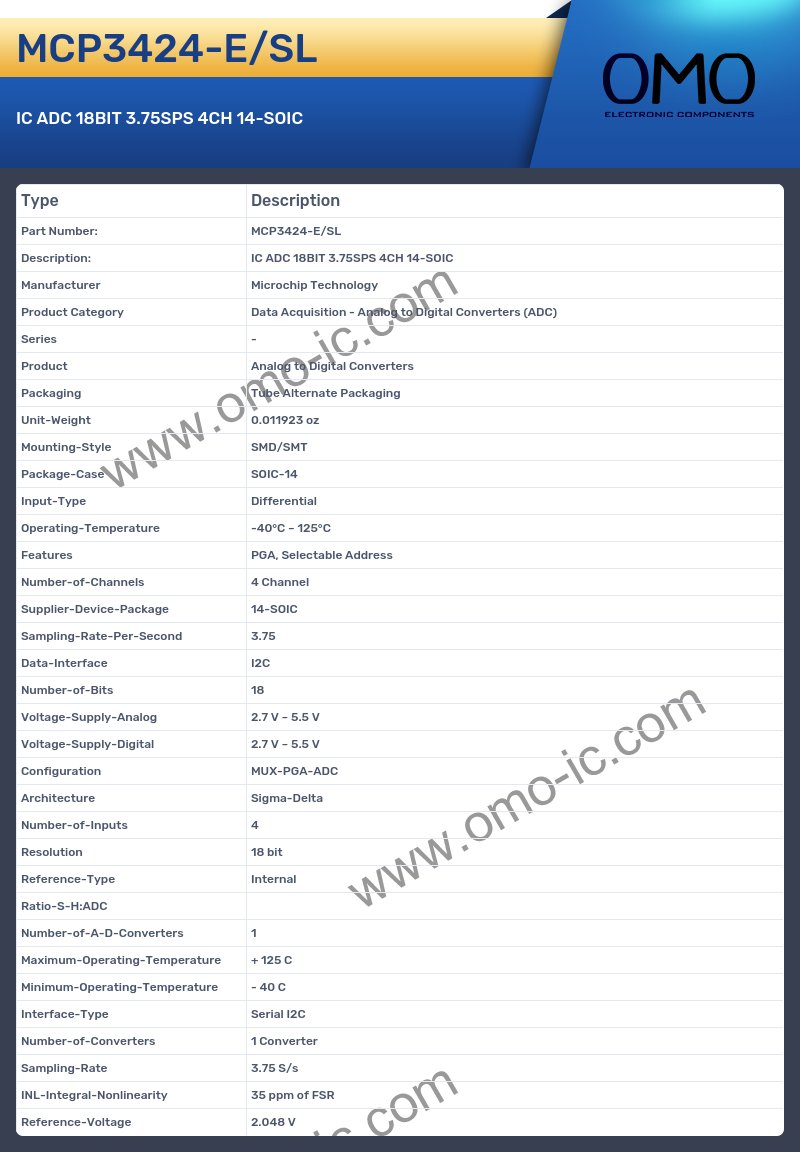

MCP3424-E/SL Image

MCP3424-E/SL Specifications

• Manufacturer Microchip Technology
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series -
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.011923 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Input-Type Differential
• Operating-Temperature -40°C ~ 125°C
• Features PGA, Selectable Address
• Number-of-Channels 4 Channel
• Supplier-Device-Package 14-SOIC
• Sampling-Rate-Per-Second 3.75
• Data-Interface I2C
• Number-of-Bits 18
• Voltage-Supply-Analog 2.7 V ~ 5.5 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Configuration MUX-PGA-ADC
• Architecture Sigma-Delta
• Number-of-Inputs 4
• Resolution 18 bit
• Reference-Type Internal
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial I2C
• Number-of-Converters 1 Converter
• Sampling-Rate 3.75 S/s
• INL-Integral-Nonlinearity 35 ppm of FSR
• Reference-Voltage 2.048 V
