MCP3553-E/SN

MCP3553-E/SN Overview

Product belongs to the - series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style SOIC-8 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C Number of channels: 1 Channel Supplier device package: 8-SOIC This product's 60. Data-Interface: SPI 22 bits The Voltage-Supply-Analog is 2.7 V ~ 5.5 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. Configuration ADC The architecture of this product is Sigma-Delta . External is the reference type. 1 units Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Serial 3-Wire SPI interface type Number-of-Converters: 1 Converter 55 S/s Sampling Rate Integral Nonlinearity: 6 ppm Reference voltage is 2.5 V .

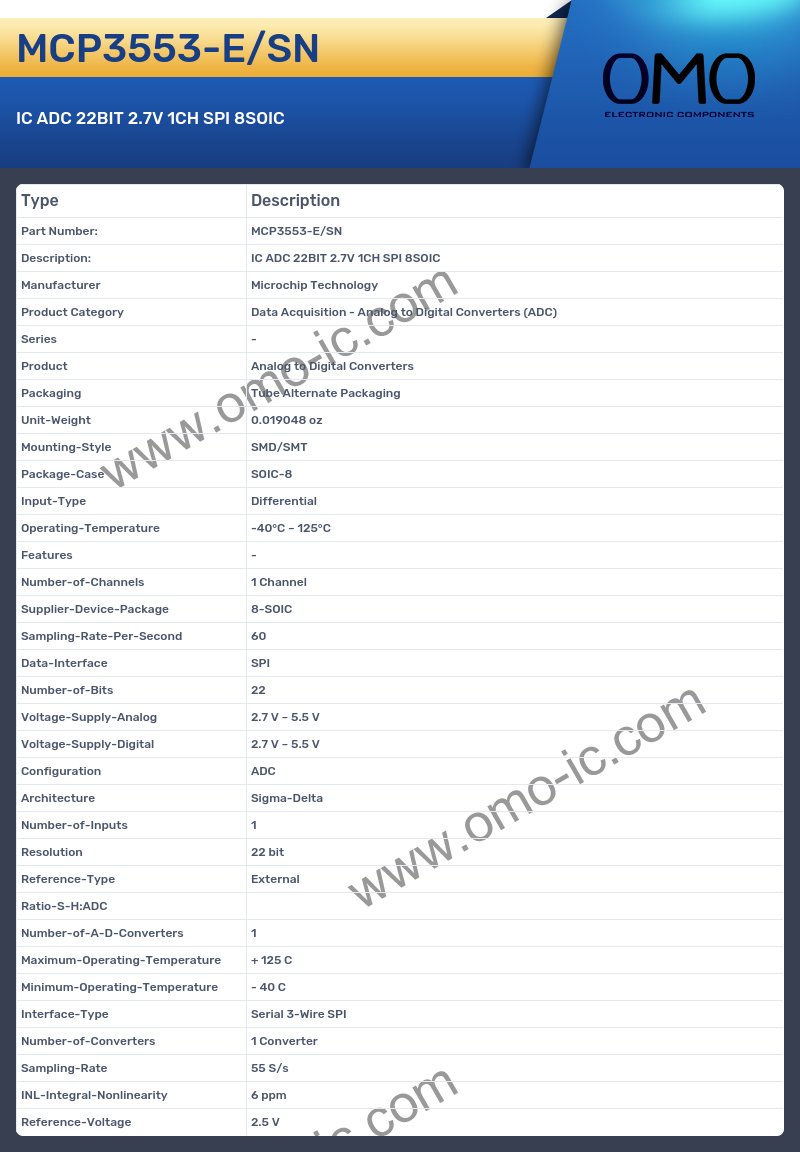

MCP3553-E/SN Image

MCP3553-E/SN Specifications

• Manufacturer Microchip Technology
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series -
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.019048 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Input-Type Differential
• Operating-Temperature -40°C ~ 125°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-SOIC
• Sampling-Rate-Per-Second 60
• Data-Interface SPI
• Number-of-Bits 22
• Voltage-Supply-Analog 2.7 V ~ 5.5 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Configuration ADC
• Architecture Sigma-Delta
• Number-of-Inputs 1
• Resolution 22 bit
• Reference-Type External
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 3-Wire SPI
• Number-of-Converters 1 Converter
• Sampling-Rate 55 S/s
• INL-Integral-Nonlinearity 6 ppm
• Reference-Voltage 2.5 V
