MCP4725A0T-E/CH

MCP4725A0T-E/CH Overview

Product belongs to the - series. This product is categorized as Digital to Analog Converters Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SOT-23A Operational temperature range: -40°C ~ 125°C Output-Type: Voltage - Buffered Number of channels: 1 Channel Supplier device package: SOT-23-6 Data-Interface: I2C 12 bits The Voltage-Supply-Analog is 2.7 V ~ 5.5 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. The architecture of this product is String DAC . Supply is the reference type. Number of D-A converters: 1 The 6μs (Typ) is an impressive 15 us. No Differential-Output Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 210 uA is 92 nA. Serial 2-Wire I2C interface type Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V Number-of-Converters: 1 Converter Integral Nonlinearity: +/- 14.5 LSB Differential nonlinearity: +/- 0.75 LSB

MCP4725A0T-E/CH Image

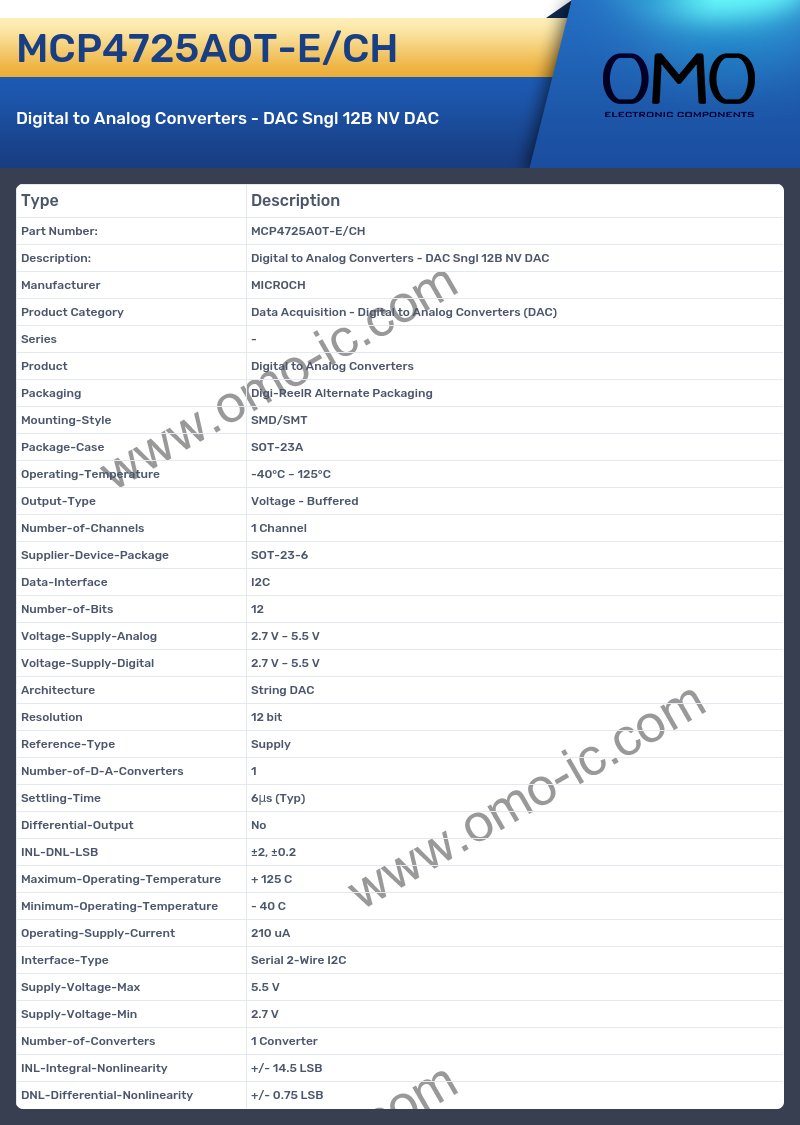

MCP4725A0T-E/CH Specifications

• Manufacturer MICROCH
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series -
• Product Digital to Analog Converters
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SOT-23A
• Operating-Temperature -40°C ~ 125°C
• Output-Type Voltage - Buffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package SOT-23-6
• Data-Interface I2C
• Number-of-Bits 12
• Voltage-Supply-Analog 2.7 V ~ 5.5 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Architecture String DAC
• Resolution 12 bit
• Reference-Type Supply
• Number-of-D-A-Converters 1
• Settling-Time 6μs (Typ)
• Differential-Output No
• INL-DNL-LSB ±2, ±0.2
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 210 uA
• Interface-Type Serial 2-Wire I2C
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• Number-of-Converters 1 Converter
• INL-Integral-Nonlinearity +/- 14.5 LSB
• DNL-Differential-Nonlinearity +/- 0.75 LSB
