OPA3692ID

OPA3692ID Overview

Product belongs to the OPA3692 series. This product is categorized as Video Amplifiers Tube Alternate Packaging is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style SOIC-16 Surface Mount mounting type Output-Type: - Versatile Buffer applications for maximum usability Number of channels: 3 Channel Supplier device package: 16-SOIC 3 is 8. Voltage supply range: 5 V ~ 12 V, ±2.5 V ~ 6 V This product has a 15.3mA of 200μA. The 280MHz The 2000 V/μs. Current-Output-Channel is 190mA The amplifier is of Fixed Gain Amplifier type. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 15.3 mA is 92 nA. Maximum supply voltage of 12 V Minimum supply voltage is 5 V Input bias current of 40 uA at 5 V The 3.5 mV at 5 V. The 62 dB (Typ). Gain in voltage per voltage: 2 V/V +/-1 V/V 280 MHz is the 3-dB bandwidth of the product.

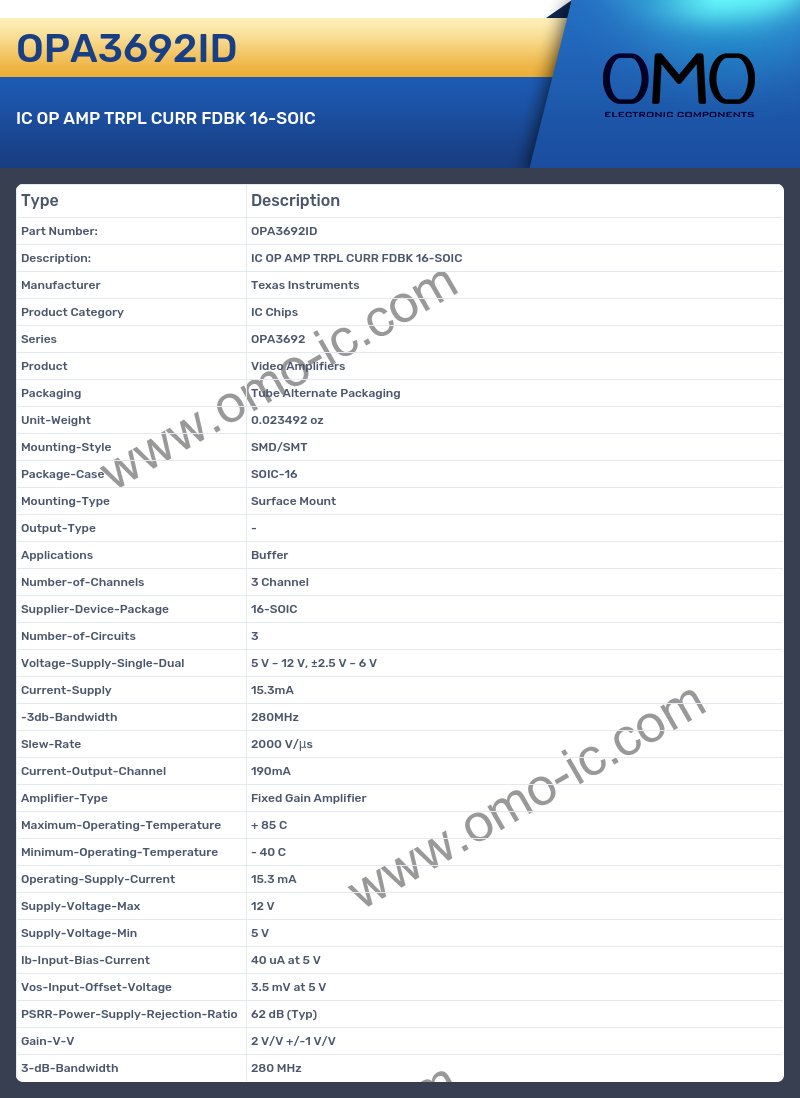

OPA3692ID Image

OPA3692ID Specifications

• Manufacturer Texas Instruments
• Product Category IC Chips
• Series OPA3692
• Product Video Amplifiers
• Packaging Tube Alternate Packaging
• Unit-Weight 0.023492 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Mounting-Type Surface Mount
• Output-Type -
• Applications Buffer
• Number-of-Channels 3 Channel
• Supplier-Device-Package 16-SOIC
• Number-of-Circuits 3
• Voltage-Supply-Single-Dual 5 V ~ 12 V, ±2.5 V ~ 6 V
• Current-Supply 15.3mA
• -3db-Bandwidth 280MHz
• Slew-Rate 2000 V/μs
• Current-Output-Channel 190mA
• Amplifier-Type Fixed Gain Amplifier
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 15.3 mA
• Supply-Voltage-Max 12 V
• Supply-Voltage-Min 5 V
• Ib-Input-Bias-Current 40 uA at 5 V
• Vos-Input-Offset-Voltage 3.5 mV at 5 V
• PSRR-Power-Supply-Rejection-Ratio 62 dB (Typ)
• Gain-V-V 2 V/V +/-1 V/V
• 3-dB-Bandwidth 280 MHz
