PCA9306YZTR

PCA9306YZTR Overview

Product belongs to the PCA9306 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000081 oz SMD/SMT Mounting-Style Trade name: NanoStar. DSBGA-8 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Open Drain, Push-Pull Supplier device package: 8-DSBGA, 8-WCSP (1.9x0.9) 1 is 8. This product uses Voltage Level as the translator type This product's Bidirectional 2 Channels The product is designed to operate at 1.2 V ~ 3.3 V. The Voltage-VCCB is set at 1.8 V ~ 5.5 V. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Maximum supply voltage of 5.5 V Minimum supply voltage is 1.2 V

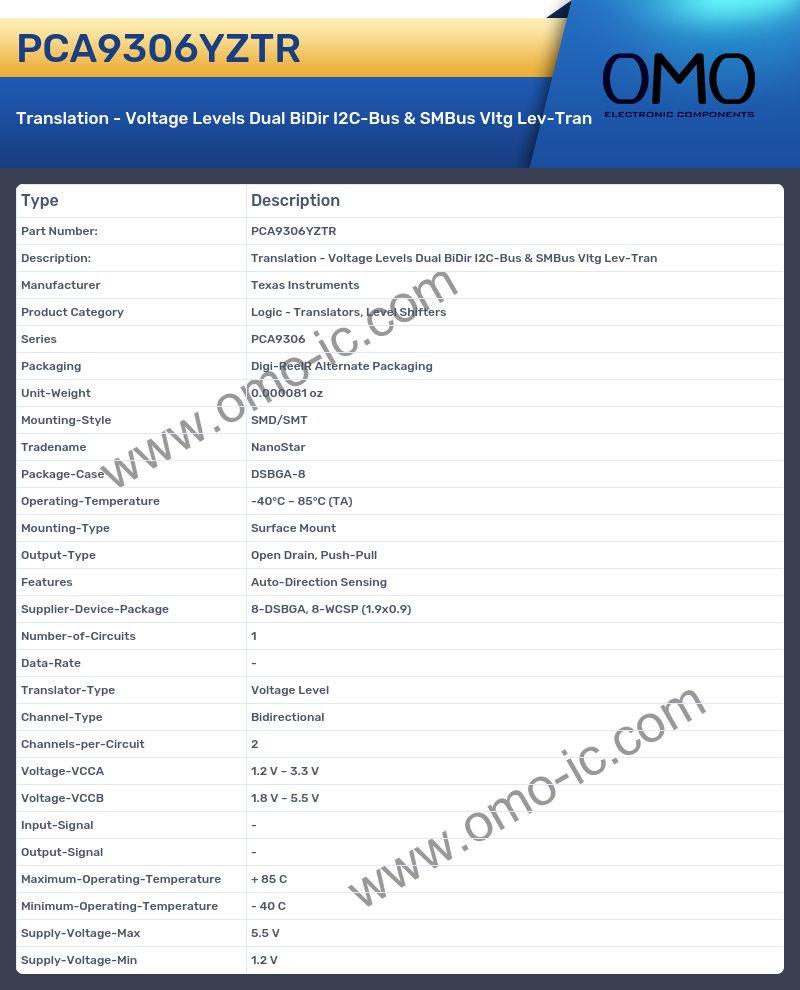

PCA9306YZTR Image

PCA9306YZTR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Translators, Level Shifters
• Series PCA9306
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000081 oz
• Mounting-Style SMD/SMT
• Tradename NanoStar
• Package-Case DSBGA-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Open Drain, Push-Pull
• Features Auto-Direction Sensing
• Supplier-Device-Package 8-DSBGA, 8-WCSP (1.9x0.9)
• Number-of-Circuits 1
• Data-Rate -
• Translator-Type Voltage Level
• Channel-Type Bidirectional
• Channels-per-Circuit 2
• Voltage-VCCA 1.2 V ~ 3.3 V
• Voltage-VCCB 1.8 V ~ 5.5 V
• Input-Signal -
• Output-Signal -
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.2 V
