PCA9539DBR

PCA9539DBR Overview

Product belongs to the PCA9539 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.006081 oz SMD/SMT Mounting-Style SSOP-24 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: Push-Pull Interface: I2C, SMBus Voltage Supply Range: 2.3 V ~ 5.5 V Supplier device package: 24-SSOP This product has 16 I/O ports for versatile connectivity. The product features an Yes output. 400kHz is 26GHz. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2.3 V to 5.5 V supply voltage for reliable performance. 1 uA is 92 nA. I2C Serial SMBus interface type Output current: - 10 mA 25 mA PCA9539 logic type Maximum clock frequency of 400 kHz This product has 16 I/O connections.

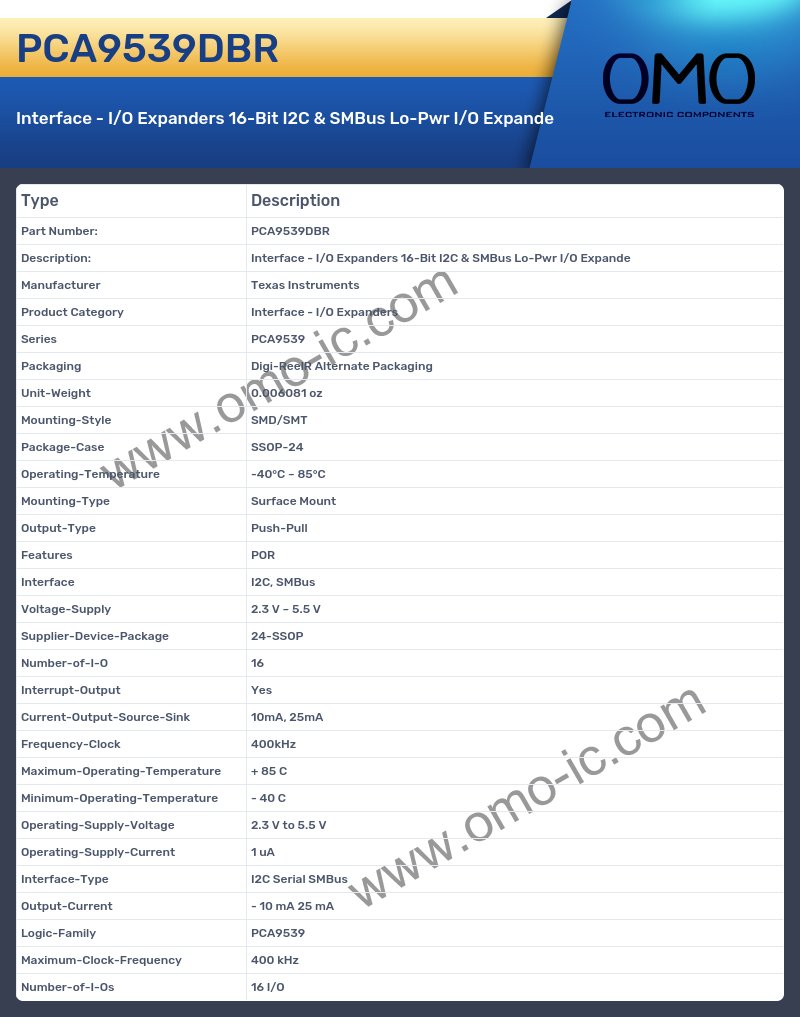

PCA9539DBR Image

PCA9539DBR Specifications

• Manufacturer Texas Instruments
• Product Category Interface - I/O Expanders
• Series PCA9539
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.006081 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-24
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type Push-Pull
• Features POR
• Interface I2C, SMBus
• Voltage-Supply 2.3 V ~ 5.5 V
• Supplier-Device-Package 24-SSOP
• Number-of-I-O 16
• Interrupt-Output Yes
• Current-Output-Source-Sink 10mA, 25mA
• Frequency-Clock 400kHz
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.3 V to 5.5 V
• Operating-Supply-Current 1 uA
• Interface-Type I2C Serial SMBus
• Output-Current - 10 mA 25 mA
• Logic-Family PCA9539
• Maximum-Clock-Frequency 400 kHz
• Number-of-I-Os 16 I/O
