PCM1609APT Overview

Product belongs to the PCM1609A series. This product is categorized as Audio DACs Type: DAC, Audio Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.006349 oz SMD/SMT Mounting-Style LQFP-48 Operational temperature range: -25°C ~ 85°C Surface Mount mounting type Number of channels: 8 Channel Voltage Supply Range: 3 V ~ 3.6 V, 5V Supplier device package: 48-LQFP (7x7) Resolution-Bits: 24 b This product's 192k. Data-Interface: I2S Voltage supply source: Analog and digital Analog and Digital Maximum operating temperature of + 85 C Minimum operating temperature: - 25 C This product operates at a 5 V supply voltage for reliable performance. 36 mA is 92 nA. Serial (5-Wire) interface type Number of DAC Outputs: 8 Output Signal-to-Noise Ratio of 105 dB The +/- 6 % FSR of this product is 0.2%. Number-of-Converters: 8 Converter 192 kS/s Sampling Rate Analog and Digital supply type

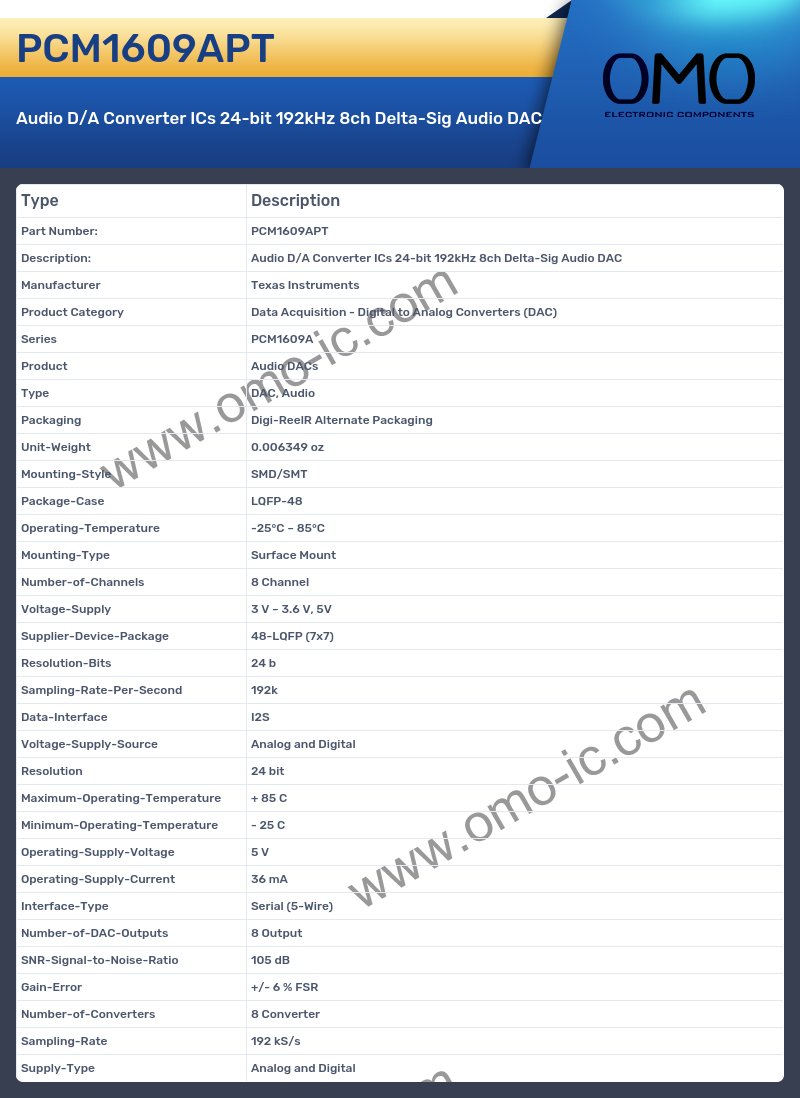

PCM1609APT Image

PCM1609APT Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series PCM1609A
• Product Audio DACs
• Type DAC, Audio
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.006349 oz
• Mounting-Style SMD/SMT
• Package-Case LQFP-48
• Operating-Temperature -25°C ~ 85°C
• Mounting-Type Surface Mount
• Number-of-Channels 8 Channel
• Voltage-Supply 3 V ~ 3.6 V, 5V
• Supplier-Device-Package 48-LQFP (7x7)
• Resolution-Bits 24 b
• Sampling-Rate-Per-Second 192k
• Data-Interface I2S
• Voltage-Supply-Source Analog and Digital
• Resolution 24 bit
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 25 C
• Operating-Supply-Voltage 5 V
• Operating-Supply-Current 36 mA
• Interface-Type Serial (5-Wire)
• Number-of-DAC-Outputs 8 Output
• SNR-Signal-to-Noise-Ratio 105 dB
• Gain-Error +/- 6 % FSR
• Number-of-Converters 8 Converter
• Sampling-Rate 192 kS/s
• Supply-Type Analog and Digital
