PIC10F320-E/MC

PIC10F320-E/MC Overview

Product belongs to the PICR 10F series. Tube is the packaging method for this product Weight of 0.001344 oz SMD/SMT Mounting-Style DFN-8 EP Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 8-DFN (2x3) This product has 3 I/O ports for versatile connectivity. Operating frequency: 16MHz Program memory type: FLASH - interface Supply Voltage: 2.3 V ~ 5.5 V 8-Bit architecture Internal oscillator type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 1.8 V to 5.5 V supply voltage for reliable performance. Processor Core: PIC10 This product is powered by the PIC10 Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 5.5 V Minimum supply voltage is 2.5 V Maximum clock frequency of 16 MHz Number of ADC Channels: 3 This product has 4 I/O connections. This product has a 64 B data RAM size, providing ample storage for complex applications. This product features 2 Timer number of timers and counters. This product includes Watchdog Timer Extended This product features a high-precision 8 bit, ensuring accurate data conversion. This product utilizes SRAM, providing fast and efficient data storage.

PIC10F320-E/MC Image

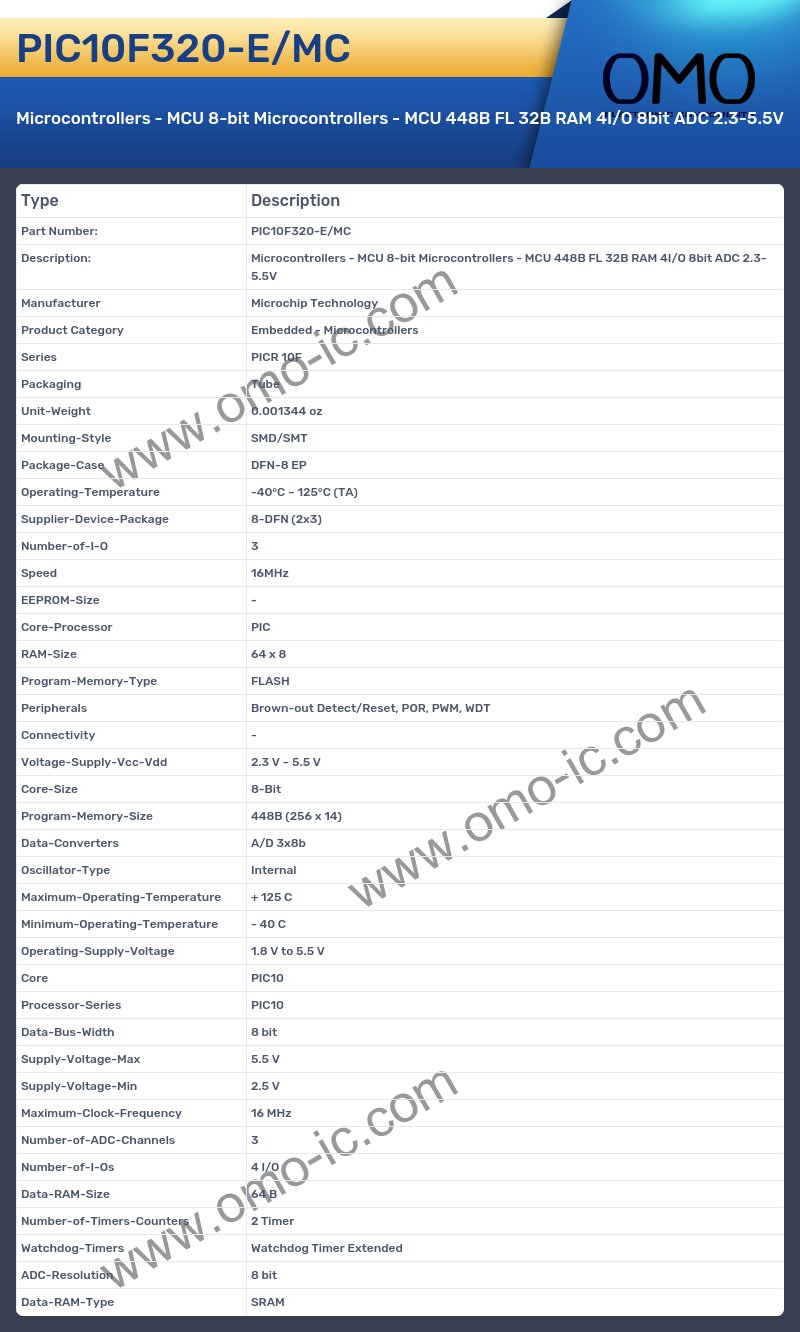

PIC10F320-E/MC Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR 10F
• Packaging Tube
• Unit-Weight 0.001344 oz
• Mounting-Style SMD/SMT
• Package-Case DFN-8 EP
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 8-DFN (2x3)
• Number-of-I-O 3
• Speed 16MHz
• EEPROM-Size -
• Core-Processor PIC
• RAM-Size 64 x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity -
• Voltage-Supply-Vcc-Vdd 2.3 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 448B (256 x 14)
• Data-Converters A/D 3x8b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.8 V to 5.5 V
• Core PIC10
• Processor-Series PIC10
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.5 V
• Maximum-Clock-Frequency 16 MHz
• Number-of-ADC-Channels 3
• Number-of-I-Os 4 I/O
• Data-RAM-Size 64 B
• Number-of-Timers-Counters 2 Timer
• Watchdog-Timers Watchdog Timer Extended
• ADC-Resolution 8 bit
• Data-RAM-Type SRAM
