PIC16C771-E/SO

PIC16C771-E/SO Overview

Product belongs to the PICR 16C series. This product is categorized as MCU Tube is the packaging method for this product Weight of 0.028254 oz SMD/SMT Mounting-Style SOIC-20 Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 20-SOIC This product has 15 I/O ports for versatile connectivity. Operating frequency: 20MHz Program memory type: OTP I2C, SPI interface Supply Voltage: 4 V ~ 5.5 V 8-Bit architecture Internal oscillator type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 2.5 V to 5.5 V supply voltage for reliable performance. I2C SPI SSP interface type Processor Core: PIC This product is powered by the PIC16 Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 5.5 V Minimum supply voltage is 4 V Maximum clock frequency of 20 MHz Number of ADC Channels: 6 This product has 16 I/O connections. This product has a 256 B data RAM size, providing ample storage for complex applications. The product has a 256 B data-ROM size. This product features 3 Timer number of timers and counters. This product features a high-precision 12 bit, ensuring accurate data conversion. The OTP EPROM Data-ROM-Type ensures non-volatile memory storage.

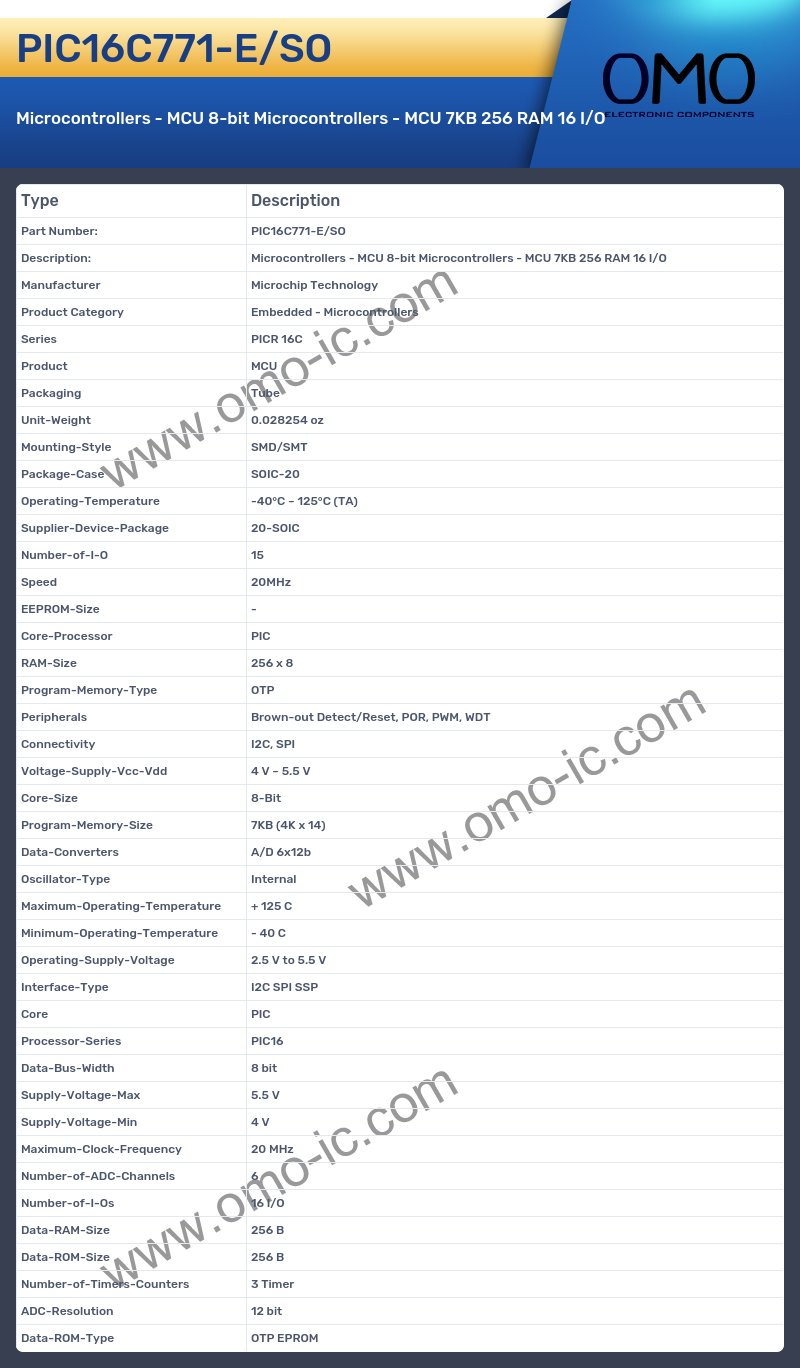

PIC16C771-E/SO Image

PIC16C771-E/SO Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR 16C
• Product MCU
• Packaging Tube
• Unit-Weight 0.028254 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-20
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 20-SOIC
• Number-of-I-O 15
• Speed 20MHz
• EEPROM-Size -
• Core-Processor PIC
• RAM-Size 256 x 8
• Program-Memory-Type OTP
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity I2C, SPI
• Voltage-Supply-Vcc-Vdd 4 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 7KB (4K x 14)
• Data-Converters A/D 6x12b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.5 V to 5.5 V
• Interface-Type I2C SPI SSP
• Core PIC
• Processor-Series PIC16
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4 V
• Maximum-Clock-Frequency 20 MHz
• Number-of-ADC-Channels 6
• Number-of-I-Os 16 I/O
• Data-RAM-Size 256 B
• Data-ROM-Size 256 B
• Number-of-Timers-Counters 3 Timer
• ADC-Resolution 12 bit
• Data-ROM-Type OTP EPROM
