PIC16F1709-E/SO

PIC16F1709-E/SO Overview

Product belongs to the PICR XLP 16F series. Tube is the packaging method for this product 20-SOIC (0.295", 7.50mm Width) Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 20-SOIC This product has 18 I/O ports for versatile connectivity. Operating frequency: 32MHz Program memory type: FLASH I2C, LIN, SPI, UART/USART interface Supply Voltage: 2.3 V ~ 5.5 V 8-Bit architecture Internal oscillator type

PIC16F1709-E/SO Image

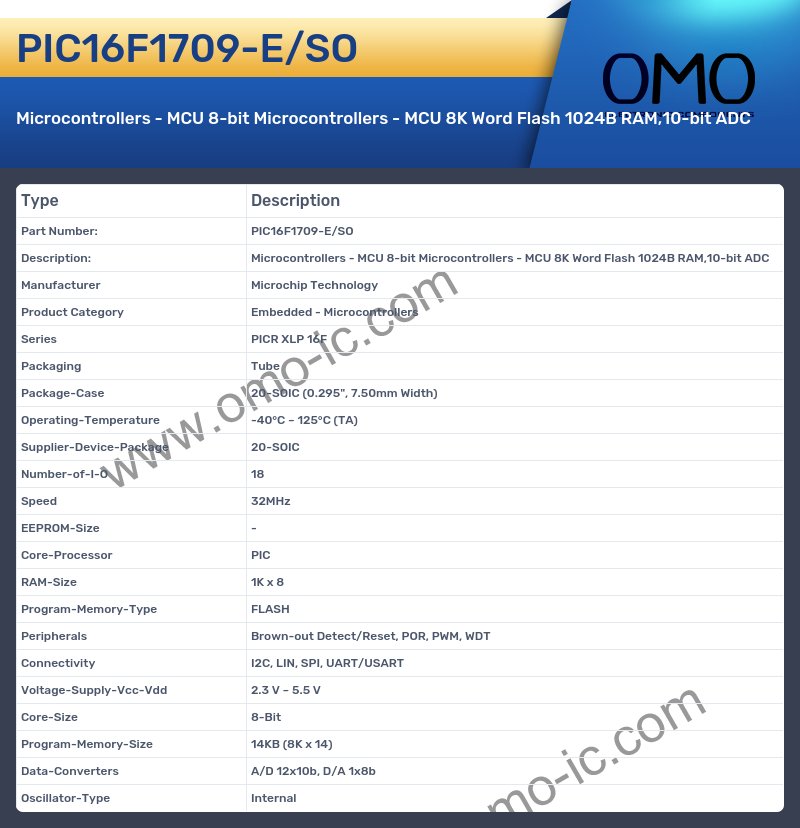

PIC16F1709-E/SO Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR XLP 16F
• Packaging Tube
• Package-Case 20-SOIC (0.295", 7.50mm Width)
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 20-SOIC
• Number-of-I-O 18
• Speed 32MHz
• EEPROM-Size -
• Core-Processor PIC
• RAM-Size 1K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity I2C, LIN, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 2.3 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 14KB (8K x 14)
• Data-Converters A/D 12x10b, D/A 1x8b
• Oscillator-Type Internal
