PIC16F1824-E/JQ

PIC16F1824-E/JQ Overview

Product belongs to the PICR XLP mTouch 16F series. Tube is the packaging method for this product 16-UQFN Exposed Pad Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 16-UQFN (4x4) This product has 11 I/O ports for versatile connectivity. Operating frequency: 32MHz Program memory type: FLASH I2C, SPI, UART/USART interface Supply Voltage: 1.8 V ~ 5.5 V 8-Bit architecture Internal oscillator type

PIC16F1824-E/JQ Image

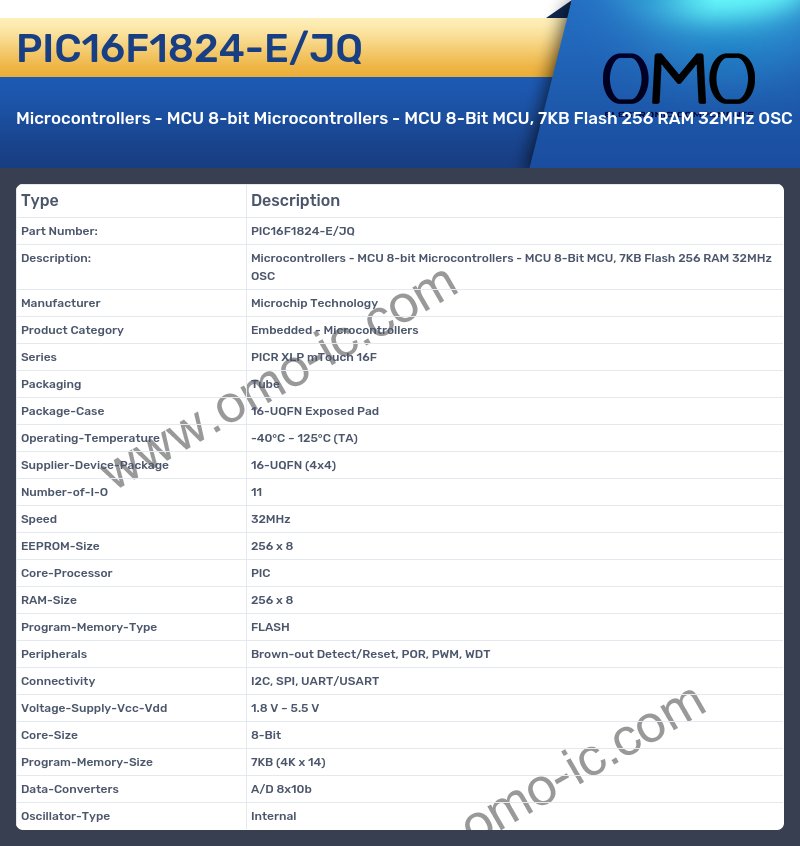

PIC16F1824-E/JQ Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR XLP mTouch 16F
• Packaging Tube
• Package-Case 16-UQFN Exposed Pad
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 16-UQFN (4x4)
• Number-of-I-O 11
• Speed 32MHz
• EEPROM-Size 256 x 8
• Core-Processor PIC
• RAM-Size 256 x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity I2C, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 1.8 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 7KB (4K x 14)
• Data-Converters A/D 8x10b
• Oscillator-Type Internal
