PIC24EP32MC202T-E/MM

PIC24EP32MC202T-E/MM Overview

Product belongs to the PICR 24EP series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product 28-VQFN Exposed Pad Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 28-QFN-S (6x6) This product has 21 I/O ports for versatile connectivity. Operating frequency: 60 MIPs Program memory type: FLASH I2C, IrDA, LIN, QEI, SPI, UART/USART interface Supply Voltage: 3 V ~ 3.6 V 16-Bit architecture Internal oscillator type

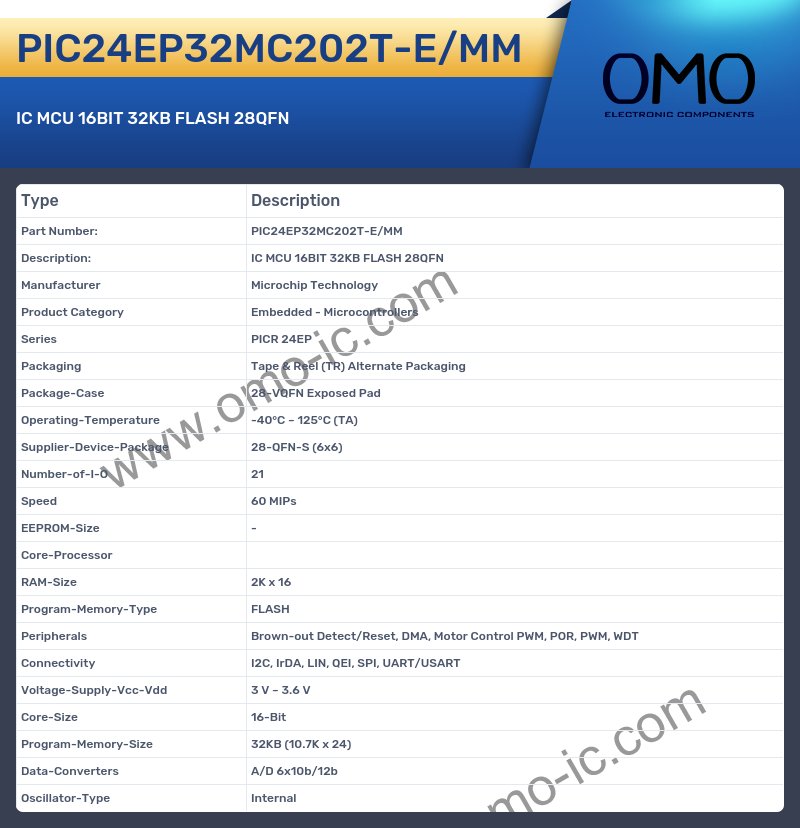

PIC24EP32MC202T-E/MM Image

PIC24EP32MC202T-E/MM Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR 24EP
• Packaging Tape & Reel (TR) Alternate Packaging
• Package-Case 28-VQFN Exposed Pad
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 28-QFN-S (6x6)
• Number-of-I-O 21
• Speed 60 MIPs
• EEPROM-Size -
• Core-Processor
• RAM-Size 2K x 16
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT
• Connectivity I2C, IrDA, LIN, QEI, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 3 V ~ 3.6 V
• Core-Size 16-Bit
• Program-Memory-Size 32KB (10.7K x 24)
• Data-Converters A/D 6x10b/12b
• Oscillator-Type Internal

PIC24EP32MC202T-E/MM FAQ

• A: What is the Series of the product?

  Q: The Series of the product is PICR 24EP.

• A: At what frequency does the Packaging?

  Q: The product Packaging is Tape & Reel (TR) Alternate Packaging.

• A: At what frequency does the Package-Case?

  Q: The product Package-Case is 28-VQFN Exposed Pad.

• A: At what frequency does the Operating-Temperature?

  Q: The product Operating-Temperature is -40°C ~ 125°C (TA).

• A: What is the Supplier-Device-Package of the product?

  Q: The Supplier-Device-Package of the product is 28-QFN-S (6x6).

• A: Is the cutoff frequency of the product Number-of-I-O?

  Q: Yes, the product's Number-of-I-O is indeed 21

• A: What is the Speed of the product?

  Q: The Speed of the product is 60 MIPs.

• A: What is the Program-Memory-Type of the product?

  Q: The Program-Memory-Type of the product is FLASH.

• A: At what frequency does the Connectivity?

  Q: The product Connectivity is I2C, IrDA, LIN, QEI, SPI, UART/USART.

• A: At what frequency does the Voltage-Supply-Vcc-Vdd?

  Q: The product Voltage-Supply-Vcc-Vdd is 3 V ~ 3.6 V.

• A: At what frequency does the Core-Size?

  Q: The product Core-Size is 16-Bit.

• A: What is the Oscillator-Type of the product?

  Q: The Oscillator-Type of the product is Internal.
