PIC24F16KA101-E/MQ

PIC24F16KA101-E/MQ Overview

Product belongs to the PICR XLP 24F series. This product is categorized as MCU Tube is the packaging method for this product 20-VQFN Exposed Pad Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 20-QFN (5x5) This product has 18 I/O ports for versatile connectivity. Operating frequency: 32MHz Program memory type: FLASH I2C, IrDA, SPI, UART/USART interface Supply Voltage: 1.8 V ~ 3.6 V 16-Bit architecture Internal oscillator type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 3 V to 3.6 V supply voltage for reliable performance. I2C SPI UART interface type Processor Core: PIC This product is powered by the PIC24F Processor-Series, providing high performance and efficiency. The 16 bit. Maximum clock frequency of 32 MHz Number of ADC Channels: 9 This product has 18 I/O connections. This product has a 1.5 kB data RAM size, providing ample storage for complex applications. The product has a 512 B data-ROM size. This product features 3 Timer number of timers and counters. This product features a high-precision 10 bit, ensuring accurate data conversion. This product utilizes SRAM, providing fast and efficient data storage. The EEPROM Data-ROM-Type ensures non-volatile memory storage.

PIC24F16KA101-E/MQ Image

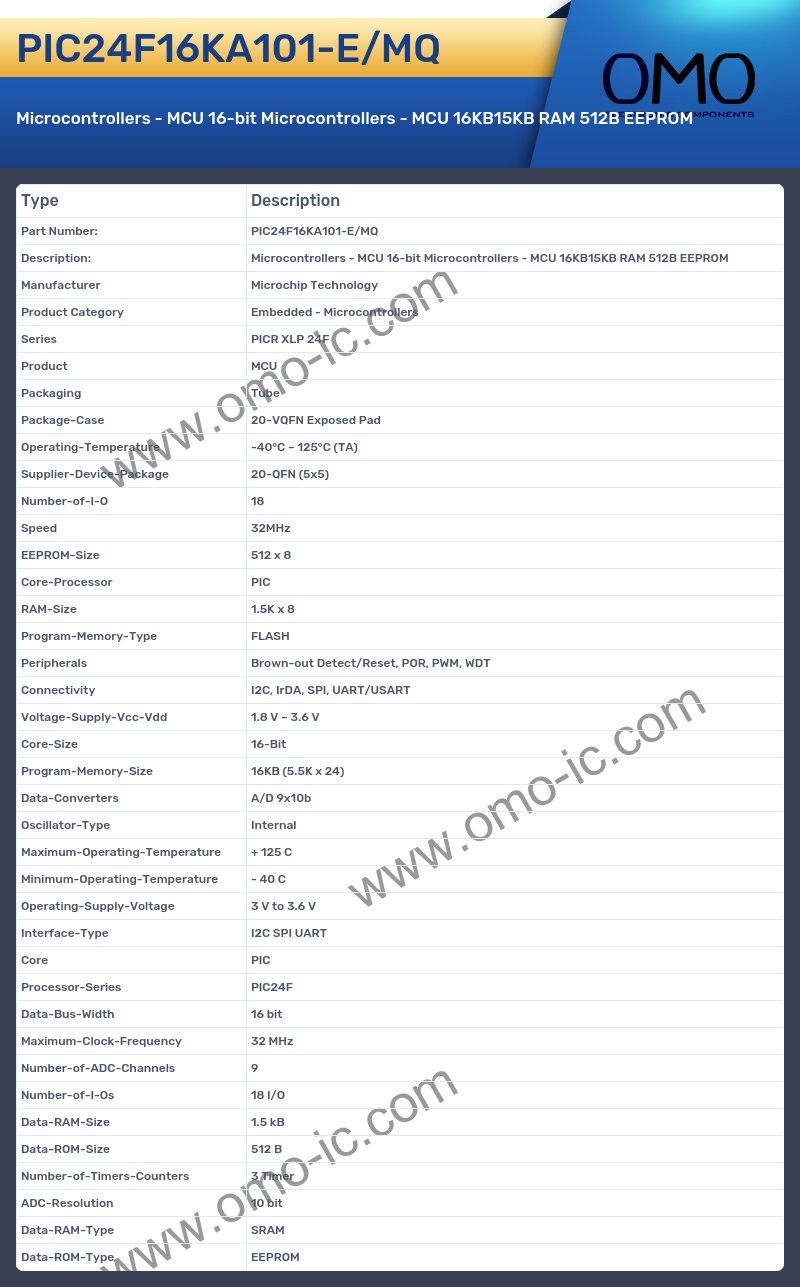

PIC24F16KA101-E/MQ Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR XLP 24F
• Product MCU
• Packaging Tube
• Package-Case 20-VQFN Exposed Pad
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 20-QFN (5x5)
• Number-of-I-O 18
• Speed 32MHz
• EEPROM-Size 512 x 8
• Core-Processor PIC
• RAM-Size 1.5K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity I2C, IrDA, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 1.8 V ~ 3.6 V
• Core-Size 16-Bit
• Program-Memory-Size 16KB (5.5K x 24)
• Data-Converters A/D 9x10b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3 V to 3.6 V
• Interface-Type I2C SPI UART
• Core PIC
• Processor-Series PIC24F
• Data-Bus-Width 16 bit
• Maximum-Clock-Frequency 32 MHz
• Number-of-ADC-Channels 9
• Number-of-I-Os 18 I/O
• Data-RAM-Size 1.5 kB
• Data-ROM-Size 512 B
• Number-of-Timers-Counters 3 Timer
• ADC-Resolution 10 bit
• Data-RAM-Type SRAM
• Data-ROM-Type EEPROM
