REF01EZ Overview

Product belongs to the REF01 series. Tube is the packaging method for this product Through Hole Mounting-Style CDIP-8 Operational temperature range: -40°C ~ 85°C (TA) Through Hole mounting type Output-Type: Fixed Supplier device package: 8-CERDIP Tolerance of ±0.3% 12 V ~ 40 V voltage input This product has a 1.4mA of 200μA. Series is the reference type. Minimum fixed output voltage is 10V . 8.5ppm/°C is 30 parts per million per degree Celsius. 30μVp-p of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 10 V Input Voltage Range: 36 V Maximum supply current: 10 mA Initial accuracy: 0.3 % Maximum input voltage of 36 V for Series VREF.

REF01EZ Image

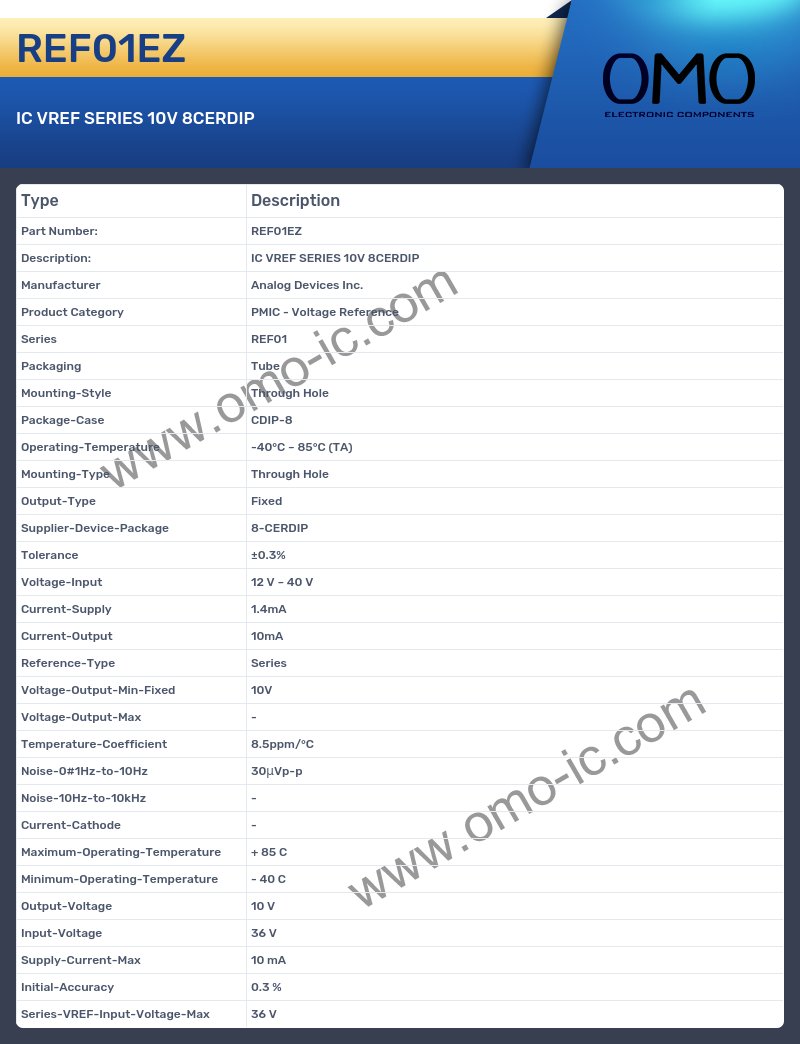

REF01EZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category PMIC - Voltage Reference
• Series REF01
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case CDIP-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Through Hole
• Output-Type Fixed
• Supplier-Device-Package 8-CERDIP
• Tolerance ±0.3%
• Voltage-Input 12 V ~ 40 V
• Current-Supply 1.4mA
• Current-Output 10mA
• Reference-Type Series
• Voltage-Output-Min-Fixed 10V
• Voltage-Output-Max -
• Temperature-Coefficient 8.5ppm/°C
• Noise-0#1Hz-to-10Hz 30μVp-p
• Noise-10Hz-to-10kHz -
• Current-Cathode -
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 10 V
• Input-Voltage 36 V
• Supply-Current-Max 10 mA
• Initial-Accuracy 0.3 %
• Series-VREF-Input-Voltage-Max 36 V
