REF3140TDD1 Overview

Product belongs to the REF3140-DIE series. Tube Alternate Packaging is the packaging method for this product Die Operational temperature range: -40°C ~ 125°C (TA) - mounting type Output-Type: Fixed Supplier device package: Die Tolerance of ±0.2% 4.146 V ~ 5.5 V voltage input This product has a 135μA of 200μA. Series is the reference type. Minimum fixed output voltage is 4.096V . 20ppm/°C is 30 parts per million per degree Celsius. 53μVp-p of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 70 C Minimum operating temperature: 0 C

REF3140TDD1 Image

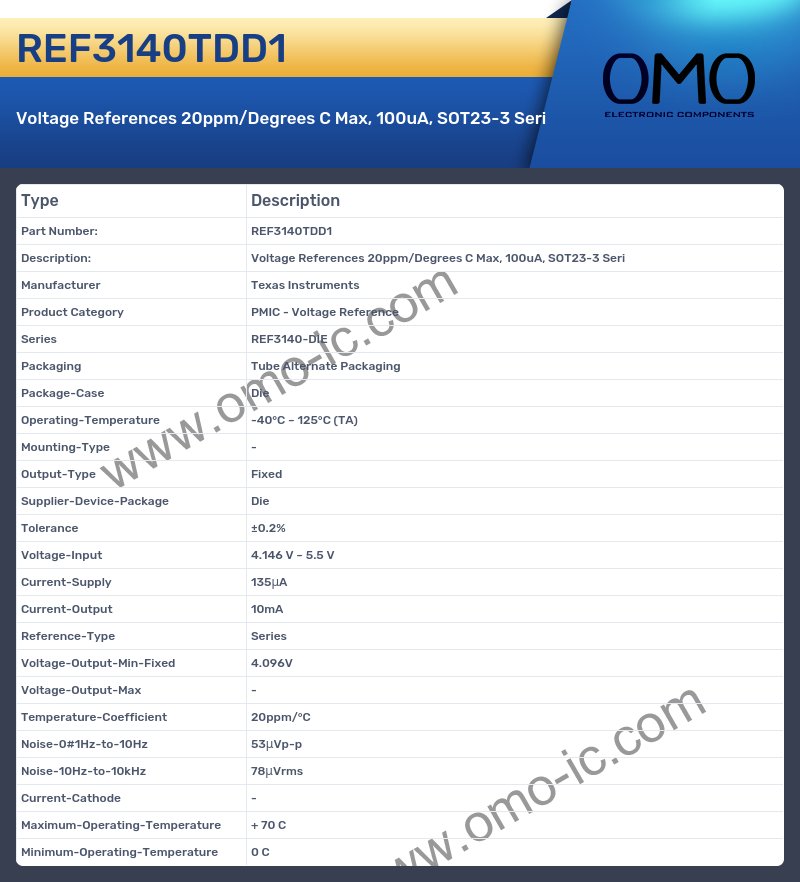

REF3140TDD1 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Reference
• Series REF3140-DIE
• Packaging Tube Alternate Packaging
• Package-Case Die
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type -
• Output-Type Fixed
• Supplier-Device-Package Die
• Tolerance ±0.2%
• Voltage-Input 4.146 V ~ 5.5 V
• Current-Supply 135μA
• Current-Output 10mA
• Reference-Type Series
• Voltage-Output-Min-Fixed 4.096V
• Voltage-Output-Max -
• Temperature-Coefficient 20ppm/°C
• Noise-0#1Hz-to-10Hz 53μVp-p
• Noise-10Hz-to-10kHz 78μVrms
• Current-Cathode -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
