REF5020AID

REF5020AID Overview

Product belongs to the REF5020 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Output-Type: Fixed Supplier device package: 8-SOIC Tolerance of ±0.1% 2.7 V ~ 18 V voltage input This product has a 1.2mA of 200μA. Series is the reference type. Minimum fixed output voltage is 2.048V . 8ppm/°C is 30 parts per million per degree Celsius. 6μVp-p of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 2.048 V 800 uA is 92 nA. Input Voltage Range: 2.7 V to 18 V Initial accuracy: 0.05 % Maximum input voltage of 18 V for Series VREF. Maximum shunt current of 10 mA

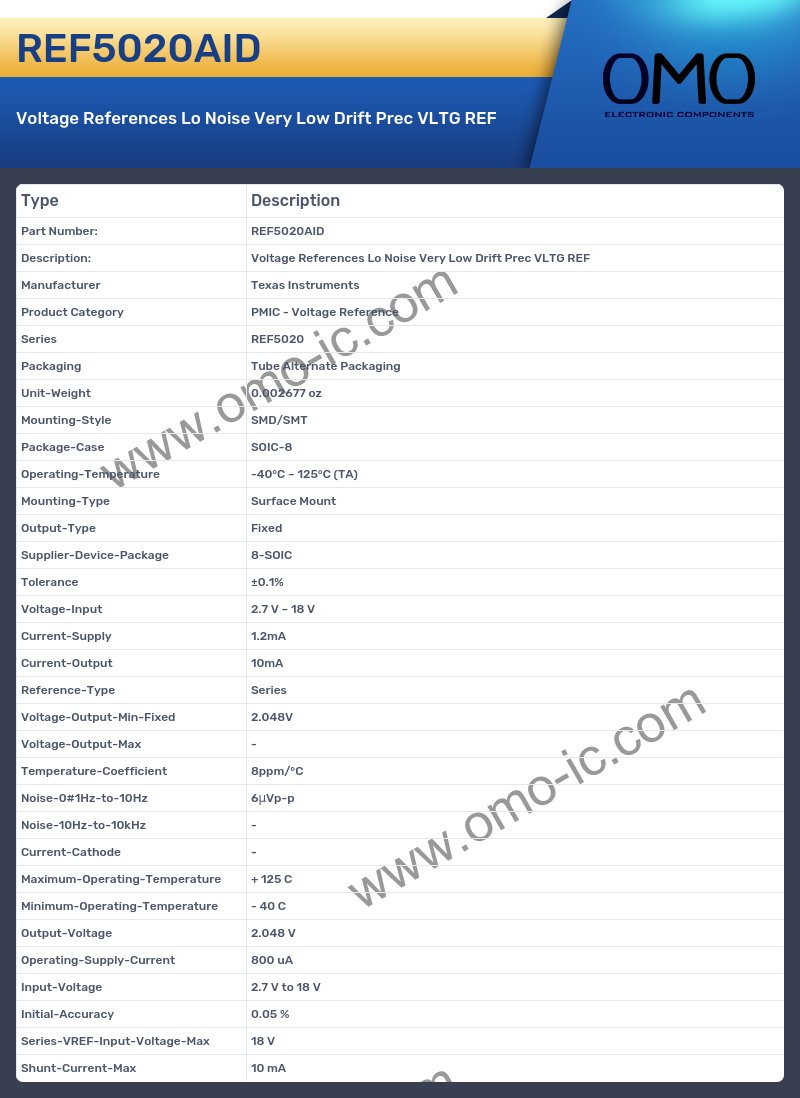

REF5020AID Image

REF5020AID Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Reference
• Series REF5020
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 8-SOIC
• Tolerance ±0.1%
• Voltage-Input 2.7 V ~ 18 V
• Current-Supply 1.2mA
• Current-Output 10mA
• Reference-Type Series
• Voltage-Output-Min-Fixed 2.048V
• Voltage-Output-Max -
• Temperature-Coefficient 8ppm/°C
• Noise-0#1Hz-to-10Hz 6μVp-p
• Noise-10Hz-to-10kHz -
• Current-Cathode -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 2.048 V
• Operating-Supply-Current 800 uA
• Input-Voltage 2.7 V to 18 V
• Initial-Accuracy 0.05 %
• Series-VREF-Input-Voltage-Max 18 V
• Shunt-Current-Max 10 mA
