SMP2300SCMC Overview

Product belongs to the SMP, TRISIL series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.006349 oz SMD/SMT Mounting-Style DO-214AA, SMB The capacitance of this product is 45pF. 1 element The Voltage-Breakover of the product is 260V. The Voltage-Off-State is 230V. 400A of Current-Peak-Pulse-8-20μs; 150mA Current Holding-Ih; Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Breakover Voltage 260 V The 190 V Rated Repetitive Off-State Voltage VDRM; 150 mA Maximun Holding Current of Ih 5 uA RMS Current On-State 61 A Non-Repetitive On-State Current The 3 V On-State-Voltage The 25 pF Off-State-Capacitance-CO of the product.

SMP2300SCMC Image

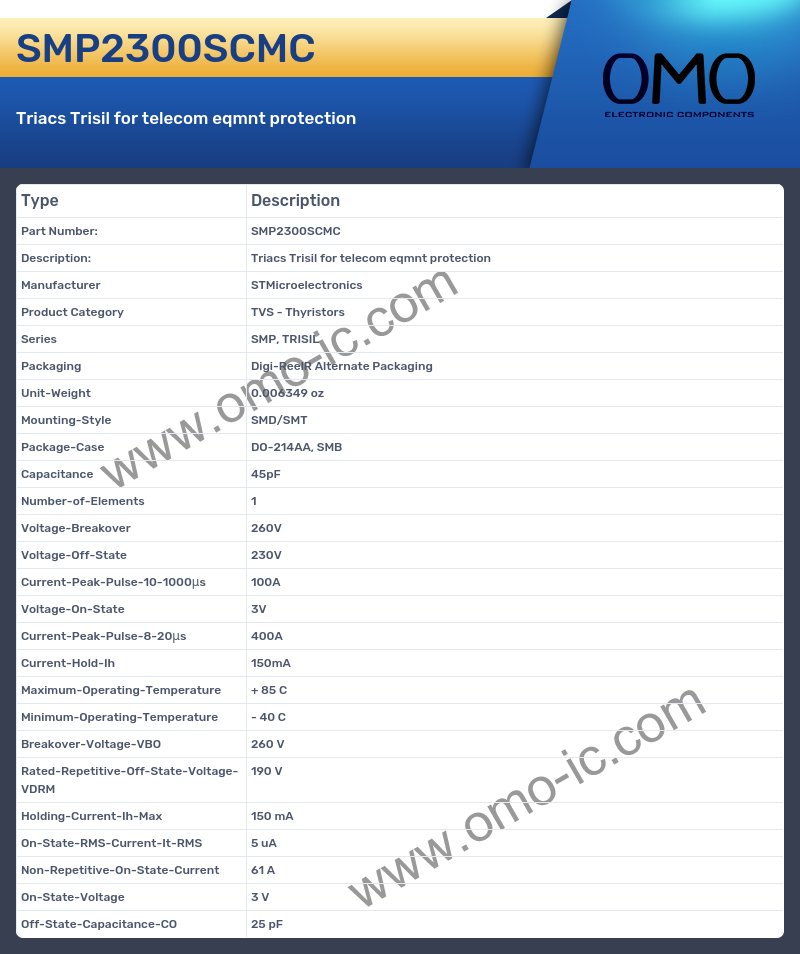

SMP2300SCMC Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Thyristors
• Series SMP, TRISIL
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.006349 oz
• Mounting-Style SMD/SMT
• Package-Case DO-214AA, SMB
• Capacitance 45pF
• Number-of-Elements 1
• Voltage-Breakover 260V
• Voltage-Off-State 230V
• Current-Peak-Pulse-10-1000μs 100A
• Voltage-On-State 3V
• Current-Peak-Pulse-8-20μs 400A
• Current-Hold-Ih 150mA
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Breakover-Voltage-VBO 260 V
• Rated-Repetitive-Off-State-Voltage-VDRM 190 V
• Holding-Current-Ih-Max 150 mA
• On-State-RMS-Current-It-RMS 5 uA
• Non-Repetitive-On-State-Current 61 A
• On-State-Voltage 3 V
• Off-State-Capacitance-CO 25 pF
