SMX1J7.5A-TR

SMX1J7.5A-TR Overview

Product belongs to the SMXJ, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. The Height of the product is 0.55 mm. 1.45 mm length of the product The 1 mm is at most 7.6 mm. 2-UFDFN Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Versatile General Purpose applications for maximum usability Supplier device package: 2-μQFN (1.45x1.0) Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 7.5V. The Voltage-Breakdown-Min is 8.3V. No Power-Line-Protection - Capacitance-Frequency Power-off control: 85 W Breakdown-Voltage: 8.3 V Clamping-Voltage: 14 V 40 A Peak Surge Current Polarity: Unidirectional

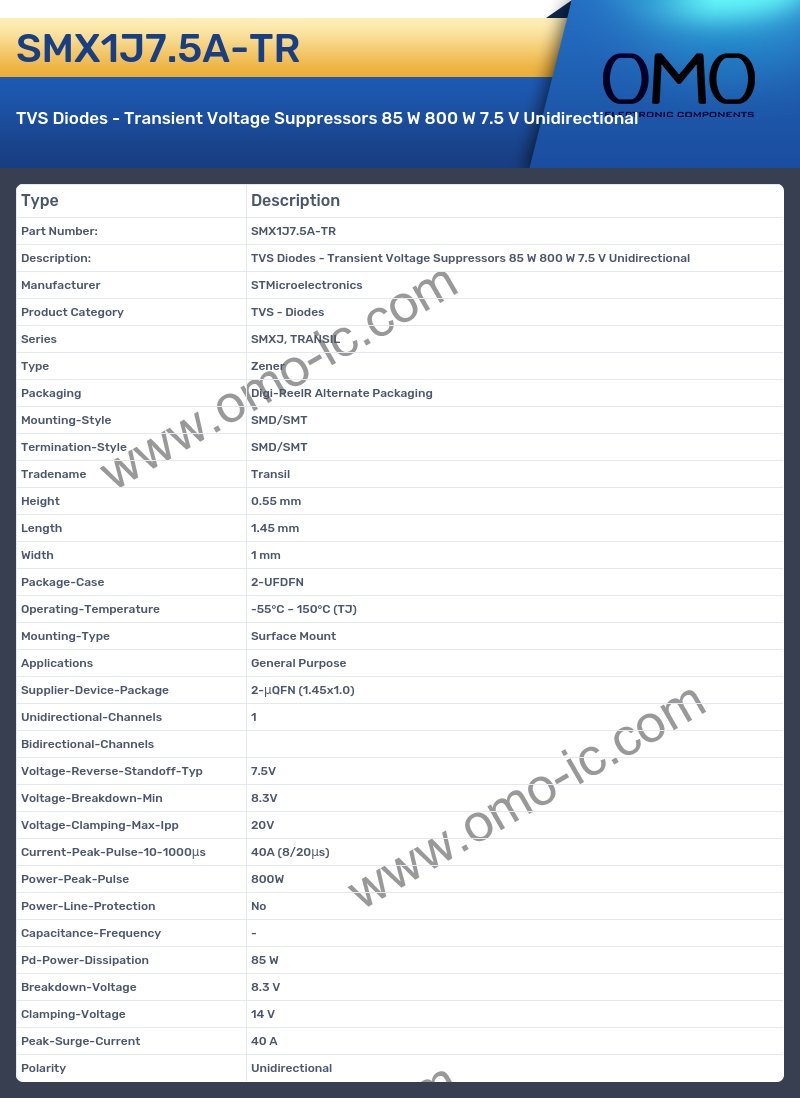

SMX1J7.5A-TR Image

SMX1J7.5A-TR Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series SMXJ, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Tradename Transil
• Height 0.55 mm
• Length 1.45 mm
• Width 1 mm
• Package-Case 2-UFDFN
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Applications General Purpose
• Supplier-Device-Package 2-μQFN (1.45x1.0)
• Unidirectional-Channels 1
• Bidirectional-Channels
• Voltage-Reverse-Standoff-Typ 7.5V
• Voltage-Breakdown-Min 8.3V
• Voltage-Clamping-Max-Ipp 20V
• Current-Peak-Pulse-10-1000μs 40A (8/20μs)
• Power-Peak-Pulse 800W
• Power-Line-Protection No
• Capacitance-Frequency -
• Pd-Power-Dissipation 85 W
• Breakdown-Voltage 8.3 V
• Clamping-Voltage 14 V
• Peak-Surge-Current 40 A
• Polarity Unidirectional
