SN65ELT20DR

SN65ELT20DR Overview

Product belongs to the 65ELT series. Type: TTL to PECL Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 The TTL for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Differential Supplier device package: 8-SOIC 1 is 8. Translator logic type This product uses Mixed Signal as the translator type This product's Unidirectional 1 Channels The product is designed to operate at -. The Voltage-VCCB is set at -. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 16 mA is 92 nA. Maximum supply voltage of 5.7 V Minimum supply voltage is 4.2 V 1.25 ns is 23 microseconds.

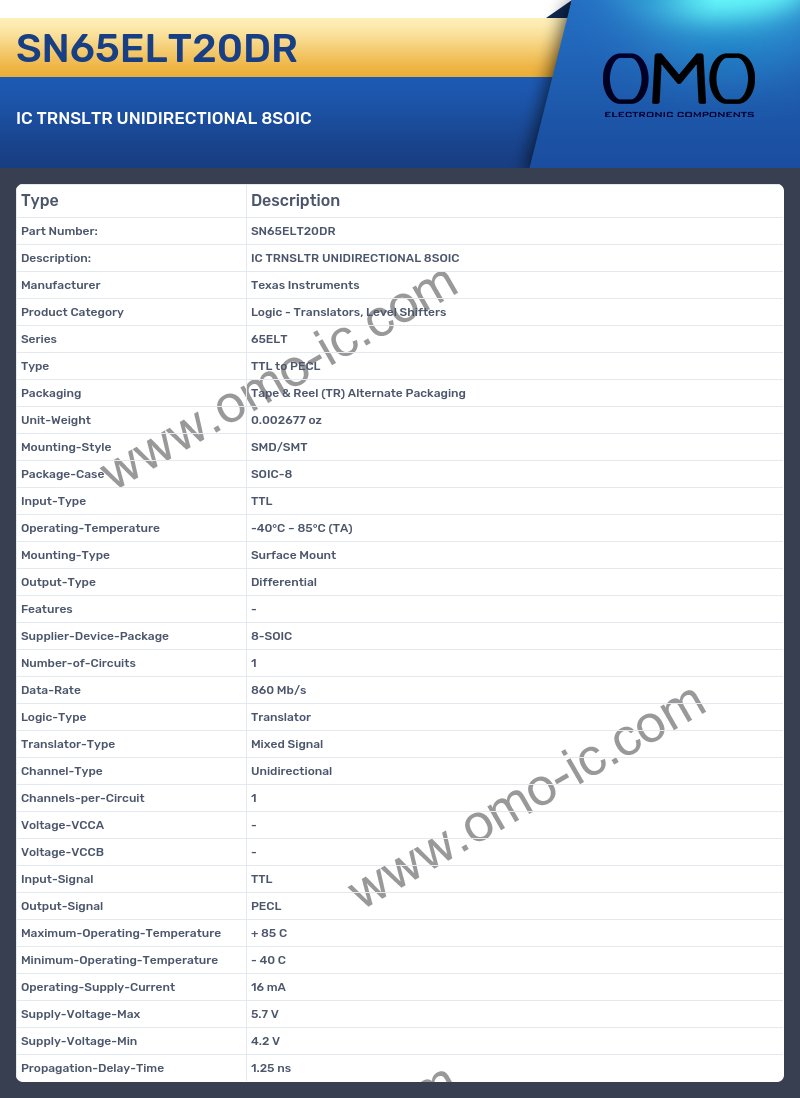

SN65ELT20DR Image

SN65ELT20DR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Translators, Level Shifters
• Series 65ELT
• Type TTL to PECL
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Input-Type TTL
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Differential
• Features -
• Supplier-Device-Package 8-SOIC
• Number-of-Circuits 1
• Data-Rate 860 Mb/s
• Logic-Type Translator
• Translator-Type Mixed Signal
• Channel-Type Unidirectional
• Channels-per-Circuit 1
• Voltage-VCCA -
• Voltage-VCCB -
• Input-Signal TTL
• Output-Signal PECL
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 16 mA
• Supply-Voltage-Max 5.7 V
• Supply-Voltage-Min 4.2 V
• Propagation-Delay-Time 1.25 ns
