SN74AUC1G86YZPR

SN74AUC1G86YZPR Overview

Product belongs to the 74AUC series. This product is categorized as Single-Function Gate Cut Tape (CT) Alternate Packaging is the packaging method for this product Weight of 0.000056 oz SMD/SMT Mounting-Style DSBGA-5 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Voltage Supply Range: 0.8 V ~ 2.7 V Supplier device package: 5-DSBGA, 5-WCSP (1.4x0.9) 1 is 8. 1 Gate is the number of gates included in this product. 10μA maximum quiescent current. XOR (Exclusive OR) logic type 0 V ~ 0.7 V is a Logic-Level-Low; 1.7V is the Logic-Level-High Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Maximum supply voltage of 2.7 V Minimum supply voltage is 0.8 V 74AUC logic type 2.6 ns is 23 microseconds. High-Level-Output-Current of - 9 mA 9 mA low-level output current Number-of-Input-Lines: 2 Input Number-of-Output-Lines: 1 Output XOR logic function

SN74AUC1G86YZPR Image

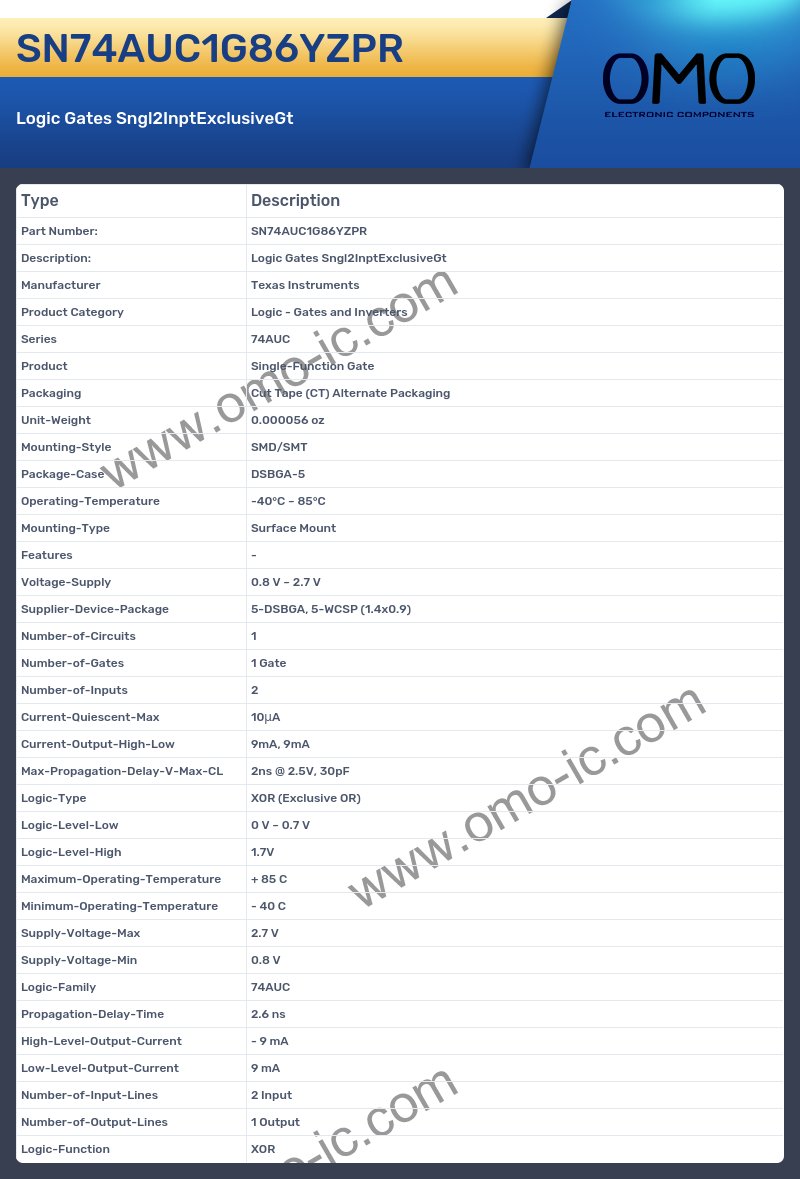

SN74AUC1G86YZPR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 74AUC
• Product Single-Function Gate
• Packaging Cut Tape (CT) Alternate Packaging
• Unit-Weight 0.000056 oz
• Mounting-Style SMD/SMT
• Package-Case DSBGA-5
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features -
• Voltage-Supply 0.8 V ~ 2.7 V
• Supplier-Device-Package 5-DSBGA, 5-WCSP (1.4x0.9)
• Number-of-Circuits 1
• Number-of-Gates 1 Gate
• Number-of-Inputs 2
• Current-Quiescent-Max 10μA
• Current-Output-High-Low 9mA, 9mA
• Max-Propagation-Delay-V-Max-CL 2ns @ 2.5V, 30pF
• Logic-Type XOR (Exclusive OR)
• Logic-Level-Low 0 V ~ 0.7 V
• Logic-Level-High 1.7V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Supply-Voltage-Max 2.7 V
• Supply-Voltage-Min 0.8 V
• Logic-Family 74AUC
• Propagation-Delay-Time 2.6 ns
• High-Level-Output-Current - 9 mA
• Low-Level-Output-Current 9 mA
• Number-of-Input-Lines 2 Input
• Number-of-Output-Lines 1 Output
• Logic-Function XOR
