| Mfr. #: | SN74BCT540ANSR |
|---|---|
| メーカー: | Texas Instruments |
| 説明: | Buffers & Line Drivers Octal Buffers and Line Drivers |
| ライフサイクル: | メーカー新製品 |
| データシート: | SN74BCT540ANSR データシート |
Product belongs to the 74BCT series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.009408 oz SMD/SMT Mounting-Style SOP-20 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: 3-State Number of channels: 8 Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 20-SO 1 element Buffer/Line Driver, Inverting logic type 8 bits per element Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Inverting 71 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V BCT logic type 5.8 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 15 mA 64 mA low-level output current Number-of-Input-Lines: 8 Input Number-of-Output-Lines: 8 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

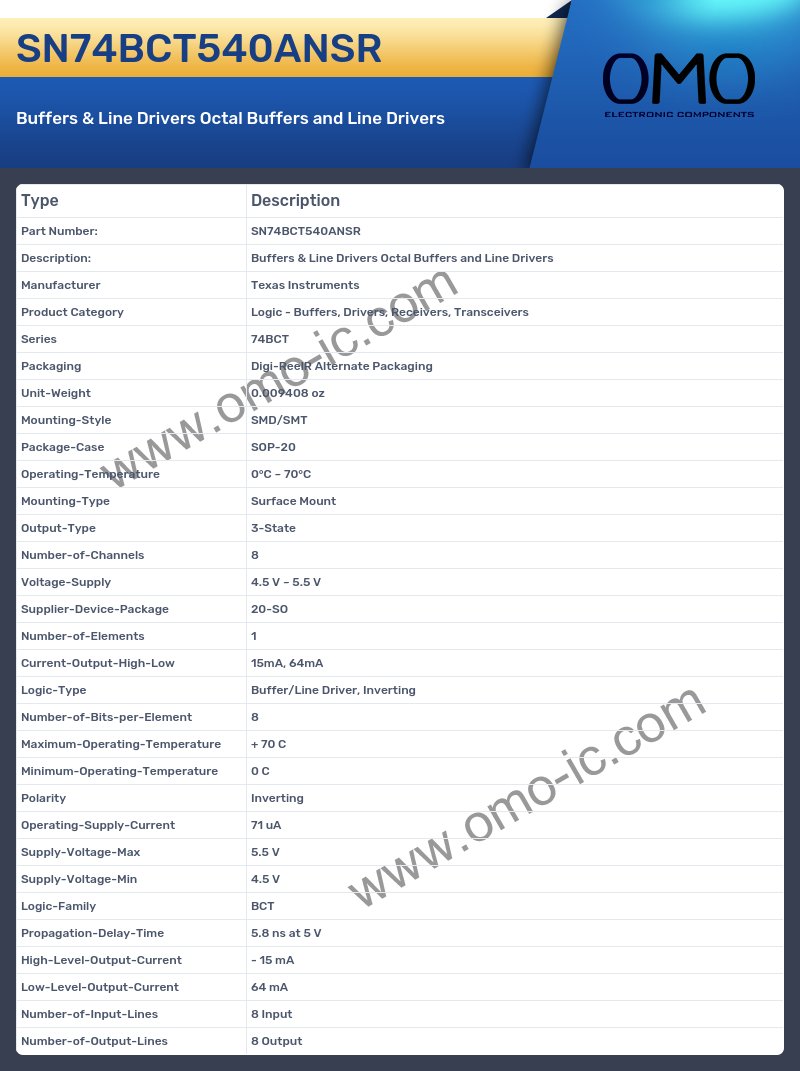

SN74BCT540ANSR Specifications
A: What is the Series of the product?
Q: The Series of the product is 74BCT.
A: At what frequency does the Packaging?
Q: The product Packaging is Digi-ReelR Alternate Packaging.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.009408 oz
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: What is the Package-Case of the product?
Q: The Package-Case of the product is SOP-20.
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is 0°C ~ 70°C.
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: What is the Output-Type of the product?
Q: The Output-Type of the product is 3-State.
A: Is the cutoff frequency of the product Number-of-Channels?
Q: Yes, the product's Number-of-Channels is indeed 8
A: At what frequency does the Voltage-Supply?
Q: The product Voltage-Supply is 4.5 V ~ 5.5 V.
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is 20-SO.
A: At what frequency does the Number-of-Elements?
Q: The product Number-of-Elements is 1.
A: At what frequency does the Logic-Type?
Q: The product Logic-Type is Buffer/Line Driver, Inverting.
A: At what frequency does the Number-of-Bits-per-Element?
Q: The product Number-of-Bits-per-Element is 8.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 70 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is 0 C.
A: At what frequency does the Polarity?
Q: The product Polarity is Inverting.
A: What is the Operating-Supply-Current of the product?
Q: The Operating-Supply-Current of the product is 71 uA.
A: What is the Supply-Voltage-Max of the product?
Q: The Supply-Voltage-Max of the product is 5.5 V.
A: At what frequency does the Supply-Voltage-Min?
Q: The product Supply-Voltage-Min is 4.5 V.
A: At what frequency does the Logic-Family?
Q: The product Logic-Family is BCT.
A: What is the Propagation-Delay-Time of the product?
Q: The Propagation-Delay-Time of the product is 5.8 ns at 5 V.
A: What is the High-Level-Output-Current of the product?
Q: The High-Level-Output-Current of the product is - 15 mA.
A: At what frequency does the Low-Level-Output-Current?
Q: The product Low-Level-Output-Current is 64 mA.
A: What is the Number-of-Input-Lines of the product?
Q: The Number-of-Input-Lines of the product is 8 Input.
A: Is the cutoff frequency of the product Number-of-Output-Lines?
Q: Yes, the product's Number-of-Output-Lines is indeed 8 Output
