SN74F175DR

SN74F175DR Overview

Product belongs to the 74F series. Type: D-Type Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004998 oz SMD/SMT Mounting-Style SOIC-16 The TTL for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C (TA) Surface Mount mounting type Output-Type: Differential Product function is Master Reset. Voltage Supply Range: 4.5 V ~ 5.5 V 4 is 8. 140MHz is 26GHz. 1 element D-Type Flip-Flop logic type 4 bits per element Positive Edge trigger type Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Inverting/Non-Inverting Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V F logic type 8.5 ns is 23 microseconds. High-Level-Output-Current of - 1 mA 20 mA low-level output current Number-of-Input-Lines: 4 Number-of-Output-Lines: 4

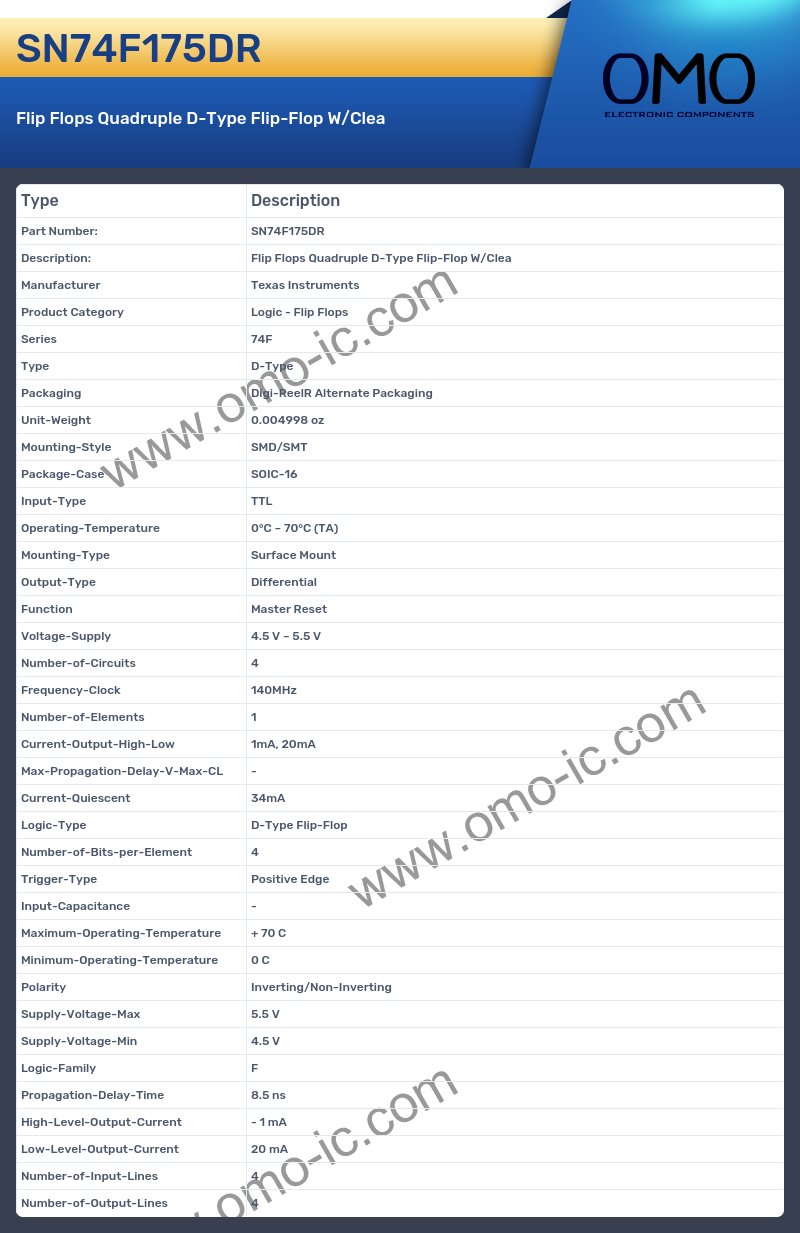

SN74F175DR Image

SN74F175DR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Flip Flops
• Series 74F
• Type D-Type
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004998 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Input-Type TTL
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Surface Mount
• Output-Type Differential
• Function Master Reset
• Voltage-Supply 4.5 V ~ 5.5 V
• Number-of-Circuits 4
• Frequency-Clock 140MHz
• Number-of-Elements 1
• Current-Output-High-Low 1mA, 20mA
• Max-Propagation-Delay-V-Max-CL -
• Current-Quiescent 34mA
• Logic-Type D-Type Flip-Flop
• Number-of-Bits-per-Element 4
• Trigger-Type Positive Edge
• Input-Capacitance -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Polarity Inverting/Non-Inverting
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family F
• Propagation-Delay-Time 8.5 ns
• High-Level-Output-Current - 1 mA
• Low-Level-Output-Current 20 mA
• Number-of-Input-Lines 4
• Number-of-Output-Lines 4
