SN74LS05DR

SN74LS05DR Overview

Product belongs to the 74LS series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004564 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: Open Collector Number of channels: 5 Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 14-SOIC 6 is 8. - maximum quiescent current. Inverter logic type 0.8V is a Logic-Level-Low; 2V is the Logic-Level-High Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Inverting 33 uA is 92 nA. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V LS logic type 32 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 0.1 mA 8 mA low-level output current Number-of-Input-Lines: 6 Input Number-of-Output-Lines: 6 Output

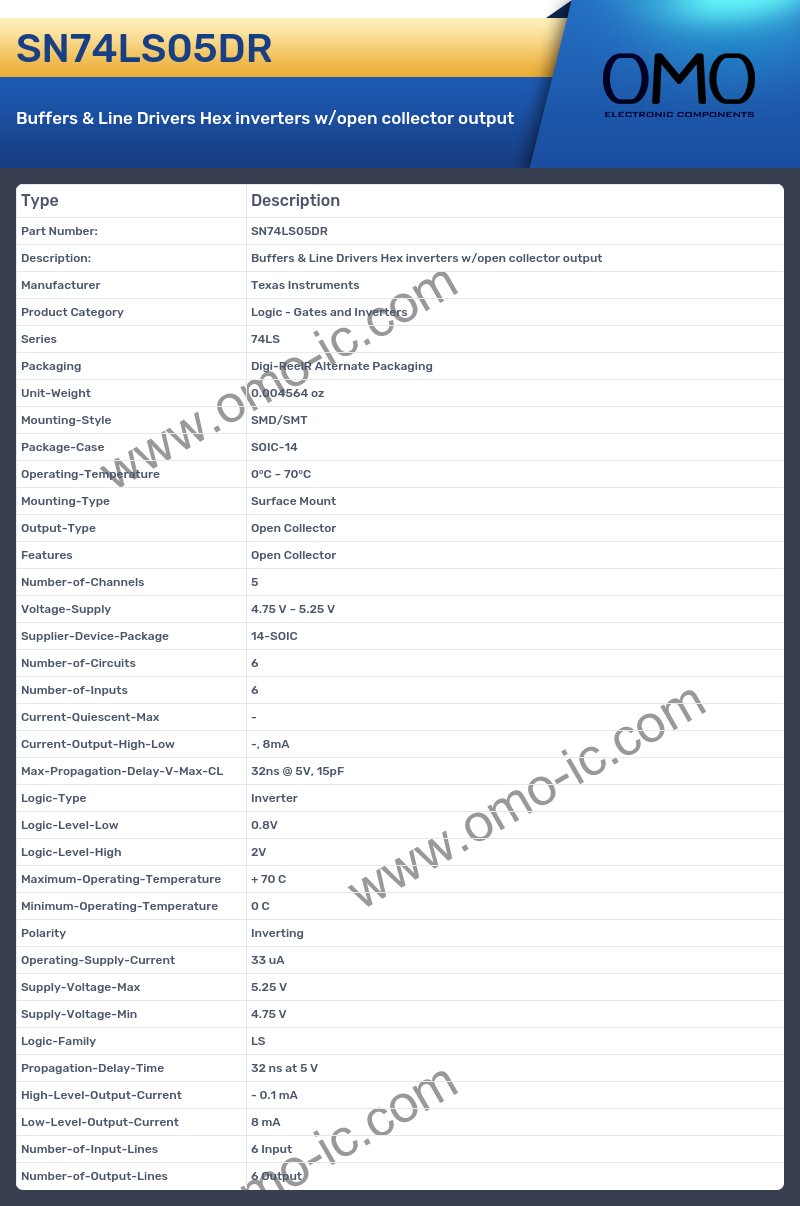

SN74LS05DR Image

SN74LS05DR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 74LS
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004564 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type Open Collector
• Features Open Collector
• Number-of-Channels 5
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 14-SOIC
• Number-of-Circuits 6
• Number-of-Inputs 6
• Current-Quiescent-Max -
• Current-Output-High-Low -, 8mA
• Max-Propagation-Delay-V-Max-CL 32ns @ 5V, 15pF
• Logic-Type Inverter
• Logic-Level-Low 0.8V
• Logic-Level-High 2V
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Polarity Inverting
• Operating-Supply-Current 33 uA
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Logic-Family LS
• Propagation-Delay-Time 32 ns at 5 V
• High-Level-Output-Current - 0.1 mA
• Low-Level-Output-Current 8 mA
• Number-of-Input-Lines 6 Input
• Number-of-Output-Lines 6 Output
