SN74LS10DR

SN74LS10DR Overview

Product belongs to the 74LS series. This product is categorized as Single-Function Gate Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004564 oz SMD/SMT Mounting-Style Wide 0 C to + 70 C operating temperature range for diverse applications SOIC-14 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 14-SOIC 3 is 8. 3 Gate is the number of gates included in this product. 6mA maximum quiescent current. NAND Gate logic type 0.8V is a Logic-Level-Low; 2V is the Logic-Level-High Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V LS logic type 5 ns is 23 microseconds. High-Level-Output-Current of - 20 mA 1 mA low-level output current Number-of-Input-Lines: 3 Input Number-of-Output-Lines: 1 Output NAND logic function

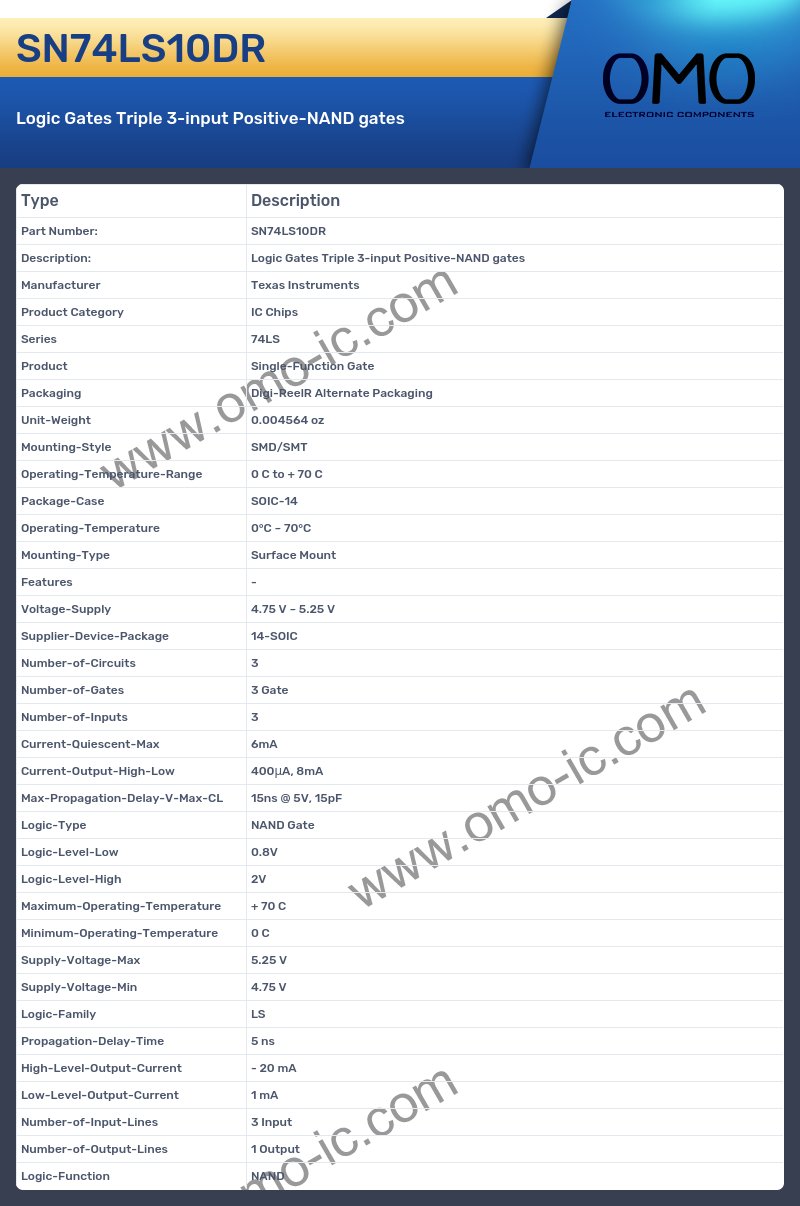

SN74LS10DR Image

SN74LS10DR Specifications

• Manufacturer Texas Instruments
• Product Category IC Chips
• Series 74LS
• Product Single-Function Gate
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004564 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range 0 C to + 70 C
• Package-Case SOIC-14
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Features -
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 14-SOIC
• Number-of-Circuits 3
• Number-of-Gates 3 Gate
• Number-of-Inputs 3
• Current-Quiescent-Max 6mA
• Current-Output-High-Low 400μA, 8mA
• Max-Propagation-Delay-V-Max-CL 15ns @ 5V, 15pF
• Logic-Type NAND Gate
• Logic-Level-Low 0.8V
• Logic-Level-High 2V
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Logic-Family LS
• Propagation-Delay-Time 5 ns
• High-Level-Output-Current - 20 mA
• Low-Level-Output-Current 1 mA
• Number-of-Input-Lines 3 Input
• Number-of-Output-Lines 1 Output
• Logic-Function NAND
