SN74LS2323D

SN74LS2323D Overview

Product belongs to the 74LS series. Tube Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style Wide 0 C to + 70 C operating temperature range for diverse applications SOIC-8 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 8-SOIC 1 element Line Receiver logic type 2 bits per element Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 5 V supply voltage for reliable performance. 12 mA is 92 nA. 74LS logic type The product has 2 Receiver receivers. 25 ns is 23 microseconds. Signal type of the receiver is Single Ended.

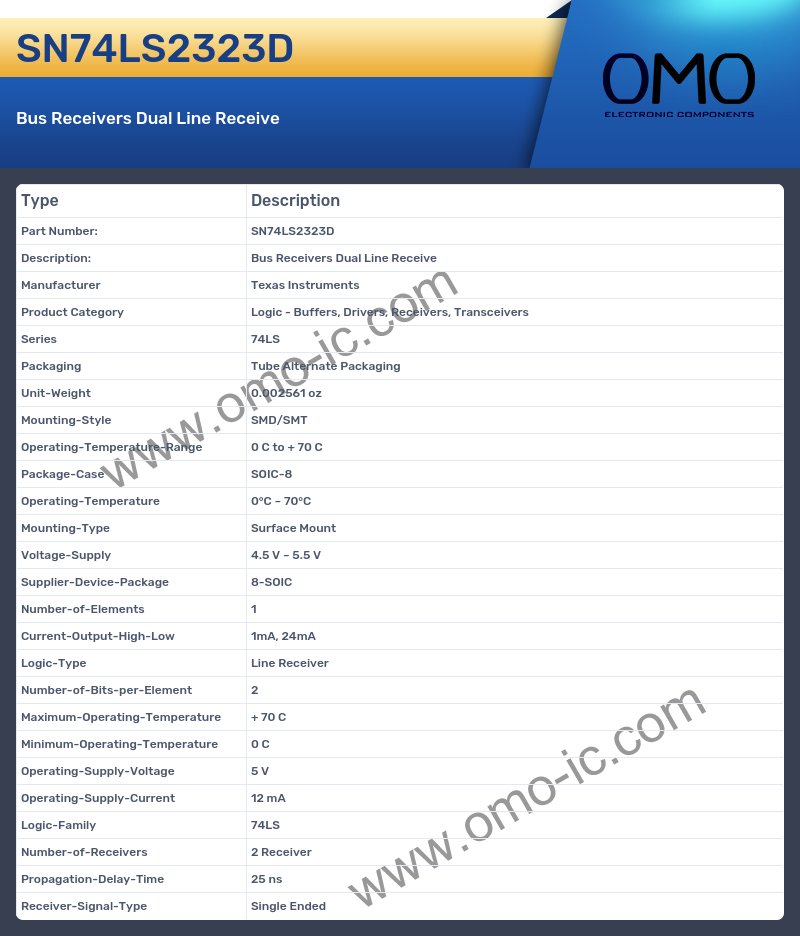

SN74LS2323D Image

SN74LS2323D Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Buffers, Drivers, Receivers, Transceivers
• Series 74LS
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range 0 C to + 70 C
• Package-Case SOIC-8
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 8-SOIC
• Number-of-Elements 1
• Current-Output-High-Low 1mA, 24mA
• Logic-Type Line Receiver
• Number-of-Bits-per-Element 2
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 5 V
• Operating-Supply-Current 12 mA
• Logic-Family 74LS
• Number-of-Receivers 2 Receiver
• Propagation-Delay-Time 25 ns
• Receiver-Signal-Type Single Ended
