| Mfr. #: | SN74LS259BD |
|---|---|
| メーカー: | Texas Instruments |
| 説明: | Latches Octal addressable Latches |
| ライフサイクル: | メーカー新製品 |
| データシート: | SN74LS259BD データシート |
Product belongs to the 74LS series. Tube Alternate Packaging is the packaging method for this product Weight of 0.004998 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: Standard Number of channels: 8 Channels Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 16-SOIC 1 Circuit is 8. Circuit type: 1899/12/30 1:08:00 D-Type, Addressable logic type 1 Independent Circuit The 19ns Delay-Time-Propagation. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Non-Inverting 36 mA is 92 nA. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V 74LS logic type 30 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 400 uA 32 mA low-level output current Number-of-Input-Lines: 3 Line Number-of-Output-Lines: 2 Line
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

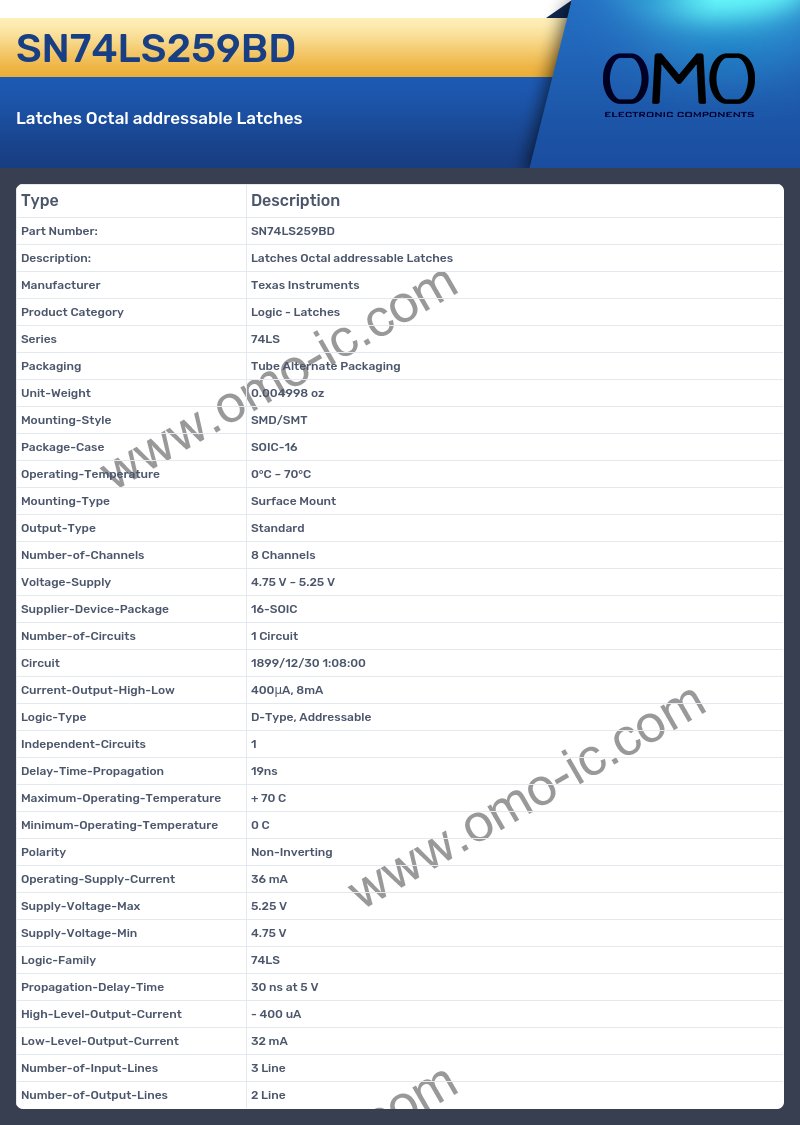

SN74LS259BD Specifications
A: At what frequency does the Series?
Q: The product Series is 74LS.
A: At what frequency does the Packaging?
Q: The product Packaging is Tube Alternate Packaging.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.004998 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is SOIC-16.
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is 0°C ~ 70°C.
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: At what frequency does the Output-Type?
Q: The product Output-Type is Standard.
A: At what frequency does the Number-of-Channels?
Q: The product Number-of-Channels is 8 Channels.
A: Is the cutoff frequency of the product Voltage-Supply?
Q: Yes, the product's Voltage-Supply is indeed 4.75 V ~ 5.25 V
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is 16-SOIC.
A: At what frequency does the Number-of-Circuits?
Q: The product Number-of-Circuits is 1 Circuit.
A: What is the Circuit of the product?
Q: The Circuit of the product is 1899/12/30 1:08:00.
A: What is the Logic-Type of the product?
Q: The Logic-Type of the product is D-Type, Addressable.
A: What is the Independent-Circuits of the product?
Q: The Independent-Circuits of the product is 1.
A: What is the Delay-Time-Propagation of the product?
Q: The Delay-Time-Propagation of the product is 19ns.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 70 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed 0 C
A: What is the Polarity of the product?
Q: The Polarity of the product is Non-Inverting.
A: Is the cutoff frequency of the product Operating-Supply-Current?
Q: Yes, the product's Operating-Supply-Current is indeed 36 mA
A: At what frequency does the Supply-Voltage-Max?
Q: The product Supply-Voltage-Max is 5.25 V.
A: What is the Supply-Voltage-Min of the product?
Q: The Supply-Voltage-Min of the product is 4.75 V.
A: What is the Logic-Family of the product?
Q: The Logic-Family of the product is 74LS.
A: What is the Propagation-Delay-Time of the product?
Q: The Propagation-Delay-Time of the product is 30 ns at 5 V.
A: Is the cutoff frequency of the product High-Level-Output-Current?
Q: Yes, the product's High-Level-Output-Current is indeed - 400 uA
A: At what frequency does the Low-Level-Output-Current?
Q: The product Low-Level-Output-Current is 32 mA.
A: At what frequency does the Number-of-Input-Lines?
Q: The product Number-of-Input-Lines is 3 Line.
A: Is the cutoff frequency of the product Number-of-Output-Lines?
Q: Yes, the product's Number-of-Output-Lines is indeed 2 Line
