| Mfr. #: | SN74LS652DW |
|---|---|
| メーカー: | Texas Instruments |
| 説明: | Bus Transceivers Octal Bus Transcvrs & Reg |
| ライフサイクル: | メーカー新製品 |
| データシート: | SN74LS652DW データシート |
Product belongs to the 74LS series. This product is categorized as Bipolar Tube is the packaging method for this product Weight of 0.022025 oz SMD/SMT Mounting-Style SOIC-24 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: 3-State Product function is Bus Transceiver / Register. Number of channels: 8 Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 24-SOIC 8 is 8. 1 element Registered Transceiver, Non-Inverting logic type 8 bits per element Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Non-Inverting Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V 74LS logic type 36 ns is 23 microseconds. TTL is the output level. This product has an TTL for easy integration with other devices. High-Level-Output-Current of - 15 mA 24 mA low-level output current
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

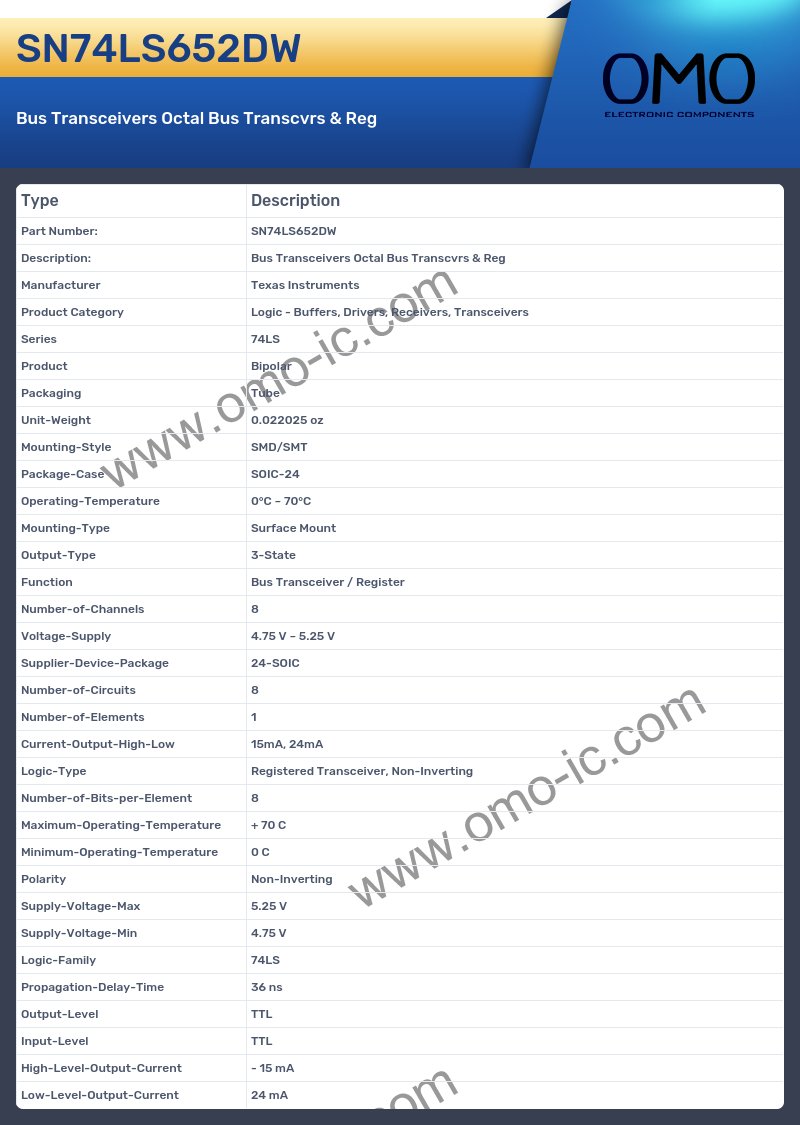

SN74LS652DW Specifications
A: What is the Series of the product?
Q: The Series of the product is 74LS.
A: Is the cutoff frequency of the product Product?
Q: Yes, the product's Product is indeed Bipolar
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.022025 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: At what frequency does the Package-Case?
Q: The product Package-Case is SOIC-24.
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is 0°C ~ 70°C.
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Surface Mount.
A: At what frequency does the Output-Type?
Q: The product Output-Type is 3-State.
A: At what frequency does the Function?
Q: The product Function is Bus Transceiver / Register.
A: At what frequency does the Number-of-Channels?
Q: The product Number-of-Channels is 8.
A: At what frequency does the Voltage-Supply?
Q: The product Voltage-Supply is 4.75 V ~ 5.25 V.
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is 24-SOIC.
A: What is the Number-of-Circuits of the product?
Q: The Number-of-Circuits of the product is 8.
A: What is the Number-of-Elements of the product?
Q: The Number-of-Elements of the product is 1.
A: Is the cutoff frequency of the product Logic-Type?
Q: Yes, the product's Logic-Type is indeed Registered Transceiver, Non-Inverting
A: Is the cutoff frequency of the product Number-of-Bits-per-Element?
Q: Yes, the product's Number-of-Bits-per-Element is indeed 8
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 70 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is 0 C.
A: What is the Polarity of the product?
Q: The Polarity of the product is Non-Inverting.
A: Is the cutoff frequency of the product Supply-Voltage-Max?
Q: Yes, the product's Supply-Voltage-Max is indeed 5.25 V
A: At what frequency does the Supply-Voltage-Min?
Q: The product Supply-Voltage-Min is 4.75 V.
A: At what frequency does the Logic-Family?
Q: The product Logic-Family is 74LS.
A: What is the Propagation-Delay-Time of the product?
Q: The Propagation-Delay-Time of the product is 36 ns.
A: Is the cutoff frequency of the product Output-Level?
Q: Yes, the product's Output-Level is indeed TTL
A: What is the Input-Level of the product?
Q: The Input-Level of the product is TTL.
A: At what frequency does the High-Level-Output-Current?
Q: The product High-Level-Output-Current is - 15 mA.
A: Is the cutoff frequency of the product Low-Level-Output-Current?
Q: Yes, the product's Low-Level-Output-Current is indeed 24 mA
