SN74LS688N

SN74LS688N Overview

Product belongs to the 74LS series. This product is categorized as Digital Comparators Type: Identity Comparator Tube Alternate Packaging is the packaging method for this product Weight of 0.042297 oz Through Hole Mounting-Style PDIP-20 Operational temperature range: 0°C ~ 70°C Through Hole mounting type Output-Type: Active Low Voltage Supply Range: 4.85 V ~ 5.25 V The Active Low. 8 bits The A=B of this product includes /OverTemp and /UnderTemp signals. Maximum operating temperature of + 70 C Minimum operating temperature: - 40 C Maximum supply current: 65 mA Maximum supply voltage of 5.25 V Minimum supply voltage is 4.85 V Magnitude/Identity comparator type 23 ns is 23 microseconds. A = B logic function

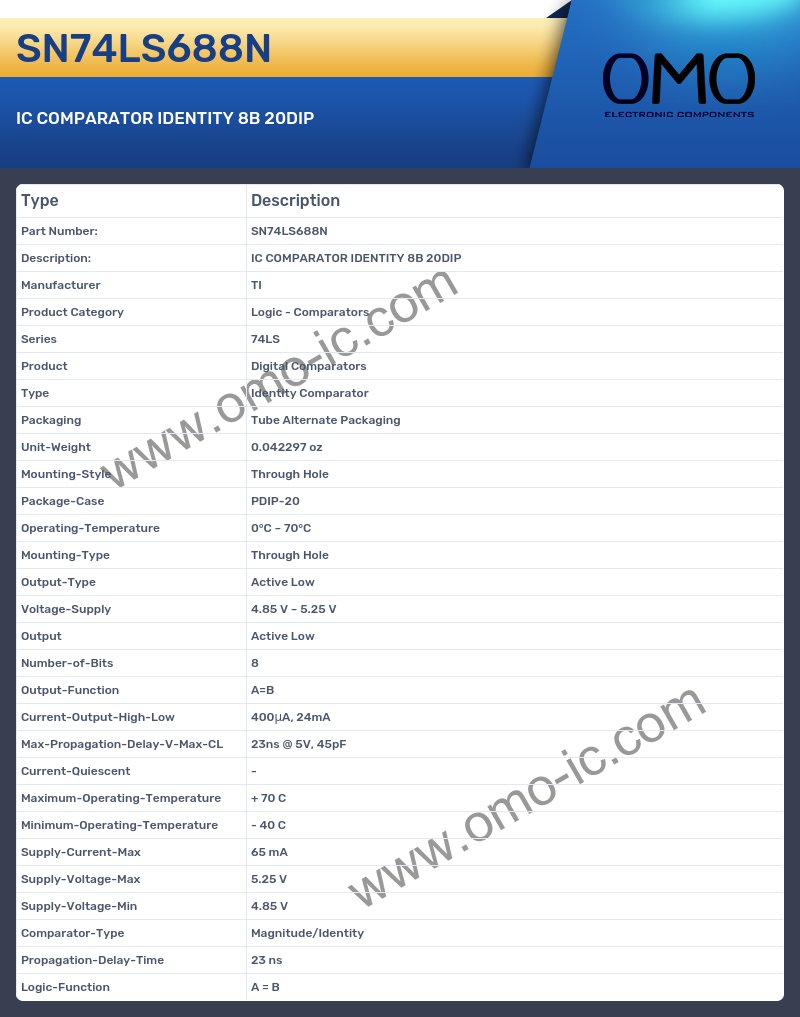

SN74LS688N Image

SN74LS688N Specifications

• Manufacturer TI
• Product Category Logic - Comparators
• Series 74LS
• Product Digital Comparators
• Type Identity Comparator
• Packaging Tube Alternate Packaging
• Unit-Weight 0.042297 oz
• Mounting-Style Through Hole
• Package-Case PDIP-20
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Through Hole
• Output-Type Active Low
• Voltage-Supply 4.85 V ~ 5.25 V
• Output Active Low
• Number-of-Bits 8
• Output-Function A=B
• Current-Output-High-Low 400μA, 24mA
• Max-Propagation-Delay-V-Max-CL 23ns @ 5V, 45pF
• Current-Quiescent -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature - 40 C
• Supply-Current-Max 65 mA
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.85 V
• Comparator-Type Magnitude/Identity
• Propagation-Delay-Time 23 ns
• Logic-Function A = B
