| Mfr. #: | SN74LS76AN |
|---|---|
| メーカー: | Texas Instruments |
| 説明: | IC FF JK TYPE DUAL 1BIT 16DIP |
| ライフサイクル: | メーカー新製品 |
| データシート: | SN74LS76AN データシート |
Product belongs to the - series. Tube is the packaging method for this product Product Obsolete Product function is Set(Preset) and Reset. Type: JK Type Output Type is Differential 2-elemented 1 Number of Bits per Element The 45MHz Clock Frequency; The Maximum Propagation Delay at V and Maximum CL is 20ns @ 5V, 15pF. Negative Edge triggered 400A, 8mA Current Output High and Low; The supply voltage is set to 4.75 V ~ 5.25 V. The 4mA Current - Quiescent (Iq) Operating Temperature of 0°C ~ 70°C (TA) This product has a Through Hole. Package type is 16-DIP (0.300", 7.62mm)
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

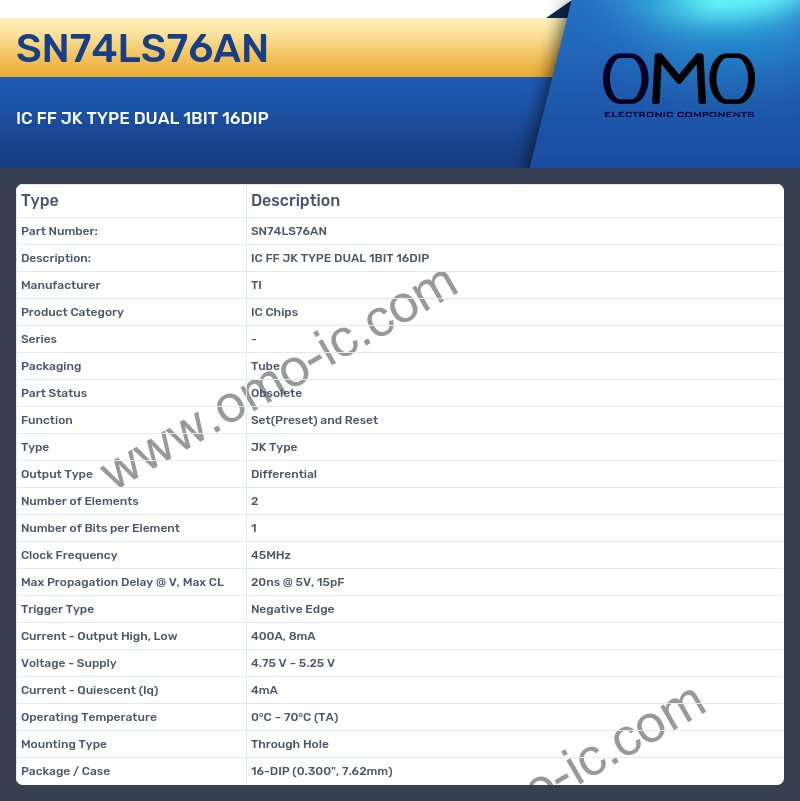

SN74LS76AN Specifications
