SN75150D

SN75150D Overview

Product belongs to the 75000 series. This product is categorized as RS-232 Drivers Type: Driver Tube Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Product function is Driver. Voltage Supply Range: 10.8 V ~ 13.2 V Supplier device package: 8-SOIC This product has a 2/0 number of drivers and receivers. Power-off control: Without Shutdown Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 12 V supply voltage for reliable performance. 20 mA is 92 nA. Output current: +/- 30 mA Number-of-Drivers: 2 Driver The product has 0 Receiver receivers. 60 ns is 23 microseconds.

SN75150D Image

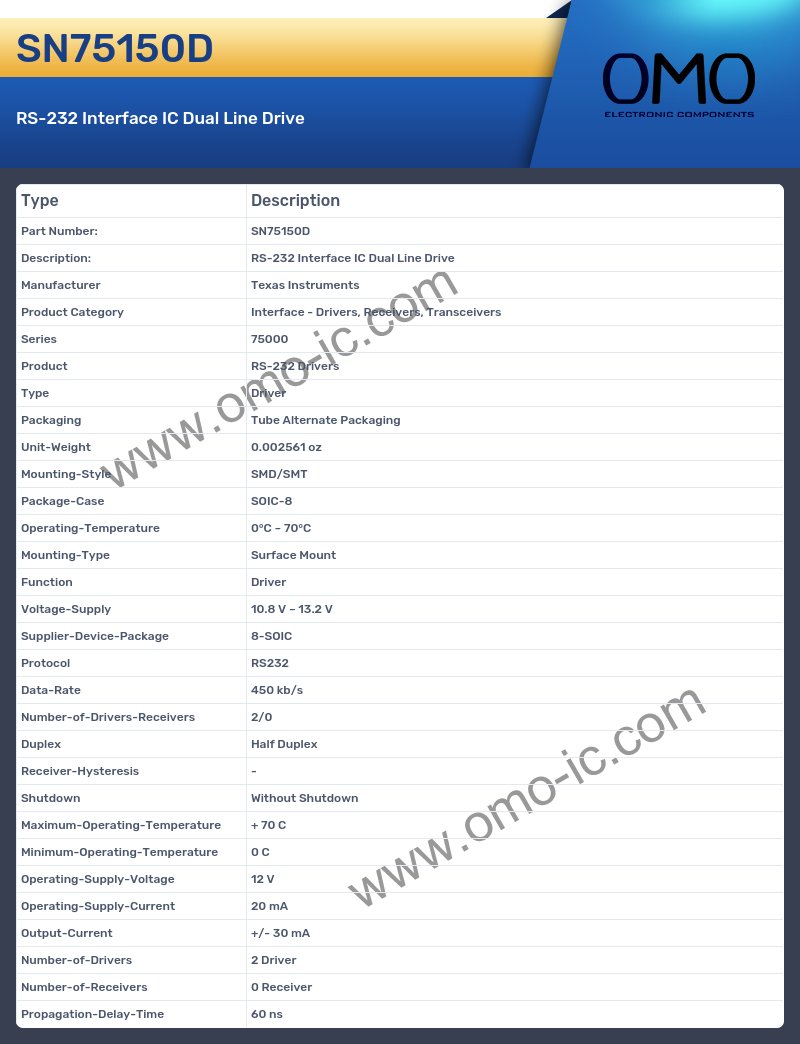

SN75150D Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Drivers, Receivers, Transceivers
• Series 75000
• Product RS-232 Drivers
• Type Driver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Function Driver
• Voltage-Supply 10.8 V ~ 13.2 V
• Supplier-Device-Package 8-SOIC
• Protocol RS232
• Data-Rate 450 kb/s
• Number-of-Drivers-Receivers 2/0
• Duplex Half Duplex
• Receiver-Hysteresis -
• Shutdown Without Shutdown
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 12 V
• Operating-Supply-Current 20 mA
• Output-Current +/- 30 mA
• Number-of-Drivers 2 Driver
• Number-of-Receivers 0 Receiver
• Propagation-Delay-Time 60 ns
