SN75C1406D Overview

Product belongs to the SN75C1406 series. This product is categorized as RS-232 Transceivers Type: Transceiver Tube Alternate Packaging is the packaging method for this product Weight of 0.004998 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Product function is Transceiver. Voltage Supply Range: 4.5 V ~ 15 V Supplier device package: 16-SOIC This product has a 2016/3/3 number of drivers and receivers. Power-off control: Without Shutdown Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 5 V supply voltage for reliable performance. 250 uA is 92 nA. Output current: 12 mA Number-of-Drivers: 3 Driver The product has 3 Receiver receivers.

SN75C1406D Image

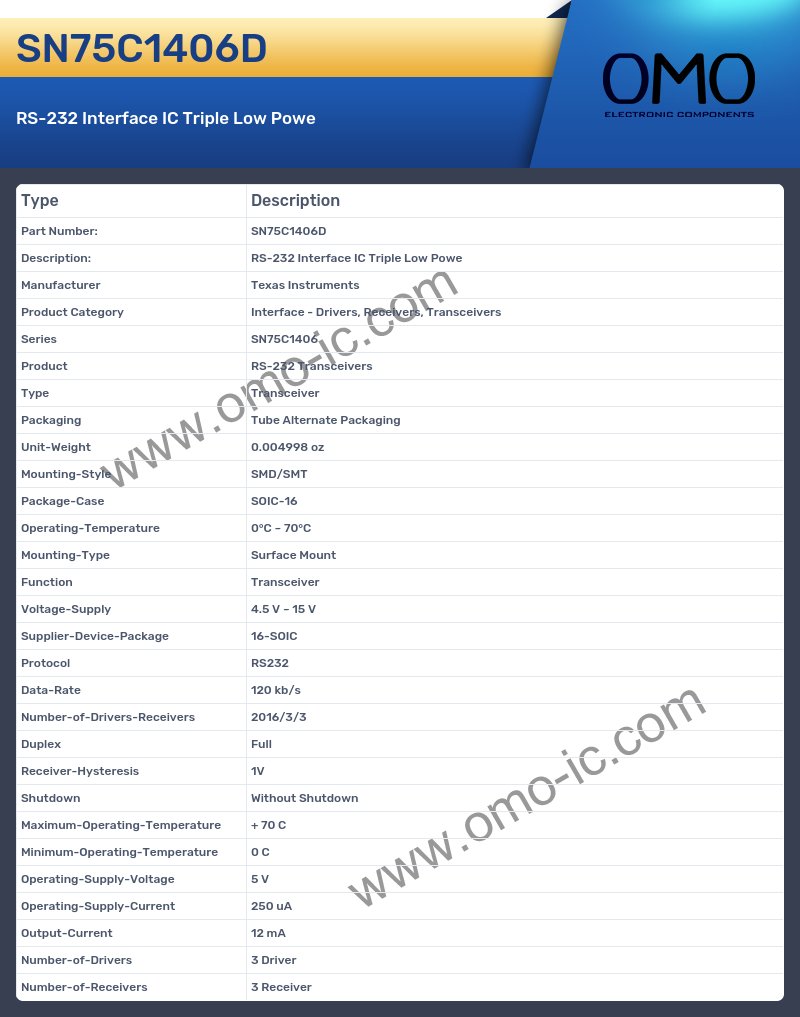

SN75C1406D Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Drivers, Receivers, Transceivers
• Series SN75C1406
• Product RS-232 Transceivers
• Type Transceiver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004998 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Function Transceiver
• Voltage-Supply 4.5 V ~ 15 V
• Supplier-Device-Package 16-SOIC
• Protocol RS232
• Data-Rate 120 kb/s
• Number-of-Drivers-Receivers 2016/3/3
• Duplex Full
• Receiver-Hysteresis 1V
• Shutdown Without Shutdown
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 5 V
• Operating-Supply-Current 250 uA
• Output-Current 12 mA
• Number-of-Drivers 3 Driver
• Number-of-Receivers 3 Receiver
