ST2329BQTR

ST2329BQTR Overview

Product belongs to the ST2329 series. Type: Voltage Level Translators Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001344 oz SMD/SMT Mounting-Style QFN-8 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Open Drain, Tri-State Supplier device package: 8-QFN 1 is 8. This product uses Voltage Level as the translator type This product's Bidirectional 2 Channels The product is designed to operate at 1.65 V ~ 3.6 V. The Voltage-VCCB is set at 1.8 V ~ 5.5 V. Power-off control: 500 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Maximum supply voltage of 3.6 V Minimum supply voltage is 1.65 V 2 ns is 23 microseconds.

ST2329BQTR Image

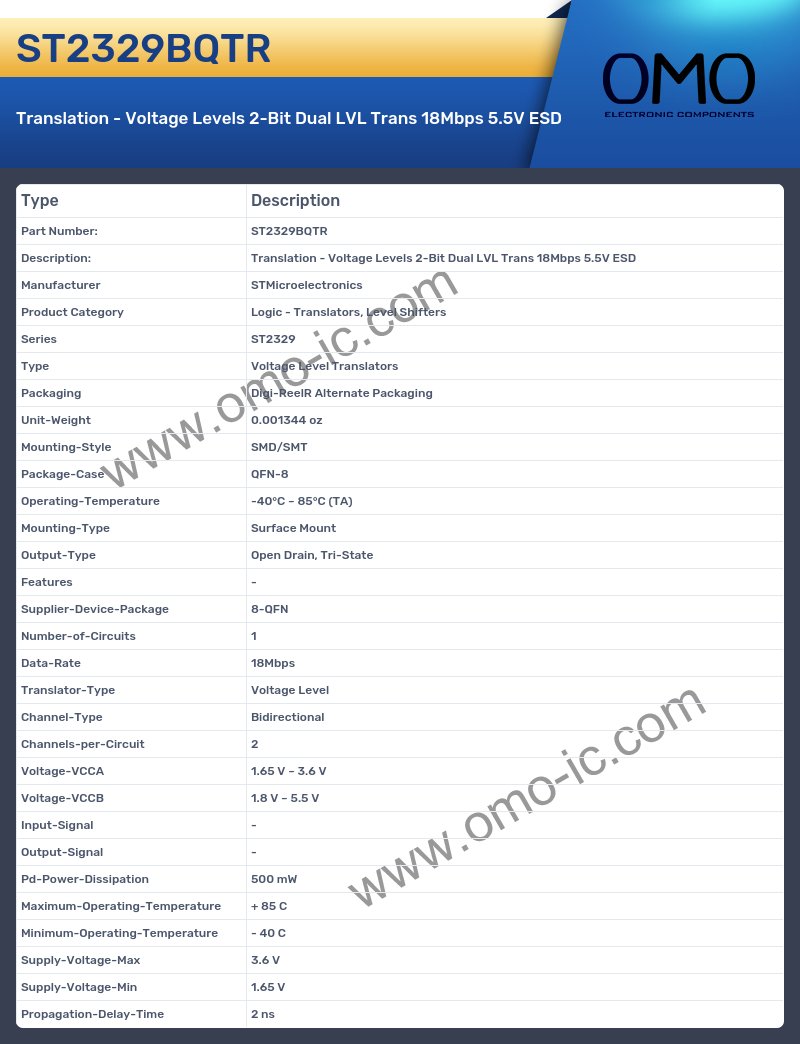

ST2329BQTR Specifications

• Manufacturer STMicroelectronics
• Product Category Logic - Translators, Level Shifters
• Series ST2329
• Type Voltage Level Translators
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001344 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Open Drain, Tri-State
• Features -
• Supplier-Device-Package 8-QFN
• Number-of-Circuits 1
• Data-Rate 18Mbps
• Translator-Type Voltage Level
• Channel-Type Bidirectional
• Channels-per-Circuit 2
• Voltage-VCCA 1.65 V ~ 3.6 V
• Voltage-VCCB 1.8 V ~ 5.5 V
• Input-Signal -
• Output-Signal -
• Pd-Power-Dissipation 500 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 1.65 V
• Propagation-Delay-Time 2 ns
