| Mfr. #: | ST2L05R3300PS |
|---|---|
| メーカー: | STMicroelectronics |
| 説明: | IC REG LINEAR POS ADJ 1A/1A 8DFN |
| ライフサイクル: | メーカー新製品 |
| データシート: | ST2L05R3300PS データシート |
Product belongs to the ST2L05 series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style DFN-EP-8 Operational temperature range: 0°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Fixed Supplier device package: 8-DFN (5x6) 4.5 V ~ 7 V voltage input Number-of-Outputs: 2 Output Output voltage: 3.3V, 1.25 V ~ 5.7 V Positive Fixed and Adjustable regulator topology The product has 2 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: 0 C Output voltage: 1.25 V to 5.7 V/3.3 V Maximum Input Voltage: 7 V Output current: 1 A The product's + 4.5 V is 5.1 V. Load regulation is 0.4 %. The voltage regulation accuracy of this product is 2 %. This product has a 5 mA of 7 mA, making it ideal for low-power applications. Reference voltage is 1.275 V . The 1.1 V at 1 A. The maximum 1.3 V at 1 A is 360 mV. This product's 0.35 % is 0.01 %/V.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

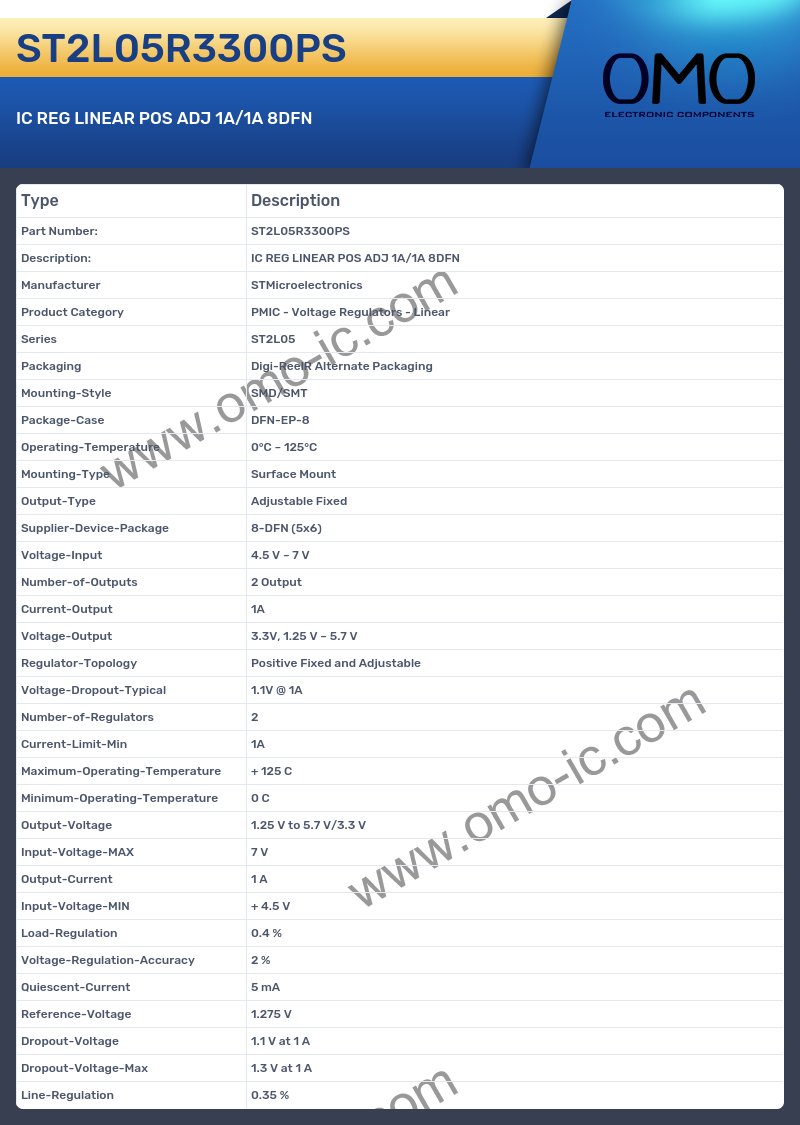

ST2L05R3300PS Specifications
