ST72F324J4B6

ST72F324J4B6 Overview

Product belongs to the ST7 series. Tube is the packaging method for this product Weight of 0.228812 oz Through Hole Mounting-Style SPDIP-56 Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: * This product has 32 I/O ports for versatile connectivity. Operating frequency: 8MHz Program memory type: FLASH SCI, SPI interface Supply Voltage: 3.8 V ~ 5.5 V 8-Bit architecture Internal oscillator type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 3.8 V to 5.5 V supply voltage for reliable performance. SCI SPI interface type Processor Core: ST7 This product is powered by the ST72F3x Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 5.5 V Minimum supply voltage is 3.8 V Maximum clock frequency of 8 MHz Number of ADC Channels: 12 This product has 32 I/O connections. This product has a 512 B data RAM size, providing ample storage for complex applications. This product features 4 Timer number of timers and counters. This product features a high-precision 10 bit, ensuring accurate data conversion. The Flash Data-ROM-Type ensures non-volatile memory storage.

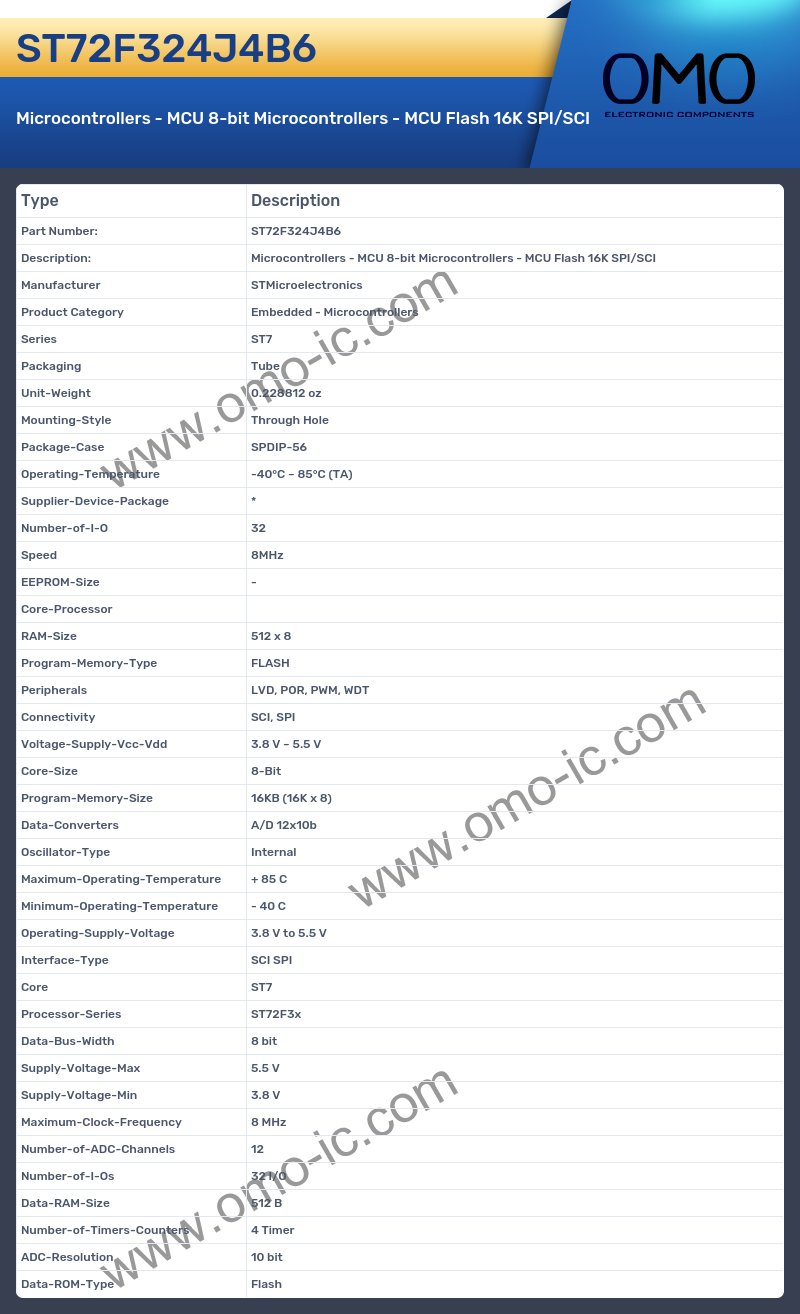

ST72F324J4B6 Image

ST72F324J4B6 Specifications

• Manufacturer STMicroelectronics
• Product Category Embedded - Microcontrollers
• Series ST7
• Packaging Tube
• Unit-Weight 0.228812 oz
• Mounting-Style Through Hole
• Package-Case SPDIP-56
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package *
• Number-of-I-O 32
• Speed 8MHz
• EEPROM-Size -
• Core-Processor
• RAM-Size 512 x 8
• Program-Memory-Type FLASH
• Peripherals LVD, POR, PWM, WDT
• Connectivity SCI, SPI
• Voltage-Supply-Vcc-Vdd 3.8 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 16KB (16K x 8)
• Data-Converters A/D 12x10b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3.8 V to 5.5 V
• Interface-Type SCI SPI
• Core ST7
• Processor-Series ST72F3x
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 3.8 V
• Maximum-Clock-Frequency 8 MHz
• Number-of-ADC-Channels 12
• Number-of-I-Os 32 I/O
• Data-RAM-Size 512 B
• Number-of-Timers-Counters 4 Timer
• ADC-Resolution 10 bit
• Data-ROM-Type Flash
