STB120N4LF6

STB120N4LF6 Overview

Product belongs to the N-channel STripFET series. Reel is the packaging method for this product Weight of 0.139332 oz SMD/SMT Mounting-Style TO-252-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 110 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product's +/- 20 V. The ID of continuous drain current is 80 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 40 V. This product has a 1 V to 2.5 V Vgs-th gate-source threshold voltage for efficient power management. The 4 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. Qg-Gate-Charge is 80 nC.

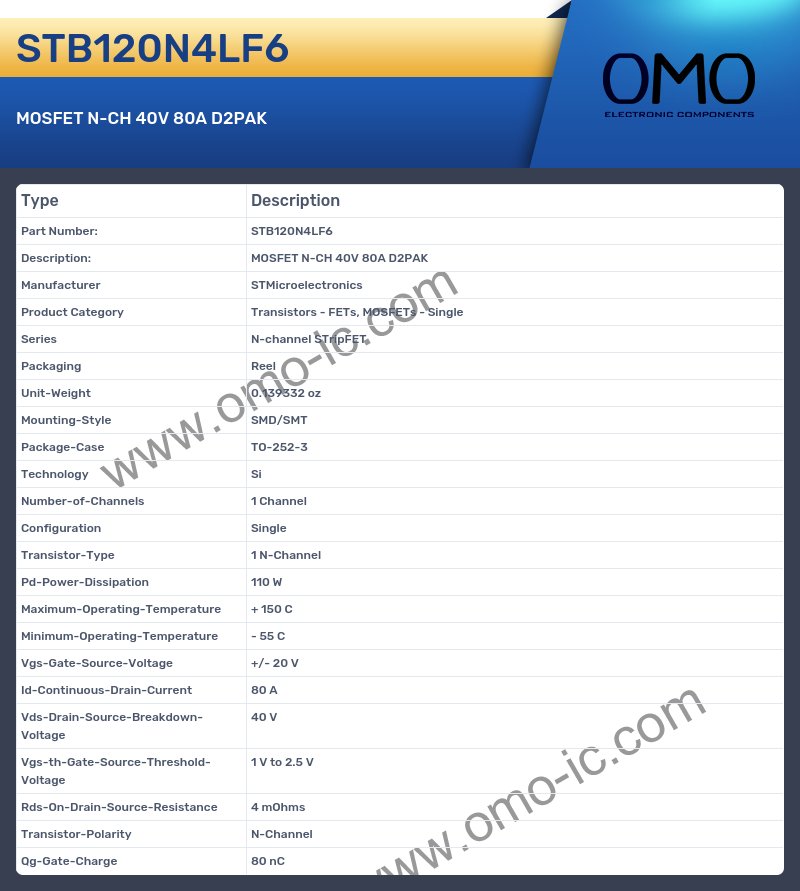

STB120N4LF6 Image

STB120N4LF6 Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - FETs, MOSFETs - Single
• Series N-channel STripFET
• Packaging Reel
• Unit-Weight 0.139332 oz
• Mounting-Style SMD/SMT
• Package-Case TO-252-3
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 110 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Vgs-Gate-Source-Voltage +/- 20 V
• Id-Continuous-Drain-Current 80 A
• Vds-Drain-Source-Breakdown-Voltage 40 V
• Vgs-th-Gate-Source-Threshold-Voltage 1 V to 2.5 V
• Rds-On-Drain-Source-Resistance 4 mOhms
• Transistor-Polarity N-Channel
• Qg-Gate-Charge 80 nC
