STB19NF20

STB19NF20 Overview

Product belongs to the N-channel STripFET series. Reel is the packaging method for this product Weight of 0.139332 oz SMD/SMT Mounting-Style TO-252-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 90 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 11 ns of 16 ns. This product has a 22 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 15 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 200 V. The 160 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 19 ns This product has a 11.5 ns. This product operates in Enhancement channel mode for optimal performance.

STB19NF20 Image

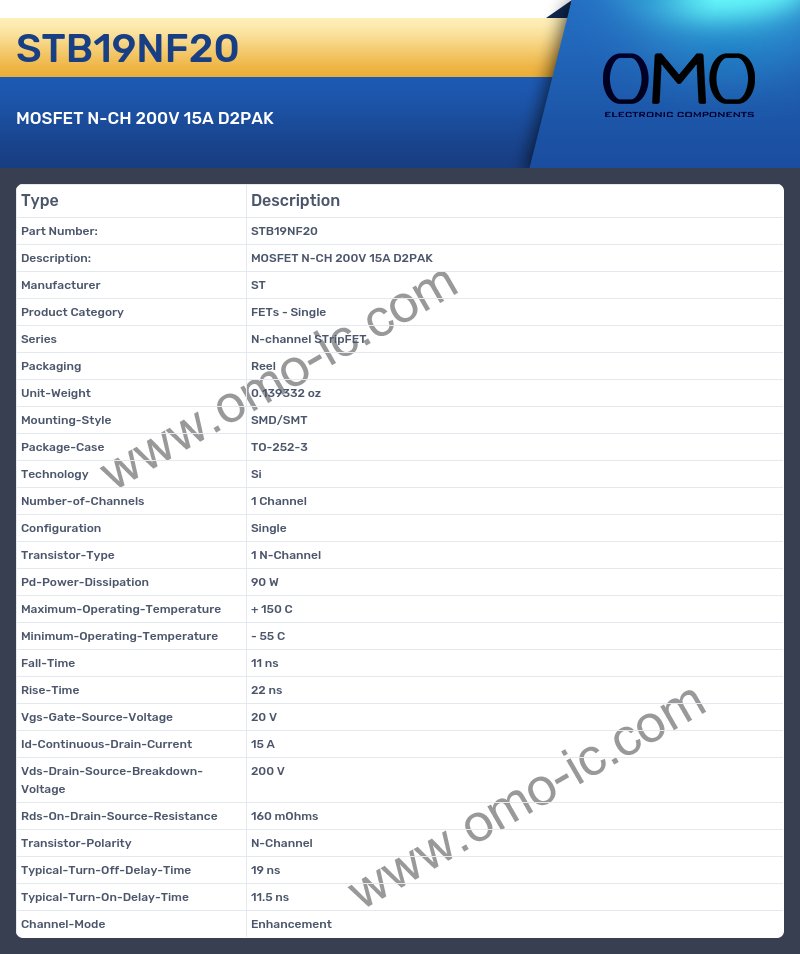

STB19NF20 Specifications

• Manufacturer ST
• Product Category FETs - Single
• Series N-channel STripFET
• Packaging Reel
• Unit-Weight 0.139332 oz
• Mounting-Style SMD/SMT
• Package-Case TO-252-3
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 90 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 11 ns
• Rise-Time 22 ns
• Vgs-Gate-Source-Voltage 20 V
• Id-Continuous-Drain-Current 15 A
• Vds-Drain-Source-Breakdown-Voltage 200 V
• Rds-On-Drain-Source-Resistance 160 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 19 ns
• Typical-Turn-On-Delay-Time 11.5 ns
• Channel-Mode Enhancement
