STC03DE170HP

STC03DE170HP Overview

Product belongs to the ESBTR series. Tube is the packaging method for this product Through Hole Mounting-Style The 3A. TO-247-4 Through Hole mounting type Rated voltage range of 1700V (1.7kV) Versatile Gate Driver applications for maximum usability Supplier device package: TO-247-4L Configuration Single Transistor type: NPN - Emitter Switched Bipolar Power-off control: 35.7 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Rated VCEO up to - The transistor polarity is NPN. Max DC collector current: 6 A Gain-Bandwidth-Product: 150 kHz This product is capable of handling a 3 A continuous collector current. Minimum hfe for DC collector-base gain is 5.

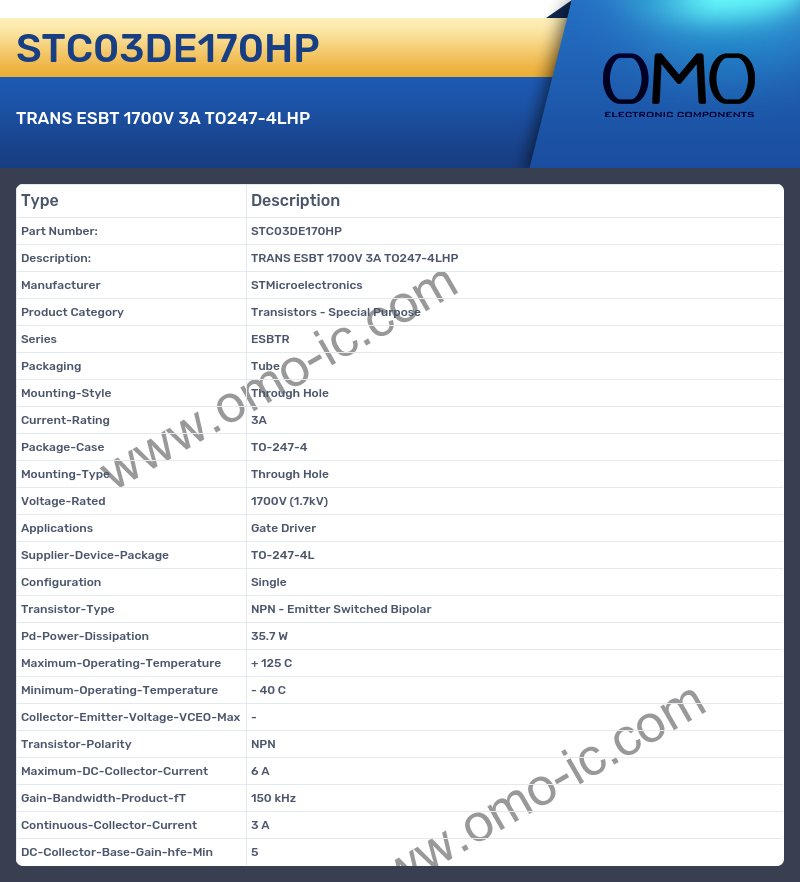

STC03DE170HP Image

STC03DE170HP Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - Special Purpose
• Series ESBTR
• Packaging Tube
• Mounting-Style Through Hole
• Current-Rating 3A
• Package-Case TO-247-4
• Mounting-Type Through Hole
• Voltage-Rated 1700V (1.7kV)
• Applications Gate Driver
• Supplier-Device-Package TO-247-4L
• Configuration Single
• Transistor-Type NPN - Emitter Switched Bipolar
• Pd-Power-Dissipation 35.7 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Collector-Emitter-Voltage-VCEO-Max -
• Transistor-Polarity NPN
• Maximum-DC-Collector-Current 6 A
• Gain-Bandwidth-Product-fT 150 kHz
• Continuous-Collector-Current 3 A
• DC-Collector-Base-Gain-hfe-Min 5
