STD1802T4-A

STD1802T4-A Overview

Product belongs to the 500V Transistors series. Reel is the packaging method for this product Weight of 0.063493 oz SMD/SMT Mounting-Style TO-252 Configuration Single Power-off control: 15000 mW Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 60 V The transistor polarity is NPN. The 80 V voltage rating is 40 V. 6 V rating of 5 V Max DC collector current: 3 A Gain-Bandwidth-Product: 150 MHz Minimum hfe for DC collector-base gain is 200 at 100 mA at 2 V 100 at 3 A at 2 V. 200 of 605.

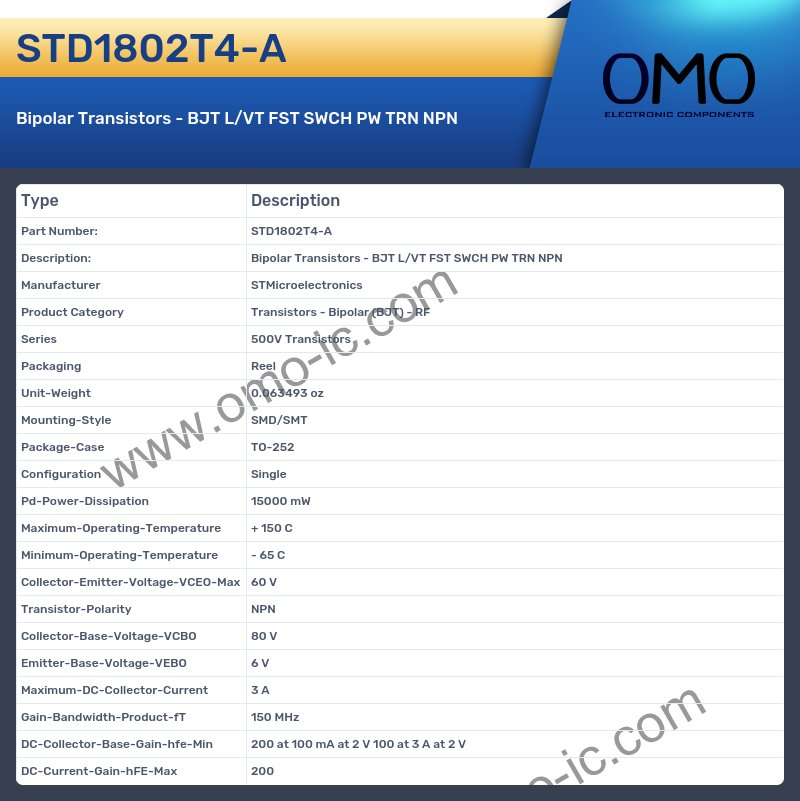

STD1802T4-A Image

STD1802T4-A Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - Bipolar (BJT) - RF
• Series 500V Transistors
• Packaging Reel
• Unit-Weight 0.063493 oz
• Mounting-Style SMD/SMT
• Package-Case TO-252
• Configuration Single
• Pd-Power-Dissipation 15000 mW
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max 60 V
• Transistor-Polarity NPN
• Collector-Base-Voltage-VCBO 80 V
• Emitter-Base-Voltage-VEBO 6 V
• Maximum-DC-Collector-Current 3 A
• Gain-Bandwidth-Product-fT 150 MHz
• DC-Collector-Base-Gain-hfe-Min 200 at 100 mA at 2 V 100 at 3 A at 2 V
• DC-Current-Gain-hFE-Max 200
