| Mfr. #: | STD2805T4 |
|---|---|
| メーカー: | STMicroelectronics |
| 説明: | Bipolar Transistors - BJT LV fast-switching PNP power trans |
| ライフサイクル: | メーカー新製品 |
| データシート: | STD2805T4 データシート |
Product belongs to the STD2805 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.009185 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 Surface Mount mounting type Supplier device package: D-Pak Configuration Single Transistor type: PNP Maximum current collector Ic is 5A . Maximum collector-emitter breakdown voltage of 60V DC current gain minimum (hFE) of Ic/Vce at 200 @ 100mA, 2V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 600mV @ 200mA, 5A Power-off control: 15000 mW Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 60 V The transistor polarity is PNP. The 60 V voltage rating is 40 V. 6 V rating of 5 V Max DC collector current: 5 A Gain-Bandwidth-Product: 150 MHz Minimum hfe for DC collector-base gain is 200.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

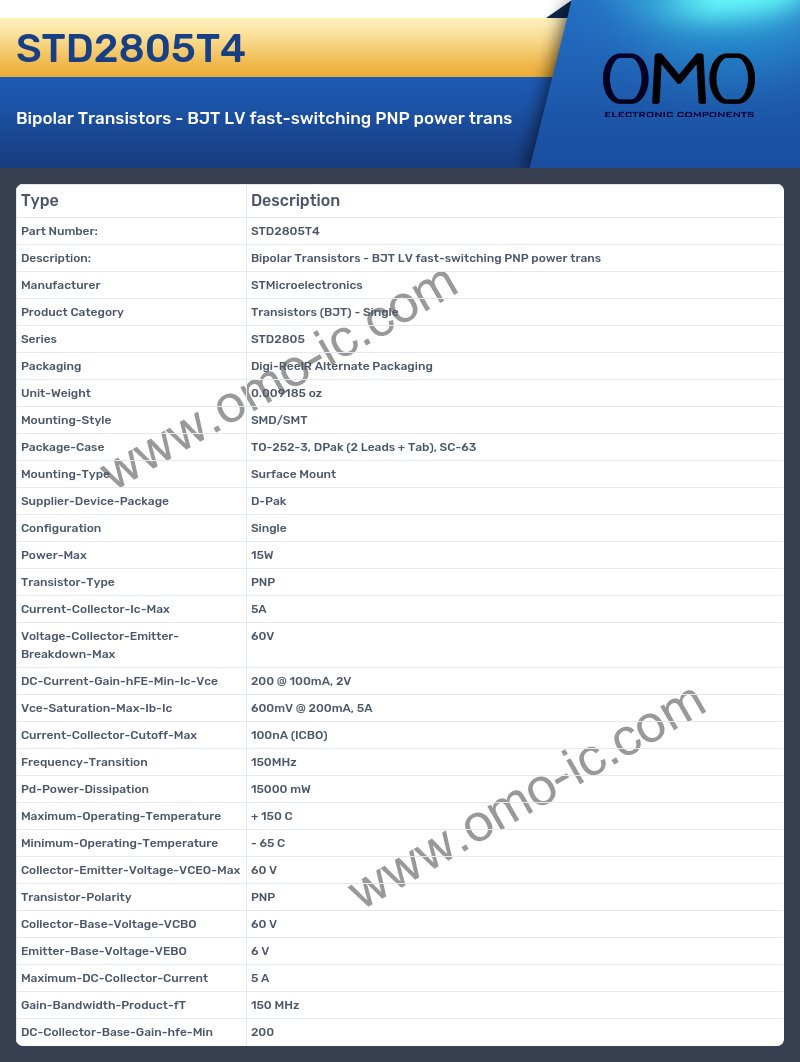

STD2805T4 Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed STD2805
A: What is the Packaging of the product?
Q: The Packaging of the product is Digi-ReelR Alternate Packaging.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.009185 oz
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-252-3, DPak (2 Leads + Tab), SC-63.
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Surface Mount
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is D-Pak.
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: What is the Transistor-Type of the product?
Q: The Transistor-Type of the product is PNP.
A: Is the cutoff frequency of the product Current-Collector-Ic-Max?
Q: Yes, the product's Current-Collector-Ic-Max is indeed 5A
A: What is the Voltage-Collector-Emitter-Breakdown-Max of the product?
Q: The Voltage-Collector-Emitter-Breakdown-Max of the product is 60V.
A: What is the DC-Current-Gain-hFE-Min-Ic-Vce of the product?
Q: The DC-Current-Gain-hFE-Min-Ic-Vce of the product is 200 @ 100mA, 2V.
A: At what frequency does the Vce-Saturation-Max-Ib-Ic?
Q: The product Vce-Saturation-Max-Ib-Ic is 600mV @ 200mA, 5A.
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 15000 mW.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 150 C
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 65 C.
A: Is the cutoff frequency of the product Collector-Emitter-Voltage-VCEO-Max?
Q: Yes, the product's Collector-Emitter-Voltage-VCEO-Max is indeed 60 V
A: Is the cutoff frequency of the product Transistor-Polarity?
Q: Yes, the product's Transistor-Polarity is indeed PNP
A: At what frequency does the Collector-Base-Voltage-VCBO?
Q: The product Collector-Base-Voltage-VCBO is 60 V.
A: Is the cutoff frequency of the product Emitter-Base-Voltage-VEBO?
Q: Yes, the product's Emitter-Base-Voltage-VEBO is indeed 6 V
A: Is the cutoff frequency of the product Maximum-DC-Collector-Current?
Q: Yes, the product's Maximum-DC-Collector-Current is indeed 5 A
A: At what frequency does the Gain-Bandwidth-Product-fT?
Q: The product Gain-Bandwidth-Product-fT is 150 MHz.
A: Is the cutoff frequency of the product DC-Collector-Base-Gain-hfe-Min?
Q: Yes, the product's DC-Collector-Base-Gain-hfe-Min is indeed 200
