STD30NF03LT4

STD30NF03LT4 Overview

Product belongs to the STripFET II series. Tape & Reel (TR) is the packaging method for this product Weight of 0.139332 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 Si is the technology used. Operational temperature range: -65°C ~ 175°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: D-Pak Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 30V This product has an 830pF @ 25V value of 300pF @ 25V. This product's Standard. 30A (Tc) continuous drain-ID current at 25°C; This product has an 25 mOhm @ 15A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 50 W Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C This product has a 240 ns of 16 ns. This product has a 205 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 30 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 30 V. The 20 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 90 ns This product has a 35 ns. This product features a 13 S of 500 S for high performance. This product operates in Enhancement channel mode for optimal performance.

STD30NF03LT4 Image

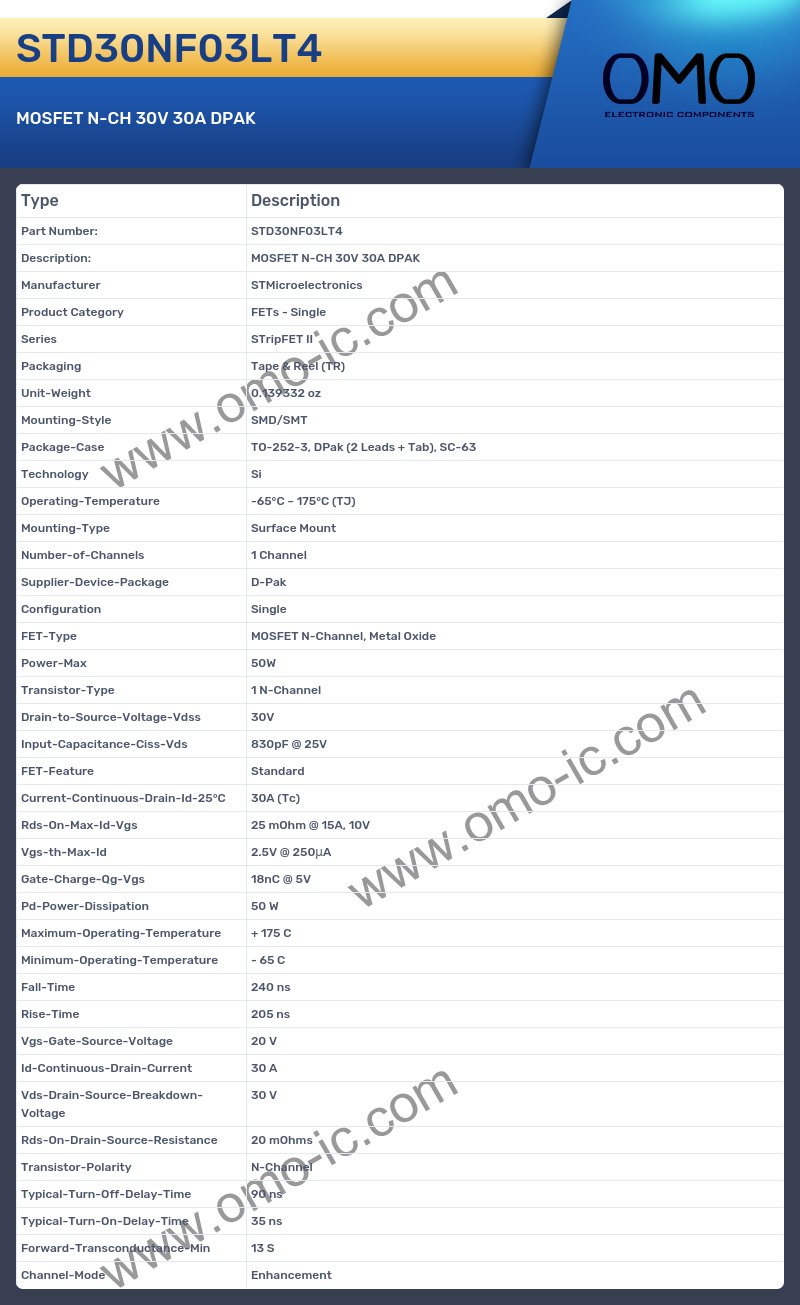

STD30NF03LT4 Specifications

• Manufacturer STMicroelectronics
• Product Category FETs - Single
• Series STripFET II
• Packaging Tape & Reel (TR)
• Unit-Weight 0.139332 oz
• Mounting-Style SMD/SMT
• Package-Case TO-252-3, DPak (2 Leads + Tab), SC-63
• Technology Si
• Operating-Temperature -65°C ~ 175°C (TJ)
• Mounting-Type Surface Mount
• Number-of-Channels 1 Channel
• Supplier-Device-Package D-Pak
• Configuration Single
• FET-Type MOSFET N-Channel, Metal Oxide
• Power-Max 50W
• Transistor-Type 1 N-Channel
• Drain-to-Source-Voltage-Vdss 30V
• Input-Capacitance-Ciss-Vds 830pF @ 25V
• FET-Feature Standard
• Current-Continuous-Drain-Id-25°C 30A (Tc)
• Rds-On-Max-Id-Vgs 25 mOhm @ 15A, 10V
• Vgs-th-Max-Id 2.5V @ 250μA
• Gate-Charge-Qg-Vgs 18nC @ 5V
• Pd-Power-Dissipation 50 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Fall-Time 240 ns
• Rise-Time 205 ns
• Vgs-Gate-Source-Voltage 20 V
• Id-Continuous-Drain-Current 30 A
• Vds-Drain-Source-Breakdown-Voltage 30 V
• Rds-On-Drain-Source-Resistance 20 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 90 ns
• Typical-Turn-On-Delay-Time 35 ns
• Forward-Transconductance-Min 13 S
• Channel-Mode Enhancement
